Biological Systems: Open Access

Renal transplantation has the greatest potential for improving quality of life in patients with end-stage renal failure compared with other means of renal replacement therapy. As of 31st March 2014, there were 5881 patients active on the renal transplant waiting list in the UK. Conversely, between 2013 and 2014, there have been 2142 deceased renal donor transplants, and 1114 living donor transplants in the UK [1]. This discrepancy between demand and the availability of donors has driven a variety of means of increasing the size of the living donor pool.

One such means has been by overcoming the immunological barrier of ABO blood group -incompatibility. Historically, ABO-incompatible renal transplants were only possible after splenectomy, multiple sessions of unselective plasmapheresis, and potent immunosuppressive protocols. This was associated with significant morbidity and mortality. A new protocol for ABO-incompatible renal transplants was introduced in Sweden in 2001, involving antigen specific immunoadsorption, Rituximab, and conventional Tacrolimus, Mycophenolate Mofetil (MMF), and Prednisolone immunosuppression [2]. This has been found to be effective with no graft losses attributable to ABO-incompatibility, and no rebound of antibodies. It has also been reported as being safe, with few complications resulting from the immunosuppressive regimen [3,4].

Our transplant network has been performing ABO-incompatible renal transplants using the Swedish protocol with good outcome. However, it has become apparent that the immunosuppression protocol, particularly the immunoadsorption process, is associated with certain haematological complications that have been under-reported thus far. This article reports some problems that we have encountered, and the solutions that we have adopted.

Five ABO-incompatible renal transplants with a mean of age 51.8 years (SD 3.7) were performed in our unit between September 2009 and February 2011 (Table 1). Our immunosuppression protocol for the recipient closely followed the Swedish protocol: 375mg/m2 of Rituximab was given intravenously 30 days before transplant in an outpatient setting, after blood is taken for a final cross-match. 10 days prior to transplant, Tacrolimus (Prograf) was started at a daily dose of 0.2 mg/kg orally, aiming for a trough Tacrolimus blood concentration of 10-15 ng/mL, for the first month after transplantation. MMF 1g twice daily and Prednisolone 30 mg daily was also started at this time. Six, 5, 2, and 1 day prior to transplant, the recipients underwent immunoadsorption using Glycosorb columns (Glycorex Transplantation AB, Lund, Sweden) and the HF440 extracorporeal filtration device (L.IN.C. Medical Systems Ltd, Loddington, UK) to remove IgG and IgM antibodies against the ABO group of the potential donor. Heparin was used for the extracorporeal circuit and filter of the HF440 device. Acid-citrate dextrose was used during plasma adsorption as a local anticoagulant for the Glycorex column. Anti-A/B titers were checked before and after each apheresis session to monitor the decline. On the final day prior to transplant, 0.5g/kg of intravenous pooled human immunoglobulin (IVIG) was given after the last apheresis session. Anti-A/B titres were checked urgently one final time on the morning of transplantation. If the titers were less that or equal to 1 in 8, the transplant was carried out. If they were greater than 1 in 8, then transplantation was postponed and more apheresis sessions performed.

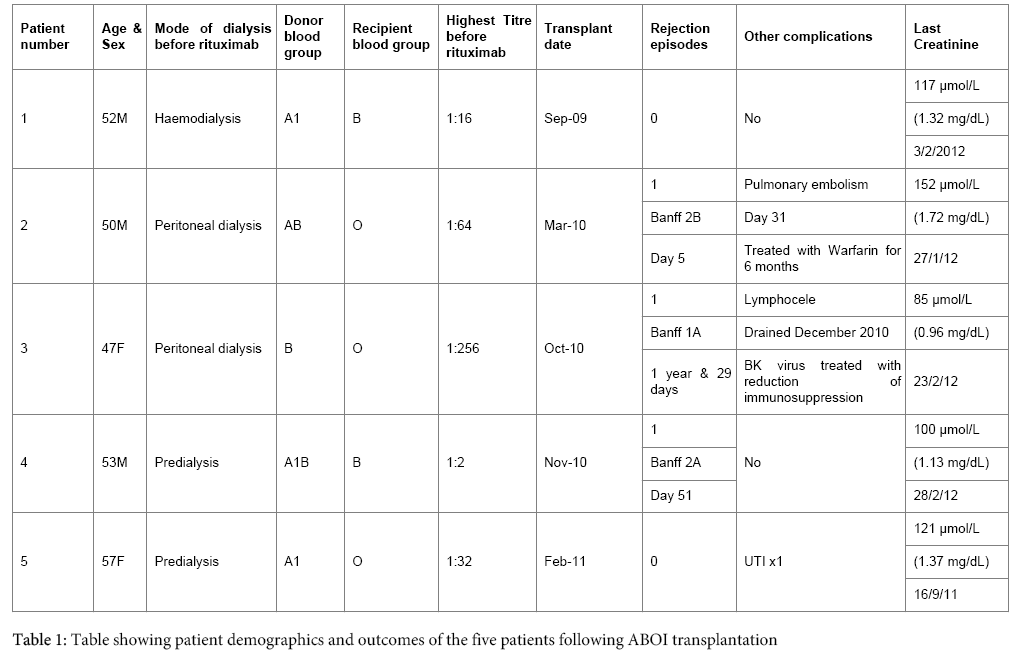

Table 1: Table showing patient demographics and outcomes of the five patients following ABOI transplantation

Our policy for blood product transfusion in recipients of ABO-incompatible renal transplant is as follows: In emergency situations, we use high titer negative red cell units which are ABO/D compatible with the recipient, high titer negative platelet units which are ABO compatible with the donor, and type AB fresh frozen plasma. In all other situations, we use washed red cells which are ABO/D compatible with the recipient, platelets in platelet suspension medium which are ABO compatible with the recipient, and type AB fresh frozen plasma.

We found that 2 of the 5 patients had a drop in haemoglobin from a maximum of 10.3 g/dL and 10.2 g/dL at the time of immunoadsorption to 8.7 g/dL and 8.3 g/dL on the morning of transplantation. Therefore, two units of washed red cells were given to each patient at time of surgery, as per our protocol.

One patient had a drop in platelet count from 118 x 109 /L before immunoadsorption to 74 x 109 on the morning of transplantation. This patient had only had 2 sessions of immunoadsorption prior to surgery as his titers were low. His PF4 heparin antibody for heparin induced thrombocytopaenia returned as weakly positive. He was given 2 units of platelets in platelet suspension medium at the time of transplantation.

We also observed that there was a significant rise in white blood cell counts after most immunoadsorption sessions. The highest rise was from 15 x 109 /L to 39 x 109/L after a single session, and the rise was mainly a neutrophilia. However, all rises in white cell counts were transient.

Four transplants proceeded uneventfully with no post-operative rises in ABO antibody titers. The second recipient (patient 2), who had not required any blood products pre-operatively, experienced an episode of acute vascular rejection that required treatment with antithymocyte globulin. Patients 3 and 4 also had an episode of rejection each that required methylprednisolone. None of these were related to blood group antibodies. All grafts are currently doing very well with a mean serum creatinine concentration of 115 µmol/L, SD 25.2, (1.28 mg/dL, SD 0.29) at a maximum follow up of 2 years and 5 months.

There were no bleeding problems encountered peri-operatively, and no clinically relevant rises in white blood cell counts after transplantation. There was one episode of BK virus in patient 3. This was detected after the first year on repeat biopsy following treatment of rejection. It was treated with reduction of immunosuppression. Patient 5 had a simple urinary track infection (UTI) that was treated with antibiotics as an outpatient.

The aim of an ABO-incompatible renal transplant programme is to increase the living donor pool, but this has to be balanced with the potential problems associated with ABO-incompatibility. Most studies so far have found the immunosuppression protocol for ABO-incompatible transplants involving a regime of immunoadsorption, rituximab, and conventional immunosuppression to be safe and free of serious side effects [5]. However, we have shown that haematological complications do exist, and may have been under-reported in other studies.

Despite the need for blood product transfusion in 3 of our 5 patients, our use of washed red cells and platelets in platelet suspension medium seemed to be successful in not transferring any ABO incompatible antibodies to the recipient peri-operatively, and thus avoided any problems with antibody mediated graft rejection. However, the increased cost and time required to prepare such blood products have to be taken into consideration. Each unit of washed red cells costs US$1100. The cost for a Glycosorb column for one immunoadsorption in ABO-incompatible transplantation is US$4400. Even so, it is worth noting that ABO-incompatible transplantation is still considered cost-effective when compared with the cost of long-term dialysis [6].

One way to help overcome the need for transfusions around the time of transplantation is by optimizing potential ABO-incompatible recipients with haemoglobin <10 g/dl with iron and erythropoietin stimulating agents prior to starting immunoadsorption.

It is also important to note that leucocytosis following sessions of immunoadsorption occurred in all patients but appeared to be transient and not related to clinical infection. It was previously shown in 2001 that subjects receiving immunoadsorption for the treatment of autoimmune disorders also showed neutrophil activation, and it was suggested that this activation might play some role in immune modulation [7].

Haematological complications occurring as a result of the immunosuppressive protocol used in ABO-incompatible renal transplants cannot be ignored, especially because the way in which they are managed can determine eventual graft success. We have shown in this paper that immunoadsorption has a number of effects on red cell count, white cell count, and platelet count, and can lead to the need for blood product transfusion prior to transplantation. The use of suitably prepared blood products at this time prevents transfer of incompatible antibodies, and allows transplantation to proceed without any increase in risk of graft rejection.

There was no financial support or relationships that pose conflict of interest by any of the authors. We would like to thank the Kidney Patient Association of St George’s Hospital, London, UK for their financial help in acquiring the HF440 extracorporeal filtration device (L.IN.C. Medical Systems Ltd, Loddington, UK) for the local patients.
