Inflammation is meant to re-establish a shift in the body’s homeostatic balance. Acute inflammation is the initial response to harmful stimuli and is achieved by the increased movement of plasma and leukocytes from blood into injured tissues concomitant with a cascade of biochemical events involving the systemic role of vascular and immune system and local role of other tissue specific cells within the injured tissue [1]. Prolonged inflammation or chronic inflammation, leads to a progressive shift in the type of cells present at the site of inflammation and is characterized by simultaneous destruction and healing of the tissue from the inflammatory process. This is characterized by concurrent active inflammation, tissue destruction, and attempts at repair. Chronically inflamed tissue sees infiltration of mononuclear immune cells (monocytes, macrophages, lymphocytes, and plasma cells), tissue destruction, and attempts at healing, which include angiogenesis and fibrosis [2].

Asthma and COPD differ significantly in their underlying etiology but involve similar inflammatory changes in the respiratory tract. While specific nature and reversibility of such processes differ in each stage, both are characterized by lung inflammation [3]. By 2020 India alone will account for 18% of the 8.4 million tobacco related deaths globally [4]. In China, COPD is one of the high frequency causes of death followed closely by Ischemic heart disease and cardiovascular disease [5].

Inflammation is therefore key to etiology of most respiratory disorders and while it is critical for the body’s defence against infections and tissue damage, it has increasingly become clear that there is a fine balance between the beneficial effects of inflammation cascades and potential for long term tissue destruction. Unregulated inflammation cascades lead to development of diseases such as chronic asthma, rheumatoid arthritis, psoriasis, multiple sclerosis and inflammatory bowel disease [6].

The specific characteristics of inflammatory response in each disease and site of inflammation may differ but recruitment and activation of inflammatory cells and changes in structural cells remain a universal feature. This is associated with increase in the expression of components of inflammatory cascade viz. cytokines, chemokines, growth factors, enzymes, receptors, adhesion molecules and other biochemical mediators.

The pathogenesis of allergic asthma involves the recruitment and activation of many inflammatory and structural cells, which release mediators causing typical pathological changes of asthma. Accumulation of inflammatory cells in the lung and airways, epithelial desquamation, goblet cell hyperplasia, mucus hypersecretion and thickening of submucosa resulting in bronchoconstriction and airway hyper responsiveness are important features of asthma [7,8]. Both cells from among the circulating leukocytes such as Th2 lymphocytes, mature plasma cells expressing IgE, eosinophils [8] and neutrophils as well as local resident and structural cells constituting the ‘respiratory membrane’ (airway epithelial cells, fibroblasts, resident macrophages, bronchial smooth muscle cells, mast cells etc.) contribute to the pathogenesis of asthma [9].

Inflammation in COPD is associated with an inflammatory infiltrate composed of eosinophils, macrophages, neutrophils, and CD8+ T lymphocytes in all lung compartments [9] along with various inflammatory mediators such as TNF-α, IL-8 (interleukin-8), LTB4 (Leucotriene B4), ET-1 (Endothelin-1) and increased expression of several adhesion molecules such as ICAM-1 [10]. Activation of transcription factors nuclear factor (NF)-κ Band activator protein-1 is key [11]. Acute exacerbations have a direct effect on disease progression by accelerating loss of lung functional though the inflammatory response at exacerbation is variable and may depend in part on the etiologic agent [12,13]. Current therapies for COPD exacerbations are of limited effectiveness [14].

The migration and adhesion of leucocyte during any inflammatory response is mediated by integrins trafficking. Integrins are heterodimeric transmembrane receptors which link the intracellular actin cytoskeleton to the cellular environment and serve as a receptor for extra cellular membrane (ECM). The heterodimer components (α- and β-subunits) are type I membrane proteins having a large extracellular domain and a short intracellular tail [15]. Integrin heterodimers can modulate their conformation depending upon the affinity for the present ligand i.e. bent or closed conformation, for that has a low affinity for ligand, or an extended or open conformation that has a high affinity for ligand. Due to conformational changes, integrins are able to signal bidirectionally across the membrane: ligand binding elicits signaling responses within the cell and binding of intracellular proteins to integrins positively regulates the activation of integrins to promote ligand-binding [15].

Rational treatment depends on understanding the underlying disease process and there have been recent advances in understanding the cellular and molecular mechanisms that may be involved [16]. Beyond the absence of curative therapy, current treatment options have inherent limitations, such as further complication by exacerbations, limitations of some orally available treatments and even refractoriness of the most effective treatment regimens such as inhaled corticosteroids (ICSs), long-acting beta2-agonists (LABAs), methylxanthines, leukotriene modifiers, cromones, and IgE blockers [17]. Targeting oxidative damage using antioxidants such as N-acetylcysteine has shown efficacy in chronic bronchitis [11] but is relatively ineffective in established COPD [18]. Targeting TNFα to ameliorate inflammation has also been disappointing [19,20]. The use of inhaled steroids combined with long-acting β2agonists to reduce exacerbation rates in more severe disease is now widely accepted, but their effects on mortality are still in doubt [21] and presently there are no effective strategies beyond smoking cessation to slow disease progression in horizon [22]. These data suggest that even relatively modest immunomodulators such as inhaled corticosteroids might further impact on local immunity already damaged by chronic inflammation and remodelling, rendering individuals to some degree more vulnerable to significant infections [23]. Key to effective COPD therapy is prevention of loss of alveolar smooth muscle elasticity which is irreversible by early diagnosis and more effective intervention which is currently virtually non-existent.

Leucocyte infiltration into bronchial in the bronchial mucosa results in airway hyper responsiveness contributing respiratory disease called asthma. Among leucocytes, neutrophils are the early emigrating cells in response to pro inflammatory signals and changes in the vasculature. Leucocyte migration is mainly mediated by a sequence of steps involving the integrins. The process of leukocyte migration includes formation of initial tethers and then rolls along the postcapillary venules. This process is mediated by the expression of L-selectin on the neutrophil membrane [24]. Then, the cell firmly adheres to and finally migrates through the endothelium. For firm adhesion, neutrophils use exclusively β2-(CD18) integrins, whereas other leucocytes such as lymphocytes use both α4 and β2 integrins [24]. In case of lung the migration of neutrophil is carried out independent of β2 integrins.

It is with an objective to identify targets that conventional therapy has obviously overlooked or under-rated, that the pattern of cellular traffic is being studied under various pathophysiological situations. A number of genetic knockout models of mice were used and tissue specific (lung) inflammation under asthmatic (Th1-driven) condition was explored and immune cell traffic from their site of poiesis to their site of pathophysiological manifestation were studied [25].

In our work with various genotype knockout models of mice, the data generated and interpreted from detailed analyses of cells traveling between bone marrow, peripheral blood, lung parenchyma, airways and the different secondary lymph organs or lymphoid tissues (cervical, axillary, inguinal, mesenteric lymph nodes and Peyer’s patch), we have detected some specific patterns. This is a report on the pattern of cellular traffic from which certain cell subsets were discernible to play rate limiting roles which have been presented along with comments on molecular implications of such directed movement of these key cell types. When specific molecules, critical for signaling the onset and/ or development and maintenance of pathophysiology of acute allergic asthma and the associated inflammatory changes, are absent, as in the genotype knockout models, cell trafficking is drastically altered. As apparent from the data presented in this paper, the pattern of cell traffic can actually be molecular signatures for diagnosis of molecular causes of etiology in particular pathological manifestations of acute allergic asthma.

The clear rationale for doing the work, that is meta-analysis of data and interpretation of cellular traffic are to understand-

1. when and which cells mobilize from the site of poiesis (primary lymphoid organs);

2. which cells are rate limiting for the sequence of steps required for onset, development, maintenance and exacerbation of acute asthma;

3. which residual cells come back from the focal region of inflammation to secondary lymphoid organs / tissues which may be critical for generating “central memory” cell pool;

4. Key diagnostic as well as therapeutic differentiators in the etiology of several respiratory diseases with similar clinical symptoms.

Information obtained shall be key to devising therapeutic/ prophylactic strategies by targeting small molecules (pharmacological intervention), cells (cell based therapy through tissue engineering), antibody induced neutralization or arrest of cell activation of specific cells (cell targeting) etc. for personalized and translational medical treatment. Unless specific targets are identified in a strict spatiotemporal format, interfering of a target leads to undesirable side effects or even fatality. As outlined in the initial paragraphs, there are patient populations which are refractory to some drugs. So even for designing combination therapy, the timing and targeting is important. The same cell may behave quite differently at different times of the disease onset. The same cell may express different cellular proteins or secrete soluble proteins in its milieu and such changes, rapid and occurring in sequence, are extremely critical information to catch the correct target and at the correct time. Work embodied in this paper attempts to elucidate just these nodes of information throughout in a cellular factory in a specific disease template, acute asthma.

Animals

C57BL6 mice were used as described previously [26-38]. Mxcre+α4 flox/flox mice were conditionally ablated by i.p. poly (I) poly (C) injection. cre- mice were used as WT(wild type) and α4 ablated mice were simply called α4-/-. CD18-/- mice on a C57BL6 background were called β2-/-. In total the following numbers of animals were used in each group: WT= 5 per experiment, +OVA= 5 per experiment, αa- /- = 5 per experiment, β2-/-= 5 per experiment, Rag2γC-/- (baseline) = 4 per experiment, Rag2γC-/- engrafted with WT BMC= 10 per experiment, Rag2γC-/- engrafted with α4-/- BMC= 10 per experiment. A total of three independent experiments for development and analyses of the OVA model and a total of four independent experiments for the engraftment and repopulation experiments in Rag2γC-/- mouse were performed. Data presented are mean ± SEM for all experiments and only p value less than 0.01 have been considered.

Experimental design for lymphopoiesis

10 million bone marrow cells in pre warmed HBSS were injected via tail vein in lethally irradiated (800cGY) to 6-8 weeks old Rag2γC-/- recipients and reconstitution was followed at 5 weeks, 10 weeks and 6 months. Tissues were collected post sacrifice to assess the type of donor-derived versus recipient’s own reconstituted cell types. In the repopulated animals, OVA-induced asthma was induced and composite asthma phenotype noted with detailed analysis of the cellular subtypes in the PLO, SLO and tissues- their structural identity and their functional propensity (Figure 1).

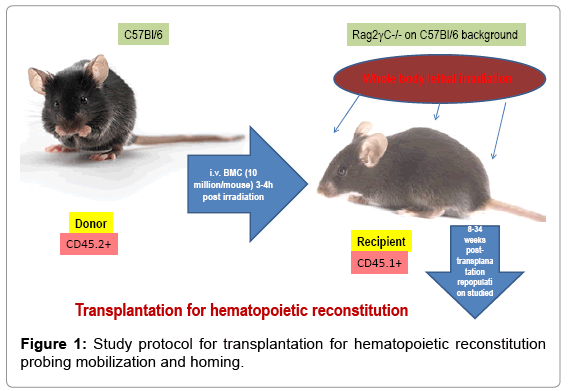

Figure 1: Study protocol for transplantation for hematopoietic reconstitution probing mobilization and homing.

Allergen sensitization and challenge

Mice were sensitized and later challenged with OVA (Pierce, Rockford, IL) as described previously [28]. Mice were immunized with OVA (100μg) complexed with aluminium sulfate in a 0.2-ml volume, administered by i.p. injection on day 0. On days 8 (250 μg of OVA) and on days 15, 18, and 21 (125μg of OVA), mice were anesthetized briefly with inhalation of isoflurane in a standard anesthesia chamber and given OVA by intratracheal (i.t.) administration. Intratracheal challenges were done as described previously [29]. Mice were anesthetized and placed in a supine position on the board. The animal’s tongue was extended with lined forceps and 50 μl of OVA (in the required concentration) was placed at the back of its tongue. The control group received normal saline with aluminium sulfate by i.p. route on day 0 and 0.05 ml of 0.9% saline by i.t. route on days 8, 15, 18, and 21 (Figure 2).

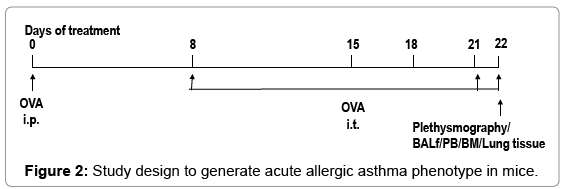

Figure 2: Study design to generate acute allergic asthma phenotype in mice.

Pulmonary function testing

In vivo airway hyperresponsiveness to methacholine was measured 24 hours after the last OVA challenge in conscious, free moving, spontaneously breathing mice using whole-body plethysmography (model PLY 3211; Buxco Electronics, Sharon, CT) as previously described (4). Mice were challenged with aerosolized saline or increasing doses of methacholine (5, 20, and 40mg/ml) generated by an ultrasonic nebulizer (DeVilbiss Health Care, Somerset, PA) for 2 min. The degree of bronchoconstriction was expressed as enhanced pause (Penh), a calculated dimensionless value, which correlates with the measurement of airway resistance, impedence, and intrapleural pressure in the same mouse. Penh readings were taken and averaged for 4 min after each nebulization challenge. Penh was calculated as follows: Penh = [(Te/Tr-1) X (PEF/PIF) , where Te is expiration time, Tr is relaxation time, PEF is peak expiratory flow, and PIF is peak inspiratory flow X 0.67 co-efficient. The time for the box pressure to change from a maximum to a user-defined percentage of the maximum represents the relaxation time. The Tr measurement begins at the maximum box pressure and ends at 40%.

BALf

After pulmonary function testing, the mouse underwent exsanguination by intra-orbital arterial bleeding and then BAL (0.4 ml three times) of both lungs. Total BAL fluid cells were counted from a 50μl aliquot and the remaining fluid was centrifuged at 200 g for 10 min at 40ºC and the supernatants stored at –700ºC for assay of BAL cytokines later. The cell pellets were re-suspended in FCS and smears were made on glass slides. The cells, after air drying, were stained with Wright-Giemsa (Biochemical Sciences Inc, Swedesboro, NJ) and their differential count was taken under a light microscope at 40X magnification. Cell number refers to that obtained from lavage of both lungs/mouse.

Lung parenchyma

Lung mincing and digestion was performed after lavage as described previously (8) with 100u/ml collagenase for 1 hr at 370C, and filtered through a 60# sieve (Sigma). All numbers mentioned in this paper refer to cells obtained from one lung/mouse.

Lung histology

Lungs of other animals of same group were fixed in 4% paraformaldehyde overnight at 40ºC. The tissues were embedded in paraffin and cut into 5 μm sections. A minimum of 15 fields were examined by light microscopy. The intensity of cellular infiltration around pulmonary blood vessels was assessed by Hematoxylin and Eosin staining. Airway mucus was identified by staining with Alcian blue and Periodic Acid Schiff staining as described previously [30].

Immunohistochemical staining of the lung

Lungs of yet other animals of the same group were processed for immuno histochemical staining following standard procedures [31]. They were stained with either anti-VCAM-1 (MK2) or anti β1 (9EG7) antibody and colour development done by HRP. Mouse tissues were prefixed in 4%paraformaldehyde in 100 mM PBS (pH 7.4) for 6-12h at 40ºC, washed with PBS thrice for 10 min and then the tissues were soaked in 10% sucrose in PBS for 2-3h, 15% sucrose in PBS for 2-3h, 20% for 3-12h at 40ºC and then embedded in O.C.T. compound (Tissue- Tek 4583, Sakura Finetechnical CO., Ltd, Tokyo,103, Japan) and frozen in acetone cooled by dry ice. Frozen blocks were stored at –700ºC refrigerator until sectioned. Frozen blocks were cut on a freezing, sliding macrotome at 4 μm (LEICA CM1850 Cryostat) and air-dried for 30 min at RT. After washing in PBS 3times for 10 min at RT, to block endogenous peroxidase activity, 0.3% hydrogen peroxide was applied to each section for 30 min at RT. Each slide was incubated with blocking solution (normal serum from the specific secondary antibody was derived from) to block nonspecific reactions. Appropriately diluted primary antibody was applied to each slide and incubated for overnight at 40 C. After washing with PBS, slides were incubated with appropriately diluted specific biotin conjugated secondary antibody solution for 1h at RT. After washing with PBS, slides were incubated in AB reagent for 1h at RT (ABComplex/HRP, DAKO). After washing with PBS, slides were stained with 0.05% DAB (3,3’-diaminobenzidine tetrahydrochloride, Sigma) in 0.05 M Tris buffer (pH 7.6) containing 0.01%H2O2 for 5-40 min at RT. Slides were counterstained with Mayer’s hematoxylin and dehydrated in graded ethanol, xylene and mounted with Mount-Quik (Daido Sangyo Co. Ltd., Japan).

CFU-c assay

To quantitate committed progenitors, CFU-C assays were performed using methylcellulose semisolid media (Stemgenix,Amherst, NY) supplemented with an additional 50ng of stem cell factor per ml (Peprotech, Rocky Hill, NJ) to promote growth of hematopoietic progenitors. Next, 0.01 x 106 cells from lung were plated on duplicate 35-mm culture dishes and incubated at 37°C in a 5% CO₂-95% air mixture in a humidified chamber for 7 days. Colonies generated by that time were counted using a dissecting microscope, and all colony types (i.e., BFU-E, CFU-E, CFU-G, CFU-GEMM, CFU-GM, and CFU-M) were pooled and reported as total CFU-C. Aliquots of 1^-10 ×10⁴ cells were plated per 1 ml of semisolid methylcellulose (CFU-lite with Epo, MiltenyiBiotech, or complete human methyl cellulose medium, Stem Cell Technologies, Vancouver, BC, Canada). CFU-C frequency was scored morphologically after 10 to 14 days in culture at 37°C, 5% CO₂, in a humidified incubator.

Fluorescin-activated cell sorter (FACS) analysis

Cells from hemolysed peripheral blood (PB), bone marrow(BM), bronchoalveolar lavage (BAL), lung parenchyma (LP), spleen, mesenteric lymph nodes (MLN), cervical lymph nodes (CLN), axillary lymph nodes (LNX) and inguinal lymph nodes (LNI) were analyzed on a FACSCalibur (BD Immunocytometry Systems, San Jose, CA) by using the CELL Quest program. Staining was performed by using antibodies conjugated to fluorescin isothiocyanate (FITC), phycoerythrin (PE), allophucocyanin (APC), Peridinin Chlorophyll Protein (Per CP-Cy5.5) and Cy-chrome (PE-Cy5 and PE-Cy7). The following BD pharmingen (San Diego, CA) antibodies were used for cell surface staining: APCconjugated CD45 (30F-11), FITC-conjugated CD3(145-2C11), PECy5 conjugated CD4 (RM4-5),PE-conjugated CD45RC (DNL-1.9), APC-conjugated CD8(53-6.7), PE-Cy5 conjugated B220 (RA3-6B2), FITC-conjugated IgM, PE-conjugated CD19 (ID3), PE-conjugated CD21(7G6), FITC-conjugated CD23 (B3B4), APC-conjugated GR- 1(RB6-8C5), and PE-conjugated Mac1(M1/70). PE-Cy5 conjugated F4/80 (Cl: A3-1(F4/80)) was obtained from Serotec Ltd., Oxford, UK. PE-conjugated anti-4 integrin (PS2) and anti-VCAM-1(M/K-2) was from Southern Biotechnology, Birmingham, Ala. Irrelevant isotypematched antibodies were used as controls [32].

ELISA for cytokines

Th2 cytokines (IL-4 and 5) and TNFα and IFNγ in BAL and serum (previously frozen at –700ºC) were assayed with mouse Th1/ Th2 cytokine CBA (BD Biosciences, San Diego, CA) following the manufacturer’s protocol. According to the manufacturer’s protocol IL-13 and Eotaxin were measured by Quantikine M kits from R&D Systems, Minneapolis, MN [28].

OVA specific IgE and IgG1 in serum

Anti-mouse IgE (R35-72) and IgG1 (A85-1) from BD Biosciences, San Diego, CA were used for measuring OVA specific IgE and IgG1 (in serum previously frozen at –700ºC) respectively by standard ELISA procedures as previously described [28].

Rationale for the study

The study was designed to develop a preclinical model of acute allergic asthma in C57Bl/6J mouse purchased from NIN under permission of the departmental animal ethics committee (approval dated 12-5-2010, renewed on 30-12-2013) and do a meta-analysis of unpublished earlier data generated in University of Washington, USA, [28-38] together with new data generated in the University of Calcutta. Data from two main focused groups of experiments shall be shared and discussed in this work-

Cell traffic from PLO to SLO and vice versa, from pulmonary tissue to PLO and vice versa, post complete manifestation of composite asthma phenotype (some data published in ref.37 which shall be further analyzed and discussed and new data presented here) and Lymphopoiesis, mobilization, homing and repopulation of PLO and SLO of lethally irradiated Rag2γC-/- recipients from WT (α4+/+) and αa ablated mouse bone marrow and then development (or not) of the composite asthma phenotype and inferences made thereof. (Here again some published data from ref. 34 shall be discussed in context with cellular traffic). α4 ablated and β2-/- mice were developed by other labs [39-40].

α4+ cells in various tissues of α4f/f and α4Δ/Δ donors prior to transplantation

The α4 expression in ablated tissue must be checked to ensure that there is no leakage of the transcriptome and that there is true ablation. To do this α4 expression was checked in various tissues of the donor (namely, primary and secondary lymphoid tissue and tissue where inflammation is occurring (Figure 3) shows the distribution of α4+ cells in α+ versus α4 ablated mice. This is in donor mice itself (the mice from which BMC was prepared from femur for engraftment into bloodstream. Understandably PB has the lowest number of α4+ cells while surprisingly Peyer’s patch has the highest number of α4+ cells in α 4 ablated mice. WT BMC showed a greater homing and engraftment property than the KO BMC transplanted into the recipients. Cells that showed greatest (in terms of shortest time of migration and in terms of the greatest number of viable cells) homing and engraftment were the ones in PP, LNI, LNX, and MLN. Of note, these are total number of cells including progenitors and differentiated functionally mature cells. These may be therefore labeled as the “leaky” tissues were postablation, α4 expression still occurs, designating the transcriptome in these tissues as being non-permissive to ablation.

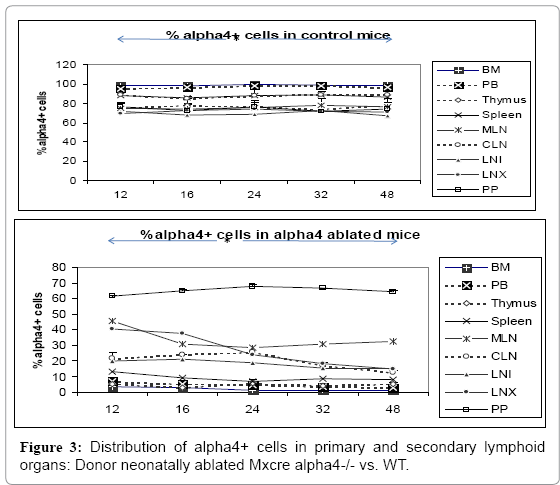

Figure 3: Distribution of alpha4+ cells in primary and secondary lymphoid organs: Donor neonatally ablated Mxcre alpha4-/- vs. WT.

Clonogenic potential of bone marrow cells used in transplantation of Rag2γC-/- recipients

The colony forming units count is an important parameter to assess progenitor’s functionality. This is a baseline from which clonogenicity and proportionate progenitor number may be assessed in various tissues of the donor, the recipient and post- OVA treatment (Figure 4) presents clonogenic potential of bone marrow of WT vs. α4-/- mice. α4- /- bone marrow cells show greater colony forming potential as found earlier [37-39].

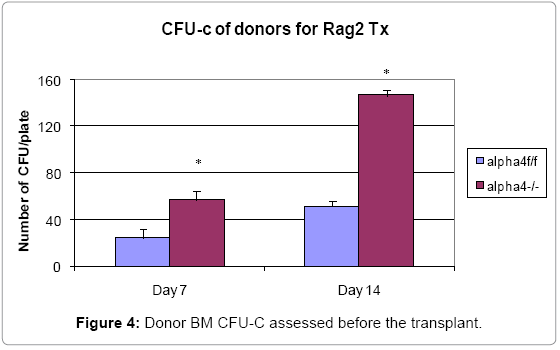

Figure 4: Donor BM CFU-C assessed before the transplant.

Tissue distribution of hematopoietic progenitors posttransplantation and engraftment at 10 weeks

The long term distribution of functional progenitors is an important parameter to gauge the cross talk between PLO, SLO and inflamed tissue cells via blood vis-à-vis immunogenicity. As seen from data presented in (Figure 5) PLO show the maximum variation among the genotype groups with or without OVA treatment in the PLO. Compared to WT, in both KO groups α4-/- and β2-/-, there was 2-fold, 2.3-fold and 2 fold increase in the number of progenitors in BM respectively post-OVA. In circulating blood, however, WT show 1.7-fold increase in circulating progenitor number compared to 2.3- fold in both KO groups. There was 3-fold increase in hematopoietic progenitors in spleen of WT compared to 9% and 13% respectively in α4-/- and β2-/- spleen. In the PP, WT and both KO groups show negligible change in progenitor number post-OVA. In tissue, a very curious thing is happening, compared to WT, where post-OVA increase in progenitor number in lung was 10-fold, in α4-/- it reduced half while in β2-/-, the number increased by 16.5-fold. In the interstitial spaces of the lung, from the BALf, the hematopoietic progenitors that were detected were 4.7-fold in WT compared to pre-OVA numbers being double in α4-/- but only a 1.7-fold increase post-OVA. BALf in β2-/- however were a negligible number and obviously demonstrates a mechanistic inability to migrate across the interstitium.

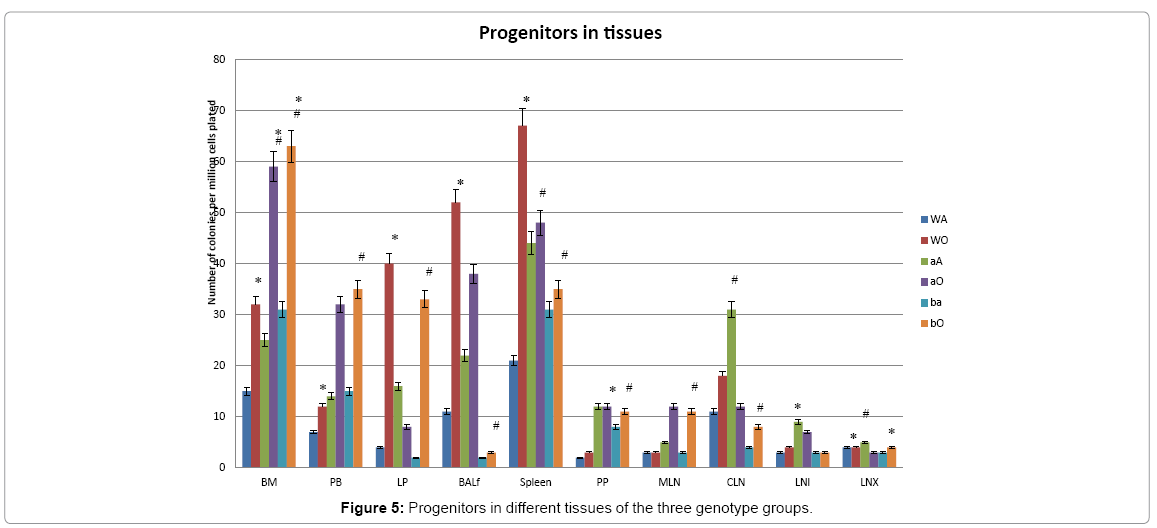

Figure 5: Progenitors in different tissues of the three genotype groups.

Tissue distribution of mature and differentiated hematopoietic cells

Progenitor cells give rise to differentiated cells via clones proliferated in response to a stimulus. Thus this is a static assessment of cells mobilized out of their niches or sites of synthesis and sites of maturation and homed to repopulate recipients post-transplantation and in response to OVA-treatment by repopulated hosts. Repopulation of thymus was significantly impaired in Rag 2–/– recipients of α4Δ/Δ cells, compared to those that received α4f/f donor cells (Figure 6A). A decrease in total cellularity (by 43% at 6 months) was again demonstrable at 8 months post-transplantation, indicating no restorative evidence with time posttransplantation. Double-positive (DP, CD4+/CD8+) population was the predominant one in Rag2–/– recipients of α4Δ/Δ or α4f/f donor cells. The CD4:CD8 ratio greatly favored the CD4 population (w8:1). This suggests that the total repopulation of thymus was impaired, likely because of impaired migration of BM-derived progenitors to thymus, although their subsequent maturation (to DP) was not grossly impaired in the absence of α4 integrins. However, it is notable that CD8+cells were at very low levels in thymus and lower than controls, in contrast to levels in PB (w1.9:1).

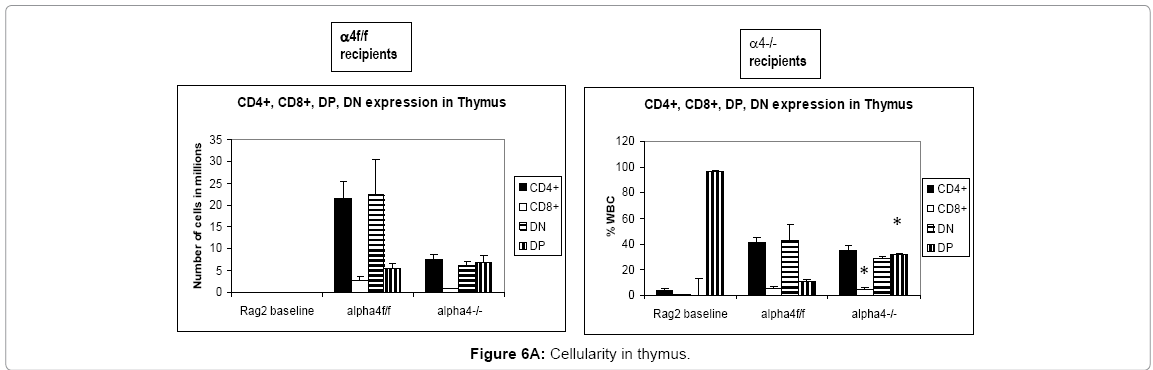

Figure 6A: Cellularity in thymus.

Traffic between primary and secondary lymphoid tissue (differentiated immune cells only)

Proximal circulation: The next question was to track the distribution of progenitors, differentiated cells, and hematopoietic cells in context with α4 expression in various tissues. This is to assess patterns of cellular traffic and cellular distribution after homing and engraftment as well as functionality to a well-defined stimulus. Cellularity in cervical, axillary, and inguinal lymph nodes was similar to controls (i.e., recipients of α4f/f donor cells). Detailed evaluation of subset distribution showed that there were modestly decreased proportions of mature B cells (B220+IgM+) in all LNs tested, or decreased proportions of activated T cells (CD3+/CD25+, CD3+/CD44+), but their absolute numbers were not significantly different from control groups (Figure 6B-H). There was a tendency for preferential migration of CD45RC–/CD4+ (memory) cells to lymph nodes, whereas CD45RC+/CD4+ (naive) cells instead preferentially migrated to spleen and thymus in α4Δ/Δ recipients. In spleen, as noted above, the cellularity, especially of red pulp, was significantly increased and concerned all developmental stages of B cells and of total T cells.

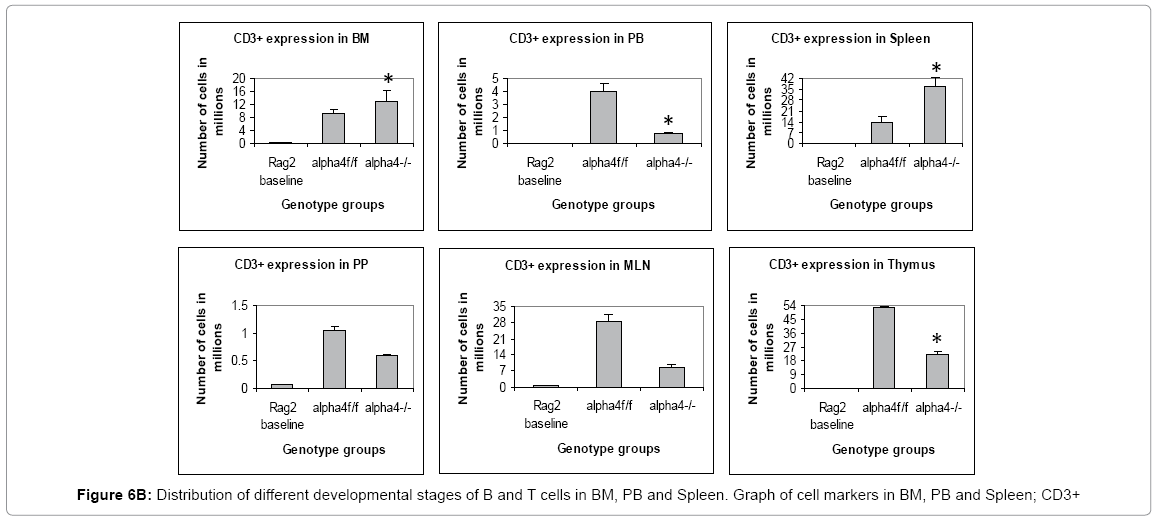

Figure 6B: Distribution of different developmental stages of B and T cells in BM, PB and Spleen. Graph of cell markers in BM, PB and Spleen; CD3+

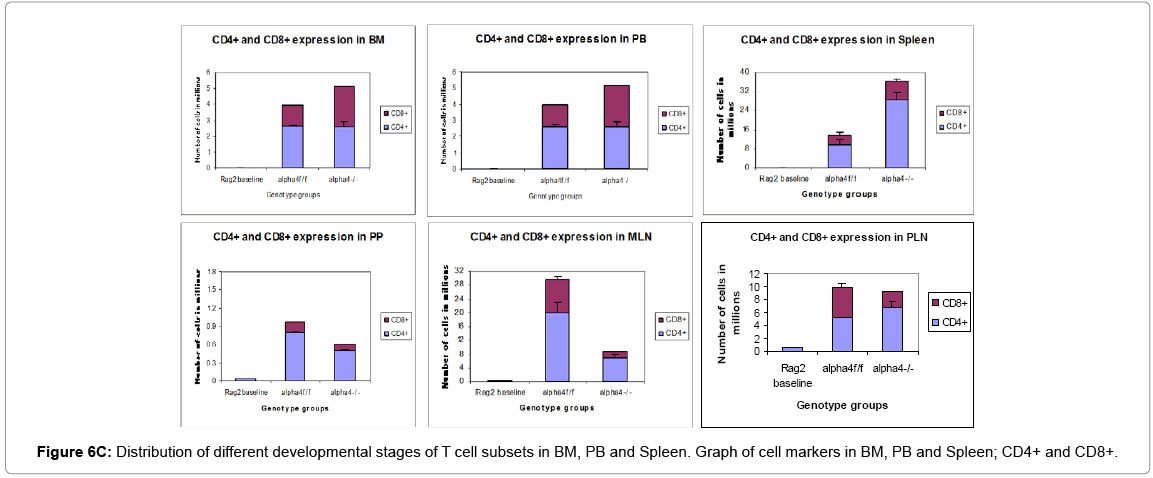

Figure 6C: Distribution of different developmental stages of T cell subsets in BM, PB and Spleen. Graph of cell markers in BM, PB and Spleen; CD4+ and CD8+.

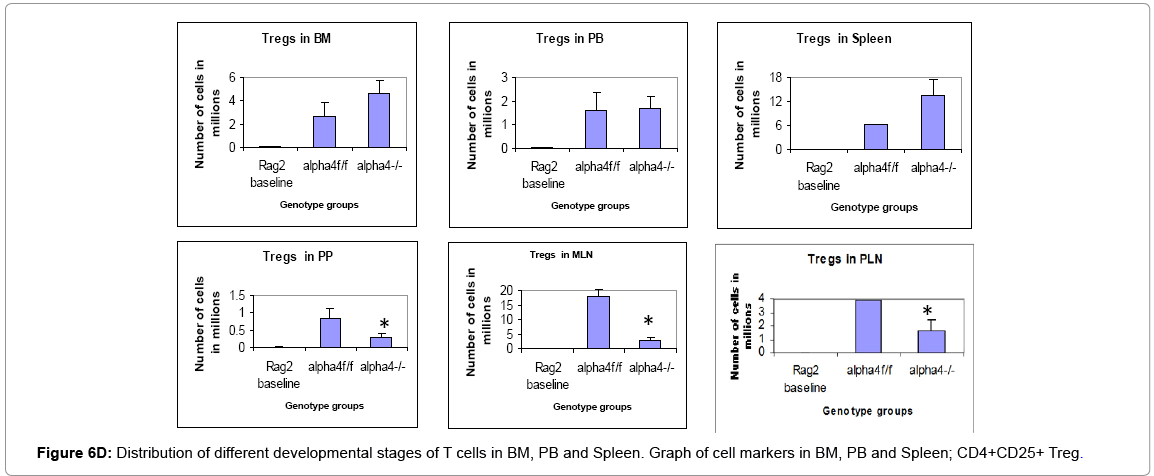

Figure 6D: Distribution of different developmental stages of T cells in BM, PB and Spleen. Graph of cell markers in BM, PB and Spleen; CD4+CD25+ Treg.

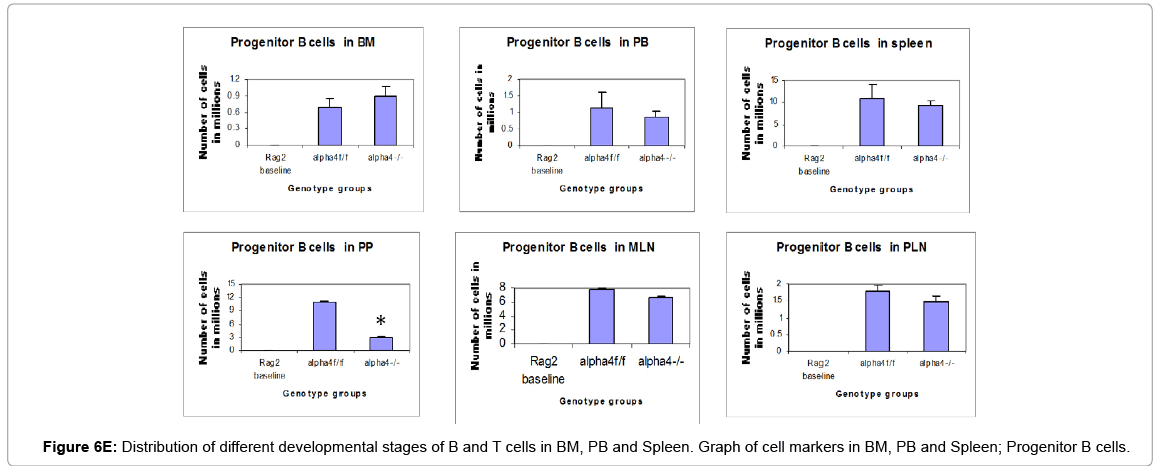

Figure 6E: Distribution of different developmental stages of B and T cells in BM, PB and Spleen. Graph of cell markers in BM, PB and Spleen; Progenitor B cells.

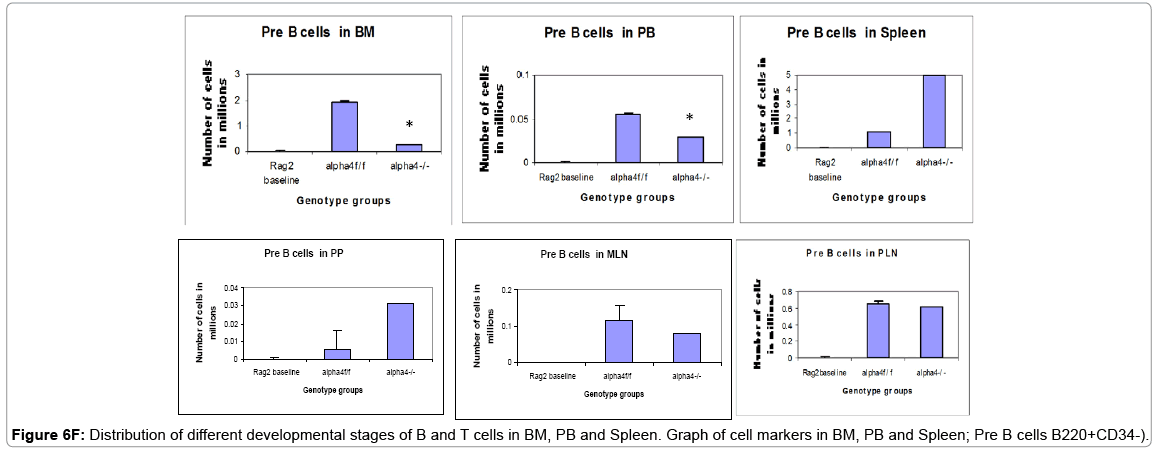

Figure 6F: Distribution of different developmental stages of B and T cells in BM, PB and Spleen. Graph of cell markers in BM, PB and Spleen; Pre B cells B220+CD34-).

Figure 6G: Distribution of different developmental stages of B and T cells in BM, PB and Spleen. Graph of cell markers in BM, PB and Spleen; Pro B cells- Early B cells (B220+CD19-).

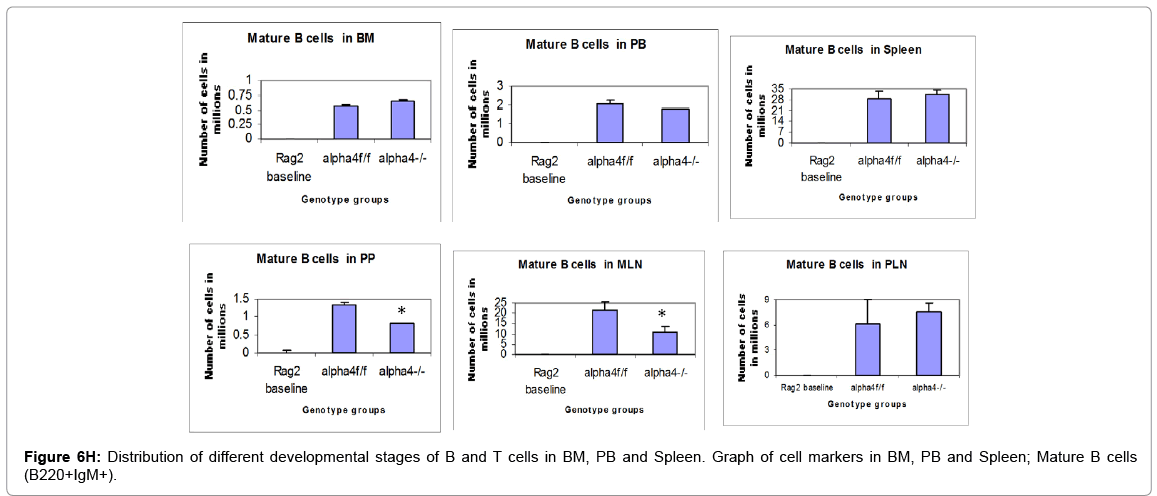

Figure 6H: Distribution of different developmental stages of B and T cells in BM, PB and Spleen. Graph of cell markers in BM, PB and Spleen; Mature B cells (B220+IgM+).

Remote circulation: Patterns of cell traffic is also under paracrine modulation where multiple signals generated out of this migration are working on the α4+ and α4 depleted cells in tandem. To quantify this following set of experiments were performed. In Rag–/– recipients of α4Δ/Δ cells both at 6 and 8 months post-transplantation, there was a significant reduction in cell numbers recovered from these tissues compared to controls (about 17-fold in PPs, 67% less in MLNs). All subsets of B and T cells were severely reduced in PPs and MLNs repopulated by α4Δ/Δ cells. The CD4:CD8 ratio in PPs favoured a CD4+ profile, as seen in thymus. These data, like the ones in thymus, suggest significant homing impairment of all α4Δ/Δ cells to these tissues.

Rate limiting cells: From the above results, the next obvious question was which were the critical or rate limiting cells, that is the identity of cells which were “nodal” in function in the ramifications of cell distribution patterns. Taken together the above results and detailed cellular subpopulation analyses in Tables 1-16 the following data stand out: In blood, WT lymphoid cells before OVA treatment increase by 1.75 folds after OVA treatment compared to non-lymphoid cells which shows insignificant increase. Whereas in α4-/-, they increase by 2.3-fold and in β2-/- increase is about 1.6-folds. In both KO mice, however, there is significant increase in number of non-lymphoid cells post-OVA compared to WT 5-fold in α4- /- and 1.6-fold in β2-/-. In lung, WT post-OVA lymphoid cells were a 106.6 fold compared to control but in only 26.57-fold more myeloid cells migrate to lung parenchyma due to OVA-induced inflammation. In both KO, nonlymphoid cells are 16-fold and 12-fold respectively compared to control. In BALf, there is 40-fold increase in number of lymphoid cells post-OVA in WT and 7.6-fold increase in myeloid cells, but other than these same cells showing a slight increase (3.5-fold) post-OVA in β2-/- cells, all KO cells basically failed to migrate across and show poor occurrence even compared to WT control (Table 1).

Table 1: Cell subsets migrated from blood to inflamed tissue. (L=Lymphoid, NL±Non-lymphoid) Values represent total number of different cells and their subsets migrated from bone marrow (BM) via circulation that is peripheral blood (PB) to lung parenchyma (LP) and interstitium (bronchoalveolar lavage fluid- BALf). Recruitment of all leukocytes and their subsets is less in α4-/- lung as well as BALf compared to control. In β2-/- lung, except T cells and eosinophils, all other cells were increased in number. (*P<0.01 compared with post-OVA control) Recruited T cells post-OVA (both CD4± and CD8±) were CD45RC negative (memory) in control lung and BAL but mostly CD45RC positive (naïve) in α4-/- and β2-/- mice. Note the differences between α4 and β2 deficient mice in LP cell content. Mφ denotes macrophage. (n=12/genotype group).

Table 2a: % blood cells that migrated to interstitial spaces of the lung (BALf). Number of cells in PLO and SLO and tissue were calculated as TC and DC by hemocytometric analysis in a standard Neubauer’s hemocytometer, DC was analyzed by double blind counting from H&E stained smears prepared in a cytospin (manufactured by Vision Scientific, South Korea, model Centurion Scientific C2 series) using Zeiss photo allotment and Axiostar plus software and by flow cytometry using BD flow cytometer (BD Accuri C6 cytometer) and analyzed by BD Accuri C6 software using monoclonal fluorochrome tagged antibody as mentioned in Materials & Methods.

Table 2b: % blood cells that migrated to lung parenchyma. Number of cells in PLO and SLO and tissue were calculated as TtC and DC by hemocytometric analysis in a standard Neubauer’s hemocytometer, DC was analyzed by double blind counting from H&E stained smears prepared in a cytospin (manufactured by Vision Scientific, South Korea, model Centurion Scientific C2 series) using Zeiss photo allotment and Axiostar plus software and by flow cytometry using BD flow cytometer (BD Accuri C6 cytometer) and analyzed by BD Accuri C6 software using monoclonal fluorochrome tagged antibody as mentioned in Materials & Methods.

Table 2c: % blood cells that migrated to trachea. Number of cells in PLO and SLO and tissue were calculated as TC and DC by hemocytometric analysis in a standard Neubauer’s hemocytometer, DC was analyzed by double blind counting from H&E stained smears prepared in a cytospin (manufactured by Vision Scientific, South Korea, model Centurion Scientific C2 series) using Zeiss photo allotment and Axiostar plus software and by flow cytometry using BD flow cytometer (BD Accuri C6 cytometer) and analyzed by BD Accuri C6 software using monoclonal fluorochrome tagged antibody as mentioned in Materials & Methods.

Table 3: Lymphoid and myeloid cells in bone marrow. Number of cells in PLO and SLO and tissue were calculated as TC and DC by hemocytometric analysis in a standard Neubauer’s hemocytometer, DC was analyzed by double blind counting from H&E stained smears prepared in a cytospin (manufactured by Vision Scientific, South Korea, model Centurion Scientific C2 series) using Zeiss photo allotment and Axiostar plus software and by flow cytometry using BD flow cytometer (BD Accuri C6 cytometer) and analyzed by BD Accuri C6 software using monoclonal fluorochrome tagged antibody as mentioned in Materials & Methods.

Table 4a: Total count (Lymphoid and myeloid cells) in Blood. Number of cells in PLO and SLO and tissue were calculated as TC and DC by hemocytometric analysis in a standard Neubauer’s hemocytometer, DC was analyzed by double blind counting from H&E stained smears prepared in a cytospin (manufactured by Vision Scientific, South Korea, model Centurion Scientific C2 series) using Zeiss photo allotment and Axiostar plus software and by flow cytometry using BD flow cytometer (BD Accuri C6 cytometer) and analyzed by BD Accuri C6 software using monoclonal fluorochrome tagged antibody as mentioned in Materials & Methods.

Table 4b: Blood.

Table 4c: Blood.

Table 4d: Blood.

Table 5a: BALf.

Table 5b: BALf.

Table 5c: BALf.

Table 5d: BALf.

Table 5e: BALf.

Table 6a: Table 6A- LP Total count (Lymphoid and myeloid cells) in LP. Number of cells in PLO and SLO and tissue were calculated as TC and DC by hemocytometric analysis in a standard Neubauer’s hemocytometer, DC was analyzed by double blind counting from H&E stained smears prepared in a cytospin (manufactured by Vision Scientific, South Korea, model Centurion Scientific C2 series) using Zeiss photo allotment and Axiostar plus software and by flow cytometry using BD flow cytometer (BD Accuri C6 cytometer) and analyzed by BD Accuri C6 software using monoclonal fluorochrome tagged antibody as mentioned in Materials & Methods.

Table 6b: LP.

Table 6c: LP.

Table 6d: LP.

Table 7: Table 7A Trachea - Total count (Lymphoid and myeloid cells) in trachea. Number of cells in PLO and SLO and tissue were calculated as TC and DC by hemocytometric analysis in a standard Neubauer’s hemocytometer, DC was analyzed by double blind counting from H&E stained smears prepared in a cytospin (manufactured by Vision Scientific, South Korea, model Centurion Scientific C2 series) using Zeiss photo allotment and Axiostar plus software and by flow cytometry using BD flow cytometer (BD Accuri C6 cytometer) and analyzed by BD Accuri C6 software using monoclonal fluorochrome tagged antibody as mentioned in Materials & Methods.

Table 7b: Trachea.

Table 7c: Trachea.

Table 7d: Trachea.

Table 8a: Total count (Lymphoid and myeloid cells) in spleen. Number of cells in PLO and SLO and tissue were calculated as TC and DC by hemocytometric analysis in a standard Neubauer’s hemocytometer, DC was analyzed by double blind counting from H&E stained smears prepared in a cytospin (manufactured by Vision Scientific, South Korea, model Centurion Scientific C2 series) using Zeiss photo allotment and Axiostar plus software and by flow cytometry using BD flow cytometer (BD Accuri C6 cytometer) and analyzed by BD Accuri C6 software using monoclonal fluorochrome tagged antibody as mentioned in Materials & Methods.

Table 8b: Spleen.

Table 8c: Spleen.

After the evaluation of the total and sub-populations of hematopoietic cells from PLO through blood to tissue site of inflammation (respiratory tissue), the obvious question was what fraction of the blood cells actually get recruited to SLO and thence to the inflamed tissue. Tables 3 onwards attempts to quantitate that in detail. Percent recruited from blood to tissue as shown in Table 2 show a post-OVA preferential recruitment of T cells in α4+ cells (60-fold) to α4- cells (28-fold) and none in β2- cells while B cells show a complete inability to migrate to tissues in both KO (decrease by 3-fold) compared to 2.5-fold increase in WT cells. Macrophages (GR1-F4/80+) show no significant change in β2-/- compared to WT and α4-/- recruitment (20-fold and 15-fold respectively). As for a population of cells expressing both the myeloid markers, although in WT the number of cells detected were small, there was significant increase in their recruitment from blood (133-fold) but in α4-/- mice, there was no difference in their recruitment post-OVA as opposed to β2-/- that showed feeble recruitment to the tune of thrice the number of cells recruited before OVA treatment which however was 166-fold higher to begin with in both KO groups.

As for the scenario in PLO (BM) other than T cells in whose number α4-/- cells show 10.6-fold increase in synthesis of T cells as opposed to B cells, myeloid cells and indeed all other CD45+ cells compared to WT where an average of 2.3±0.36 fold increase in seen post-OVA. (Table 3)

Tables 4-7 (A-D) detail the count of different cell populations and is much more elaborate readout of Table 1. The important highlight here is that lung parenchyma, BALf and trachea being the different structural components of the respiratory tissue, the last seems to be a key node of information throughput and compared to WT and β2-/- mice, α4-/- mice show a much exaggerated CD4:CD8 ratio 5:1 compared to 3:1 in the former. Additionally in all four tissues, Tables 5-7C, all three species of B cells, viz. B220+IgM+ mature plasma cells, B220+CD19+ memory cells, B220+CD23+ allergen specific plasma cells are severely decreased in number in β2-/-mice ab initio and although there is significant increase in these numbers after OVA treatment, the overall cell number in this KO mouse in respiratory tissue falls far short of even the numbers of these cells in the placebo treated WT. Table 8A,B shows that both KO mice show a Th2 skewed phenotype in untreated mice which respond to OVA in terms of ration but neither threshold number nor the composite phenotype is attained indicating that CD4:CD8 may not be absolutely essential for the etiopathophysiology at a critical level. The interesting finding in data presented in these levels however is probably the most important finding of the entire work because of the memory versus naïve or immature T and B cell numbers before and after OVA treatment (Table 8C).

As regards the secondary lymphoid organs and tissues, the first to be considered was CLN as it is anatomically proximal to the lung. These displays an increase in total number of cells 26.5% and 31.3% were respectively contributed by T and B cells. Interestingly, post-OVA this increased by 5-folds in α4Δ/Δ but remained same in β2-/-.

Some adhesion molecules contribute to the endothelial adherence and migration of leukocytes into tissues [4]. The expression of adhesion molecules activate these leukocytes induce adherence to epithelial cells, and cause the release of cytokines. The expression of adhesion molecules was found in immunologic lung diseases such as atopic asthma, extrinsic allergic alveolitis, and sarcoidosis [4]. In all of the immune disorders, lymphocytes expressed the integrins alpha4/beta1 (VLA4) and ICAM3. Also the expression of VLA4 and ICAM3 was found in eosinophils s in atopic asthma bronchitis in contrast to COPD bronchitis as revealed in the previous studies.TheVCAM1 expression on endothelial cells was observed only in atopic asthma and was associated with disease activity. The expression of other adhesion molecules was nonspecific. Expression of VCAM1 on endothelial cells and its ligand VLA4 on lymphocytes and eosinophils have been found to be a specific event in atopic asthma. Expression of VLA4 and ICAM3 on lymphocytes, however, might be a specific event in all three immune reactions [5]. This cellular migration is mediated by the controlled membrane trafficking pathways that recycle adhesion receptors contributing to cell migration [5].

The recruitment of immune cell to the inflamed endothelia and sites of inflammation is mainly regulated by VLA4 (very late antigen 4, α4β1 integrin, CD49d/CD29)[6]. It participates in the interaction of antigen presenting cell and lymphocyte, retention and mobilization of immature progenitors in the bone marrow as well. Integrins act as an attractive target for several drugs for treatment of inflammatory diseases [6].

The inflammatory processes as a result of leucocyte accumulation lead to various tissue damage and disease. These processes are mediated in part by the α4 integrins, α4β1 and α4β7, expressed on the leukocyte cell surface. These glycoprotein receptors modulate cell adhesion by interacting with their primary ligands their primary ligands, vascular cell adhesion molecule (VCAM) and mucosal address in cell adhesion molecule (MAdCAM), expressed in the affected tissue. After binding, the combined integrin/CAM interactions at the cell surface result in firm adhesion of the leukocyte to the vessel wall followed by entry into the affected tissue. The increased expression of cell adhesion molecule (CAM) in various organs has been shown to be linked with several autoimmune diseases. In order to treat inflammatory diseases, some monoclonal antibodies specific for alpha4 integrins or their CAM ligands can be used to moderate inflammation in animal models suggesting such inhibitors may be useful for treating human inflammatory diseases [1].

Figure 1&2 shows the diagrammatic representation of the basic study protocols of transplantation for hematopoietic reconstitution and development of preclinical asthma respectively. C57Bl/6J mouse from NIN under permission from IAEC (University of Washington, Seattle, USA) and Departmental Animals Ethics Committee (Dept. of Zoology, University of Calcutta, India). Using this basic template of the study protocol of acute allergic asthma, migration of cells under no-disease condition (“clean” Rag2γc-/- where progenitors were killed off by lethal γ-irradiation and bone marrow cells from donors were allowed to repopulate all PLO and SLO) and under diseased condition where two genotype knockout mice were used and acute allergic asthma induced to track and study the various nuances of cell migration in the different PLO and SLO and their subsequent recruitment to the pulmonary tissue for orchestrating inflammation.

At the outset, we must consider the significance of the donors that were chosen and the recipients’ pre-treatment before transplantation. It maybe conclusively deduced from Figure 3 that some SLO are resistant to ablation of this integrin. The reason may be important metabolomics and transcriptomic pathways that disallow this resulting in the immunosecretome being readjusted and repositioned such that ablation of α4 is compensated. Figure 4 however, unambiguously excludes BMC from such non-permissiveness to ablation ensuring a 100% αa free reconstitution. As seen in previous publications [35-39], α4 has regulatory roles in mobilization, homing, and engraftment which explains their higher progenitor number in PLO (BM), circulation (PB), and spleen (SLO) in the KO groups but not appreciable numbers post OVA as was found in the WT (Figure 5). This is key in all other secondary lymphoid organs assessed, namely, MLN, LNI and LNX, except CLN, pattern of cellular traffic in WT vs. KO groups and control vs. OVA treated groups do not follow a uniform pattern or any “trend”. The complete oppositeness of progenitor number modulation post- OVA in the two genotype groups indicate their diverse pathways action as enumerated in [35,37,38]. But what is interesting here is the complete separation of the cell traffic (direction and number) as evident from Tables 1-8 and Figure 6A-H. The picture of T- and B-cell distribution in spleen is more in line with what is present in PB, and contrasts that of BM described above most likely because of longer retention and maturation of these cells in the splenic environment compared to BM. CD40+ (dendritic cells) were lower in all organs except the spleen, where the proportion, but not the total number, was low.

Figure 7 shows the pathways of induction of differentiation of various mature functionally active immune cells that are key to inflammation. Additionally, the figure also outlines the switch from progenitor (pluripotent cells) towards linage commitment and final differentiation into competent immune cells responsible for the immune activities within tissues. Important to note are the cytokines and other factors that not only induce differentiation but also attracts the cells from their sites of synthesis (PLO) to their sites of maturation (SLO) down to the tissues where they either perish in the onslaught or return to PLO or SLO (homing) with valuable information to be encoded as “central memory” cells that either become the effectors as and when they are recalled (mobilization) in the future during another exigency. Figure 8 represents ramifications of the network of growth factors and their receptors, adhesion and signaling molecules and transcription factors, maturation, morphogenic and their guidance molecules, ECM proteins and proteinases. Figure 9 shows schematically, the various functional cells populating the PLO, SLO and migrating to tissues, the known immune system lymphoid and myeloid sub populations and their inducing cytokines and growth factors. Figure 10 depicts the major PLO, SLO in humans and that denotes their exact counterparts in mouse as they will be extrapolated to represent.

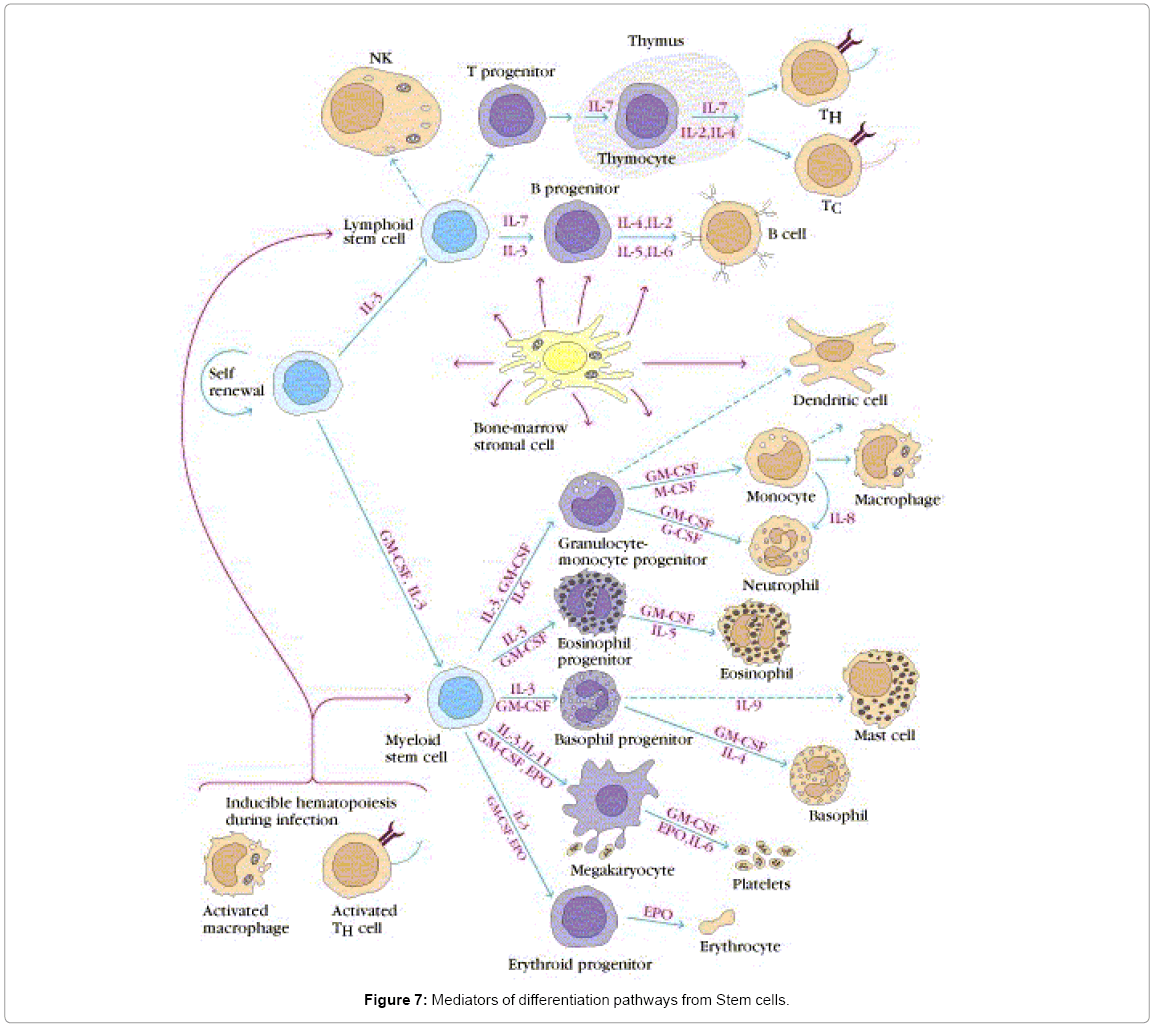

Figure 7: Mediators of differentiation pathways from Stem cells.

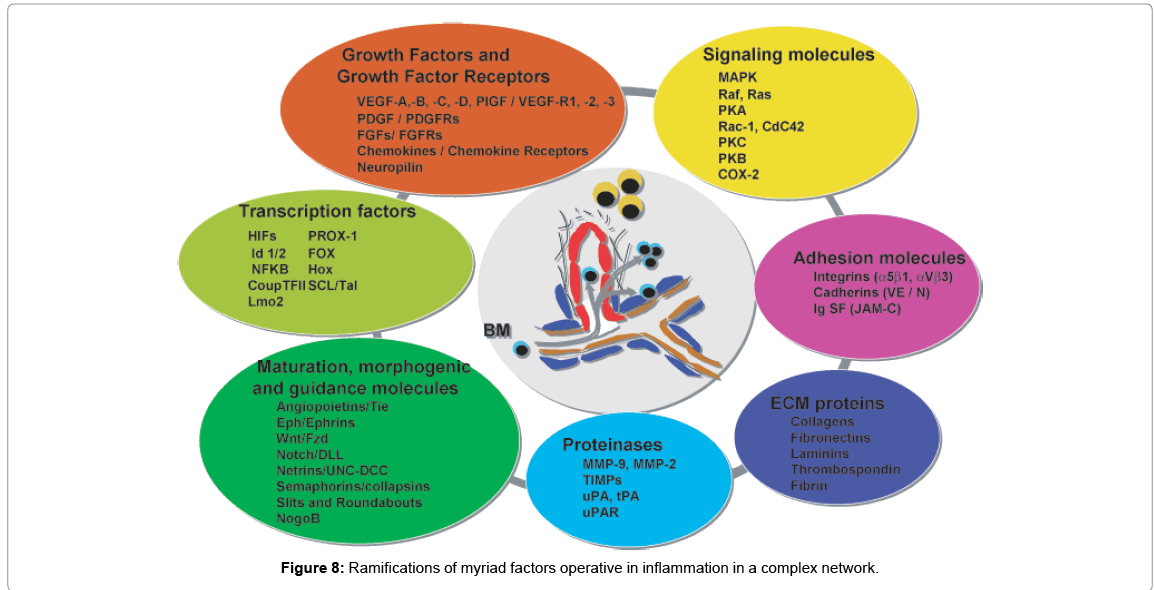

Figure 8: Ramifications of myriad factors operative in inflammation in a complex network.

Figure 9: Schematic representation of the key inflammasomes and their pathways.

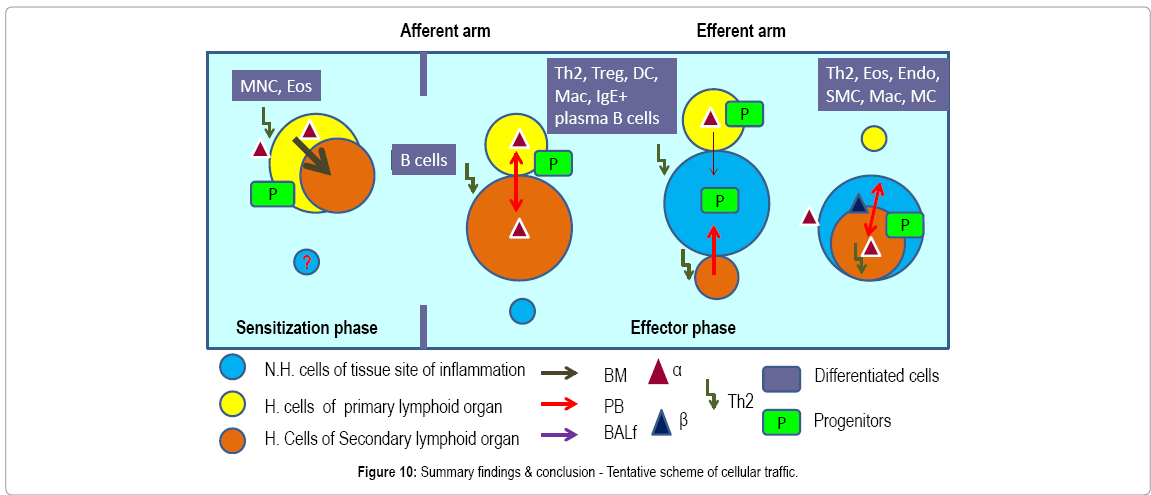

Figure 10: Summary findings & conclusion - Tentative scheme of cellular traffic.

Mortality being low and repopulation of transplanted cells being 100% by 48 weeks, we can say safely that the transplanted BMC did their job well, that is they found the regions to home to and then they settled down there and all progenitors generated new clones and differentiated into the type of cells that the tissues needed. In other words there was induction of differentiation in situ.

As for the rate limiting steps which are key in cellular traffic resulting in onset and development of the actual disease, α4 was found to be a critical regulatory factor for myeloid cellular traffic compared to lymphoid. (Table 1) Overall, both integrins seem to have regulatory roles in lymphoid and non-lymphoid cell migration to blood. The number of cells in BALf is the most striking and as described in [35-37] that while α4 principally controls sensitization and signaling, β2 mainly control the migration from lung parenchyma to interstitium without which onset of the asthma immunopathology cannot occur. Table 2 reveals a curious thing. A sub-population of cells GR1+F4/80+ (GR1hi F4/80hi), probably newly formed macrophages migrated to pulmonary tissue from BM, which is a minute percent recruited from blood in normal untreated mice, shoot up in both KO groups, notwithstanding their lack of recruitment post-OVA. This may indicate either a subclinical inflammation in the KO mice which is spontaneous in nature or it may be cells newly recruited from bone marrow with other more extraneous and somewhat fortuitous functions. This group need better characterization. The GR1+F4/80- myeloid population which is definitely the new recruits from BM which have still not lost their GR1 expression may be short-lived granulocytes which show similar trend as this preceding group. The significance may be better grasped in the following tables where trends in PLO top SLO migration become clearer. The rate limiting cells are therefore lymphoid cells as they migrate from blood to lung tissue and thence to the interstitial spaces where the actual gas exchange occurs and this step is almost exclusively controlled by the β2 integrin. α4 controls the lymphoid signaling while β2 controls myeloid migration. So these are the rate limiting cells from PLO to tissue. Table 3 reveals conclusively that although in α4-/- BM, synthesis and sequestration of T cells fall quite tremendously and post-OVA their number is amplified manifolds more than in WT. As mentioned in [39], this may either be due to a lack of “settling down” on the stroma of the PLO or a genuine increase in synthesis of these cells but it certainly means that there is possibly no impairment in the upstream IL-4-IL-4R and IL-5-induced recruitment from bone marrow in its absence. Data shown in Table 7D coupled with data presented in Figure 6A highlight that α4 is probably key to the Th1-Th2 balance. In Table 5-7C, data shows that although IL-4/5 induced cell recruitment is probably still operative despite absence of β2- cells from these B cells, they are unable to cross the number threshold and therefore insufficient to mount a viable pathophysiological circuit. [36-42]. There may be a role for epithelial progenitors, circulating and niche-dwelling [41] which is beyond the scope of this paper and is being currently investigated.

From available literature it has been reported that two general mechanisms have been described by which integrin mediated adhesion is regulated: 1) alterations in integrin affinity for extracellular ligands (activation) and 2) variation in receptor mobility. Some studies also indicated that NK cells express constitutively active α4β1 and resting T cells expresses inactive α4β1.Use of agonists can activate α4β1 on memory, but not naive T cells. Moreover, integrin affinity can control multiple cellular responses in addition to cell adhesion. α4 integrins show the property of potent signaling functions that complement their capacity to mediate cell adhesion and also promote cell migration Also, studies indicated that the engagement of α4 integrins by trace quantities of VCAM-1 markedly stimulates β2 integrin-mediated cell adhesion and migration [7]. Thus VCAM-1 was supposed to be an agonist for α4β1. Depending on the type of inflammatory responses, the α4β1 ligand and VCAM-1, expression was found at most vascular sites. α4β1 affinity modulation was found to potentially regulate a number of cellular functions such as adhesion, migration, and signaling. Studies proposed that α4β1 affinity determines the set point at which 1) VCAM-1 can stimulate αLβ2-dependent cell migration on ICAM-1 and 2) α4β1-dependent migration onVCAM-1 is regulated. In contrast, the activation of α4β1 was found to have little impact on static cell adhesion or adhesion in shear flow. The results suggested that the affinity state of α4 integrins governs the selection of preferred sites of integrin-dependent leukocyte transmigration [7].

Taken together, the findings from original work tracking cellular distribution pattern, cellular migration, secondary mobilization, homing and integration in the host tissue and functional response to specific stimuli indicate a dynamic relationship between immune cells of hematopoietic origin and structural cells of the tissue and indicates a systems biology approach to understanding the switches (cellular and non-cellular) that work in sequence as well as in tandem to regulate and de-regulate the cell migration patterns key to development of diseases and conversely the targets to reinstate homeostasis.

Summary findings & conclusion- Highlights

Observations

1. α-/- cells are slower to reconstitute

2. Increased haematopoiesis in all primary & secondary lymphoid organs in KO gr

3. Myeloid repopulation was similar in both groups

4. B cells, pro B cells, pre B cells, mature B cells significantly decreased in KO gr

5. Total T cells increased but activated T cells decreased in KO gr

6. Repopulation of thymus was significantly impaired in KO gr

7. CD+CD8+ was more in thymus and CD+ differentiation was skewed in KO gr

8. OVA-induced acute allergic asthma phenotype was impaired in all aspects

9. All PLNs show decreased mature B cells

10. Enhanced tendency of memory T cells (CD45RC-CD4+) to migrate to LNs in KO gr

11. Enhanced tendency of memory T cells (CD45RC+CD4+) to migrate to spleen & thymus

12. Functionality & homing impairment in KO gr

13. α-/- probably do not have a role to play during response to OVA per se, and neither to specifically T cell proliferation in response to the upstream cytokine signaling in response to OVA.

Salient findings and clinical implications

Various small molecules inhibitors for α4 integrin such as Tysabri (Roche) and integrin Beta2/CD18 antibodies products manufactured by Biolegend and Novus Biologicals and others which are specifically designed for modulation of the target molecule must take into account targeting strategies along with the timing of drug activation in a particular tissue (in pro drug formulation, through nano-vehicles for timed and tissue specific delivery. Positioning of PLO, SLO and inflamed tissue as nodes of cellular and information traffic and the network operative in specific temporal templates is crucial information for the success of such drugs. The role of α4 and β2 are very much cell specific and tissue specific, for example their role in bone marrow, blood, lung, interstitial tissue spaces, trachea, and lymph nodes are not uniform. The “kicking in” is initiated possibly by α4 during initiation and “priming” of the B cells and T cells.

1. The “changing gear” is possibly orchestrated by β2 during the effector phase of the disease development.

2. It is through the detailed mapping of such “switching on – switching off” information throughput of the cellular and noncellular role players, translational and personalized medicine may devise effective strategies in disease amelioration.

Analyzing available data in literature, some studies also showed that loss of α4β1 activation dramatically reduces the sensitivity of cells to VCAM-1-stimulated αLβ2-dependent cell migration. In contrast, defective α4β1 activation enhanced migration on purified VCAM-1 substrates, alone, and had little impact on static cell adhesion to VCAM- 1 or on adhesion in shear flow [7]. These results proposed that the activation of integrin α4β1 is involved in the specification of preferred anatomical sites of leukocyte transmigration from the vasculature. The mutant studies proposed that an alteration of element of the intrinsic signaling pathway is required for defective α4β1 activation in these cells. These α4β1 activation-defective cells provide a tool to study the role of α4β1 affinity modulation on T cell function. α4β1 affinity modulation is involved in regulating α4 signaling to β2 integrins. α4 integrins play a bifunctional role as signaling receptors as well as adhesion receptors [7]. α4 integrin signaling also affect the function of other integrin family members, their activation, suppression and crosstalk[ 8,9]. α4β1 signaling regulates β2-dependent cell adhesion and β2- dependent cell migration as well. The cell migration is stimulated by coimmobilization of VCAM-1, as a ligand for α4β1, and ICAM-1, as a ligand for β2 integrins [10,11].

Taken together, the cell movement of specific hematopoietic sub-populations seems to be under specific and transient control of α4 and β2 integrins from their sites of synthesis, the PLO through stepwise maturation via SLO and homing into inflammation nodes in tissues. From here again another set of responses by cells induced by a separate set of integrin combination and orchestrated through a different or same set of paracrine stimuli induced by the activation of the first pathway. The source cells(S1) secrete a set of soluble mediators (M1) such as SDF-1α and cytokines and activate a different set of cells which is the target (T1), in which as a response to M1, a set of genes get activated now. These either act on S1 (which now become T2) or T1 now become S2 and act on a third group of cells called T3 and so on and so forth. This series of allosteric and paracrine or autocrine modulation vis-a-vis α4 or α7 and β2 or β1when activated by specific signals target other cell populations in a series in sequence or in tandem and gives rise to the network that ultimately give rise to a certain disease phenotype. This study has tried to capture this systems study by cell biological observation through a series of specific cell subsets, which in a specific narrow spatio-temporal and tissue specific developmental and activation format establish the composite phenotype of asthma.

α4 &β2 integrins control cellular migration of all lymphoid subpopulations from BM (site of poiesis) to PLO and of some subpopulations from PLO to SLO but has no effect on myeloid poiesis or homing and functionality.
