Journal of Diabetes & Metabolism

ISSN - 2155-6156


Research Article - (2015) Volume 6, Issue 1

Alpha-Tocopherol Supplementation Diminishes the Renal Damage Caused by Experimental Diabetes

Tammy Fernández Romero1, Sonia Clapés Hernández1*, Gipsis Suárez Román1, Lucía González2, Sandra Rodríguez3 and María De LosÁngeles García4
1Department of Biochemistry, Institute of Basic and Pre-clinical Sciences, “Victoria de Girón” Havana Medical Sciences University, Cuba
2Institute of Nephrology, Havana, Cuba
3Laboratory of Electron Microscopy, National Center for Scientific Research, Havana, Cuba
4National Center of Medical Genetics, Havana, Cuba
*Corresponding Author: Sonia Clapés Hernández, Full Professor, Department of Biochemistry, Institute of Basic and Pre-clinical Sciences“Victoria de Girón” Havana Medical Sciences University, Cuba, Tel: 53 208-22-21 Email:


Background: Previous studies have shown alpha- tocopherol favorable effects on biochemical markers of kidney function and tissue damage in experimental models of diabetes. However, few reports highlight its effect in organ morphology and even less its impact during pregnancy. The main goal of this study was to evaluate the effect of alpha- tocopherol supplementation on the renal tissue morphology of diabetic pregnant rats.
Methods: Diabetes was induced in female Wistar rats after intraperitoneal administration of streptozotocin. Healthy rats without any preparation were used as control subjects. Diabetic and control rats were grouped by receiving oral alpha-tocopherol 150 mg/kg/day or the vehicle during pregnancy. Euthanasia was practiced by bleeding under anesthesia at 20 days of gestation. Metabolic markers in plasma were analyzed and the kidney cortex morphology was studied by optical and electron microscopy. Statistic studies were performed using Kruskal Wallis, U Mann-Withney, Dunn and Fisher tests; significant differences were considered with p<0.05.
Results: Diabetic rats presented a lower weight gain than the control group, hyperglycemia, hypercholesterolemia and morphological alterations on renal cortex, with increase in glomerular volume and 70% of tubular damage. A lower incidence of kidney lesions was observed in diabetic rats that received alpha- tocopherol, with similar glomerular volumes to the control and improved of tubular cells with only 36% of damage. Conclusions: The administration of alpha- tocopherol to diabetic rats during gestation showed a protective effect on the morphology kidney. This result would be related to the antioxidant action of alpha- tocopherol, but further studies are needed to confirm this.

Keywords: Diabetes in pregnancy; Oxidative stress; Renal damage; Alpha-tocopherol


Diabetes mellitus during pregnancy is associated with a high incidence of congenital malformations, spontaneous abortions, and maternal and neonatal morbidity and mortality [1-3]. The common complications in diabetic patients such as retinopathy, neuropathy, accelerated atherosclerosis and nephropathy are also added to the complications in reproduction and pregnancy [4]. Hyperglycemia is the most important factor in the progression of the complications because it induces inflammatory, metabolic, and hemodynamic changes [5] as well as oxidative stress [4].

Methods that alleviate the damage caused by diabetes will contribute to improve the mother´s and her offspring’s health, although an adequate metabolic control and pre-conceptional care are the basis for a successful pregnancy [6]. Different experimental models have shown that nutritional supplementation with antioxidants decreases conception losses and embryo-fetal dysmorphogenesis [7-13]. Vitamin E has been one of the most used antioxidants. Its main function is to interfere with the chain reaction of membrane lipids peroxidation [14]; besides, it has been suggested to be a regulator of gene expression and cell signaling [15].

Vitamin E supplementation like alpha-tocopherol has been reported to induce beneficial effects on the morphology and function of diabetic kidneys in humans [16] and non-pregnant rats [17-22]. However, little is still known about the effect of this antioxidant on the kidney morphology during gestation [23,24]. The main goal of this study was to evaluate the effect of alpha- tocopherol supplementation on the kidney structure of diabetic pregnant rats.

Materials and Methods

Diabetes and pregnant experimental model

Female Wistar rats were obtained from the center of breeding of experimental animals in Havana (CENPALAB). They were maintained in an experimental room under controlled conditions of temperature (22 ± 2°C), humidity (50 ± 10%), and a 12-hour light/dark cycle for a week [25].

Diabetes was induced in 200 ± 20 gm rats by intraperitoneal injection of streptozotocin (Applichem) 65 mg/kg in 200 uL of citrate buffer 0.1M pH 4.7 [25]. Control group received an injection of citrate buffer 0.1M pH 4.7. One week later diabetes was diagnosed when blood glucose level was higher than 200 mg/dL (11 mM) [26] (Bayer Glucometer).

Diabetic and control rats were mated with non-diabetic males and the morning on which sperm was found in the vaginal smear was designated as pregnancy day 0 [7]. Diabetic rats were randomly assigned to two of the three experimental groups: DE: with alphatocopherol administrated by oral gavage (150 mg/kg/day) [7] and DV: another diabetic group with vehicle (NaCl 0.9%); 20 rats comprise each diabetic group. The control group (C) includes ten animals without any treatment.

The glucose level was determined during the zero, six, eleven and twenty days of gestation in every group to confirm diabetes. Euthanasia was practiced by bleeding under anesthesia [27] (sodium thiopental 50- 60 mg/kg and puncture of the inferior vena cava).

Blood metabolic markers

The blood was used to determine the indicators of metabolic status in plasma: glucose, cholesterol, triglycerides, creatinine, uric acid, total proteins, and albumin (commercial diagnostic kits HELFA, QUIMEFA Epb. Carlos J. Finlay, Havana).

Histopathological evaluation of kidney

The weight of the right kidney of all rats was evaluated. Five animals were randomly selected in each group for the analysis of the kidney cortex by optic microscopy and three of them in each group for the study by transmission electron microscopy.

For optical microscopy, a fragment of the right kidney cortex was fixed in 10% neutral formol buffered with NaH2PO4 0.03M-Na2HPO4 0.05M buffer pH 7.0. Tissues were embedded in paraffin and cuts were made with 3-4 μm thickness. Staining with hematoxylin-eosin was performed.

Both an Olympus BH2 microscope and a digital Nikon Coolscope microscope were used to observe the lamina of the kitney cortex. The glomerular volume was measured as the area of the glomeruli which were cut transversely (60-100 per rat), with the help of the morphometric program Image J [28] and the formula of Weibel and Gómez [29]. Damage in the proximal tubules which were cut transversely (about 40 per rat) was also analyzed. Presence of dilatation, intra-cytoplasmic vacuolization and cellular atrophy (apoptotic nuclei, basement membrane denudation, and cell desquamation in the tubular lumen) were considered; the normal structure was marked as 0 and the presence of some damage was marked as 1.

For the electron microscopy study, a right kidney cortex fragment was fixed in glutaraldehyde (3.2%) and osmium tetroxyde (2%) in NaH2PO4 - Na2HPO4 50 mM buffer, pH 7.2-7.4. Dehydration was carried out with 10%- 100 % acetone and it was included in Spurr resin blocks [30]; 1 μm cuts were performed (Leica Ultracut R ultramicrotome), which were stained with Stevenel´s blue [31] for the glomeruli identification, and 50-60 nm cuts were also performed with glass knifes, which were contrasted with uranil acetate and lead citrate. A JEOL 1010 (JEOL Peabody MA) microscope with a fitted digital camera was used, and the characteristics of the basal membrane, the cytoskeleton, the organelles and the extension of the podocytes in the glomeruli were analyzed, as well as the characteristics of the organelles and the timing of brush of the proximal tubule.

Ethical considerations

All experimental procedures were approved by the University Committee of Ethics in Animal Experimentation, which assures adherence to the standards established by the Guide for the Care and Use of Laboratory Animals [32].

Statistical analysis

Graph Pad Prism 5.0 was used to apply the Kruskal-Wallis, Dunn and Fisher statistical inference tests for the renal study. The INFOSTAT program and the Statistical package 8 with the Kruskal Wallis and U Mann-Whitney tests were applied for the rest of the variables. The differences were considered statistically significant with values of p<0.05.


Diabetic rats presented less weight gain than the control group, independently of receiving the supplement or not (DV 89.4 g, DE 78.4 g, C 111.9 g p=0.0014). The results of the blood chemistry variables are shown in Table 1.

(references) [33]
Study groups
(3-7 mM)
15.7± 7.6 19.5 ± 8.8 5.5 *± 0.9
(0.5-2.5 mM)
3.5 ± 1.6 4.0 ± 1.7 2.2 ≠ ± 1.0
(0.3-1.2 mM)
3.4± 3.1 2.8 ± 3.2 3.2 ± 1.7
(50-70 g/L)
54.9 ± 8.1 60.0± 11.1 56.3 ± 9.4
(33-49 g/L)
33.7± 6.0 34.9± 7.1 33.0 ± 3.7
(50-250 µM)
198.5 ± 89.0 218.0± 67.8 158.0 ± 43.8
(5-50 µM)
88.6± 20.6 65.7± 21.5 66.3 ± 25.4
DV diabetic with vehicle; DE diabetic with α-tocopherol, C control
*It expresses differences with regard to the rest of the groups (Kruskal Wallis p˂0.0001)
≠ It expresses differences with regard to the rest of the groups (Kruskal Wallis p˂0.0001)

Table 1: Blood chemistry levels of maternal markers.

Qualitative analysis by optical microscopy of the renal cortex of diabetic rats without alpha- tocopherol revealed several defects when compared to the control group (Figures 1I and 1II). In particular, capillary dilatation in the interstitium and atrophy in extensive zones in the proximal tubules, alternating zones with not alterations (Figure 1III). Diffuse tubular damage was also observed in this group, which was characterized by luminal dilatation, epithelial smoothing and denudation. The increase in glomeruli size was due to a diffuse mesangial increase; we think this is due in part to the matrix and cells. Also, the glomeruli showed a marked obliteration of capillaries, hypertrophic podocytes, and thickening of the wall of the arterioles (Figure 1IV). A lower incidence of these lesions in the renal cortex was observed in the group of diabetic rats that received alpha- tocopherol (Figures 1V and 1VI).


Figure 1: Representative hematoxylin -eosin staining photograph of rat kidney cortex. I and II: control group; III and IV: diabetic group with vehicle; V and VI: diabetic group supplemented with alpha-tocopherol. G-glomeruli, T-proximal tubules, M-mesangio, A-arteriole, C-capillaries.

To study the renal cortex further, electron microscopy was performed. The renal cortex of diabetic rats that not received the vitamin supplementation presented several defects when compared to the control group (Figures 2I, 2II and 2III). In particular, intermittent irregular glomerular basement membrane thickening (Figure 2IV), alteration of the cytoarchitecture of the podocytes with a big quantity of vacuoles and fused feet in extensive zones forming smooth structures (Figure 2IV and 2V). In addition, the proximal tubules presented tubules (Figure 2IX) was found in this group. Also the podocytes appeared with little or none fusion of the feet (Figure 2VIII).


Figure 2: Representative pictures obtained by transmission electron microscopy of rat kidney cortex. I, II, III: control group. Panels IV, V, VI diabetic group with vehicle; VII, VIII, IX: diabetic group supplemented with alpha- tocopherol. * glomerular basement membrane, Pd-pedicels, MV-microvillis, LT- tubular light, N-nucleus of tubular epithelial cell.

To further characterize the changes in the renal cortex, we calculated the glomerular volume in the different groups. This was increased in the diabetic group with no supplementation in a statistically significant manner when compared with the control group (Figure 3A). Indeed, the renal damage measured by damaged in the proximal tubules, increased to a 70% in diabetic –non treated pregnant rats compared to the controls (Figure 3B). On the other hand, it was observed that in rats with the supplement, the glomeruli had similar volumes to the controls and only a 36% of the proximal tubules were damaged (Figure 3A and 3B).

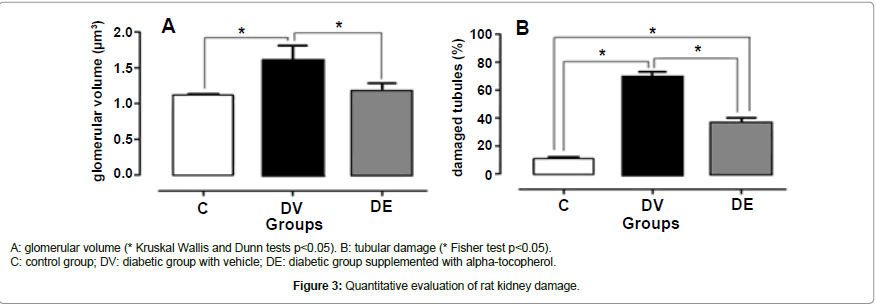

Figure 3: Quantitative evaluation of rat kidney damage.


The main results of the present work include the description by optical and electron microscopy of the lesions in the renal cortex of the pregnant diabetic rats and the protective effect of supplementation with alpha-tocopherol during pregnancy on kidney.

The increase observed in triglycerides and creatinine in all groups including the control ones (Table 1) suggests metabolic changes which are common during pregnancy [34,35]. Furthermore, diabetic rats showed a smaller body weight gain, hyperglycemia and hypercholesterolemia which characterize uncontrolled diabetes mellitus and alpha- tocopherol did not cause any kind of effect. There are reports with similar results to these ones in analogue animal models [19,36] and in humans [37,38].

The first alterations of diabetic nephropathy include hyperfiltration, epithelial tubular and glomerular hypertrophy, and the development of microalbuminuria. Subsequently, a thickening of the basal glomerular membrane, an accumulation of the mesangial matrix, proteinuria, and glomerulo sclerosis are produced, which, if this state progresses, would lead to a terminal renal failure. The accumulation of mesangial matrix reduces the capillary filtration surface area, leading to a progressive loss of the renal function [39]. An impaired Glomerular Filtration Rate (GFR) is the final common pathway of diabetic kidney disease. Once the GFR is impaired, cardiovascular disease events and progression to end-stage renal disease occur at unacceptably high rates, even with proven medical management. This underscores the need for the primary prevention of impaired GFR in persons with diabetes [40].

A high incidence of glomerular, tubular and interstitial damage was observed in diabetic rats during this study, what means that this experimental model could be considered in future studies of diabetic nephropathy.

Several mechanisms have been considered in the progression of complications of diabetes, being hyperglycemia the most important factor. In the renal tissues, the input of glucose does not depend on the insulin; this way, in conditions of hyperglycemia, the tissue is exposed to the harmful effects caused by the high concentrations of glucose. This includes metabolic changes that provoke oxidative stress and the activation of pro-inflammatory ways that mediate in damage of the renal tissue [4]. For that reason, the fact to find the methods to counteract the alteration of the REDOX homeostasis and the exposure to pro-inflammatory cytokines in diabetes is a key for the prevention of complications, being the antioxidants the therapeutic candidates which have been evaluated by other researchers.

Previous studies have considered the effect of vitamin E on diabetic nephropathy because of its proven antioxidant effect. The supplementation with different forms of this vitamin has prevailed on the reduction of albumin excretion in humans [16]. On the other hand, proteinuria, urea and creatinine diminished in the blood of nonpregnant diabetic rats, as well as the inflammatory response and the oxidative stress [17-22]. There are few reports concerning pregnant diabetic rats, but favorable effects have been observed on renal function, decrease of oxidative stress and glomerular damage [24].

This study provides evidences by optical and electron microscopy for the fact that the supplementation with alpha-tocopherol in pregnant diabetic rats led to the normalization in the volume of glomeruli and minimized the tubular damage and another kind of damage in structures of the renal cortex. Similar results have been observed in another experimental study with aged garlic extract, a natural antioxidant [41].

On the other hand, previous studies have shown a reduction in the markers of oxidative damage in biomolecules such as lipids [17,19- 22] and proteins [20], and an increase in the antioxidant defenses mediated by a reduced glutathione [23], associated with an improve of the renal function in the diabetic rats supplemented with vitamin E. Current thought is that epigenetic effects of nutrients and other dietary factors (for example, antioxidants) during embryonic development can modify susceptibility to developing chronic diseases [42].


The administration of alpha- tocopherol to diabetic rats during gestation showed a protective effect on the morphology kidney. This result would be related to the antioxidant action of alpha- tocopherol, but further studies are needed to confirm this.


  1. Mathiesen ER,Ringholm L, Damm P (2011) Stillbirth in diabetic pregnancies. Best Pract Res ClinObstetGynaecol 25: 105-111.
  2. Higgins M,Felle P, Mooney EE, Bannigan J, McAuliffe FM (2011) Stereology of the placenta in type 1 and type 2 diabetes. Placenta 32: 564-569.
  3. Eriksson UJ,Wentzel P (2012) Diabetic embryopathy. Methods MolBiol 889: 425-436.
  4. Giacco F, Brownlee M (2010) Oxidative stress and diabetic complications. Circ Res 107: 1058-1070.
  5. Ichinose K, Kawasaki E, Eguchi K (2007) Recent advancement of understanding pathogenesis of type 1 diabetes and potential relevance to diabetic nephropathy. Am J Nephrol 27: 554-564.
  6. Mattos I, Rodrigues LT, Damasceno DC, Vieira M (2007) Diabetes and pregnancy: an update of the problem.Annu Rev Biomed Sci  9: 1-11
  7. Viana M, Herrera E, Bonet B (1996) Teratogenic effects of diabetes mellitus in the rat. Prevention by vitamin E. Diabetologia 39: 1041-1046.
  8. Simán CM,Gittenberger-De Groot AC, Wisse B, Eriksson UJ (2000) Malformations in offspring of diabetic rats: morphometric analysis of neural crest-derived organs and effects of maternal vitamin E treatment. Teratology 61: 355-367.
  9. Viana M, Castro M, Barbas C, Herrera E, Bonet B (2003) Effect of different doses of vitamin E on the incidence of malformations in pregnant diabetic rats. Ann NutrMetab 47: 6-10.
  10. Cederberg J, Eriksson UJ (2005) Antioxidative treatment of pregnant diabetic rats diminishes embryonic dysmorphogenesis. Birth Defects Res A ClinMolTeratol 73: 498-505.
  11. Wentzel P, Eriksson UJ (2005) A diabetes-like environment increases malformation rate and diminishes prostaglandin E(2) in rat embryos: reversal by administration of vitamin E and folic acid. Birth Defects Res A ClinMolTeratol 73: 506-511.
  12. Cederberg J,Simán CM, Eriksson UJ (2001) Combined treatment with vitamin E and vitamin C decreases oxidative stress and improves fetal outcome in experimental diabetic pregnancy. Pediatr Res 49: 755-762.
  13. Gäreskog M, Eriksson UJ, Wentzel P (2006) Combined supplementation of folic acid and vitamin E diminishes diabetes-induced embryotoxicity in rats. Birth Defects Res A ClinMolTeratol 76: 483-490.
  14. Pazdro R, Burgess JR (2010) The role of vitamin E and oxidative stress in diabetes complications. Mech Ageing Dev 131: 276-286.
  15. Hajiani M, Razi F, Golestani A, Frouzandeh M, Owji AA, et al. (2012) Time- and dose-dependent differential regulation of copper-zinc superoxide dismutase and manganese superoxide dismutase enzymatic activity and mRNA level by vitamin E in rat blood cells. Redox Rep 17: 101-107.
  16. Farvid MS,Jalali M, Siassi F, Hosseini M (2005) Comparison of the effects of vitamins and/or mineral supplementation on glomerular and tubular dysfunction in type 2 diabetes. Diabetes Care 28: 2458-2464.
  17. Montero A,Munger KA, Khan RZ, Valdivielso JM, Morrow JD, et al. (2000) F(2)-isoprostanes mediate high glucose-induced TGF-beta synthesis and glomerular proteinuria in experimental type I diabetes. Kidney Int 58: 1963-1972.
  18. Koya D, Hayashi K, Kitada M, Kashiwagi A, Kikkawa R, et al. (2003) Effects of antioxidants in diabetes-induced oxidative stress in the glomeruli of diabetic rats. J Am SocNephrol 14: S250-253.
  19. Haidara MA,Mikhailidis DP, Rateb MA, Ahmed ZA, Yassin HZ, et al. (2009) Evaluation of the effect of oxidative stress and vitamin E supplementation on renal function in rats with streptozotocin-induced Type 1 diabetes. J Diabetes Complications 23: 130-136.
  20. Qian P, Cheng S, Guo J, Niu Y (2000) [Effects of vitamin E and vitamin C on nonenzymaticglycation and peroxidation in experimental diabetic rats]. Wei Sheng Yan Jiu 29: 226-228.
  21. Jachea W,Tomasik A, Tarnawski R, Chwaliaka E (2002) Evidence of oxidative stress in the renal cortex of diabetic rats: favourable effect of vitamin E. Scand J Clin Lab Invest 62: 81-88.
  22. Park NY, Park SK, Lim Y (2011) Long-term dietary antioxidant cocktail supplementation effectively reduces renal inflammation in diabetic mice. Br J Nutr 106: 1514-1521.
  23. Simsek M, Naziroglu M, Erdinç A (2005) Moderate exercise with a dietary vitamin C and E combination protects against streptozotocin-induced oxidative damage to the kidney and lens in pregnant rats. ExpClinEndocrinol Diabetes 113: 53-59.
  24. Nash P, Eriksson UJ (2007) Suramin-restricted blood volume in the placenta of normal and diabetic rats is normalized by vitamin E treatment. Placenta 28: 505-515.
  25. Sakamaki H, Akazawa S, Ishibashi M, Izumino K, Takino H, et al. (1999) Significance of glutathione- dependent antioxidant system in diabetes- induced embryonic malformations. Diabetes 48: 1138-1144.
  26. Damasceno DC,Volpato GT, de MattosParanhos Calderon I, Cunha Rudge MV (2002) Oxidative stress and diabetes in pregnant rats. AnimReprodSci 72: 235-244.
  27. American Association for Laboratory Animal Science (2006) Laboratory mouse handbook. Crestwyn Hills Drive: Menphis, USA.
  28. Rasband W. ImageJ: A public domain Java image processing program. National Institute of Mental Health, Bethesda, Maryland, USA.
  29. Sung JK, Koh JH, Lee MY, Kim BH, Nam SM, et al. (2010) Aldose reductase inhibitor ameliorates renal vascular endothelial growth factor expression in streptozotocin-induced diabetic rats. Yonsei Med J 51: 385-391.
  30. Spurr AR (1969) A low-viscosity epoxy resin embedding medium for electron microscopy. J Ultrastruct Res 26: 31-43.
  31. del Cerro M, Cogen J, del Cerro C (1980) Stevenel's Blue, an excellent stain for optical microscopical study of plastic embedded tissues. MicroscActa 83: 117-121.
  32. Institutes for Laboratory Animal Research, National Research Council (1996) Guide for the Care and Use of Laboratory Animals. National Academy Press, Washington, DC, USA.
  33. Puerta CV (1993) Manual de experimentación animal. Valladolid: Secretariado de Publicaciones Universidad de Valladolid.
  34. Neboh EE,Emeh JK, Aniebue UU, Ikekpeazu EJ, Maduka IC, et al. (2012) Relationship between lipid and lipoprotein metabolism in trimesters of pregnancy in Nigerian women: Is pregnancy a risk factor? J Nat SciBiol Med 3: 32-37.
  35. Toescu V,Nuttall SL, Martin U, Kendall MJ, Dunne F (2002) Oxidative stress and normal pregnancy. ClinEndocrinol (Oxf) 57: 609-613.
  36. Damasceno DC,Volpato GT, de MattosParanhos Calderon I, Cunha Rudge MV (2002) Oxidative stress and diabetes in pregnant rats. AnimReprodSci 72: 235-244.
  37. Engelen W,Keenoy BM, Vertommen J, DeLeeuw I (2000) Effects of long-term supplementation with moderate pharmacologic doses of vitamin E are saturable and reversible in patients with type 1 diabetes. Am J ClinNutr 72: 1142-1149.
  38. Park S, Choi SB (2002) Effects of alpha-tocopherol supplementation and continuous subcutaneous insulin infusion on oxidative stress in Korean patients with type 2 diabetes. Am J ClinNutr 75: 728-733.
  39. Zafar M, Naeem-ul-Hassan Naqvi S, Ahmed M, Kaimkhani ZA (2009) Altered kidney morphology and enzymes in streptozotocin induced diabetic rats. Int J Morphol 27: 783-790
  40. DCCT/EDIC Research Group, de Boer IH, Sun W, Cleary PA, Lachin JM, et al. (2011) Intensive diabetes therapy and glomerular filtration rate in type 1 diabetes. N Engl J Med 365: 2366-2376.
  41. Shiju TM, Rajesh NG, Viswanathan P (2013) Renoprotective effect of aged garlic extract in streptozotocin-induced diabetic rats. Indian J Pharmacol 45: 18-23.
  42. Szeto IM, Das PJ, Aziz A, Anderson GH (2009) Multivitamin supplementation of Wistar rats during pregnancy accelerates the development of obesity in offspring fed an obesogenic diet. Int J Obes (Lond) 33: 364-372.
