Research Article - (2017) Volume 6, Issue 1

Noninvasive Flap Monitoring using Sidestream Dark Field Microscan: A Method for Real-Time Observation of Submilimmetric Vessels

Ricardo A Yañez1*, Jose R Rodriguez1, Ignacio J Cifuentes1, Bruno L Dagnino1, Sebastian A Sepulveda2, Arturo A Meissner4, Rodrigo A Menchaca4 and Glenn W Hernandez4
1Section of Plastic and Reconstructive Surgery, School of Medicine, Pontifical Catholic University of Chile, Santiago, Chile
2Experimental Surgery and Simulation Center, School of Medicine, Pontifical Catholic University of Chile, Santiago, Chile
3Department of Critical Care Medicine, School of Medicine, Pontifical Catholic University of Chile, Santiago, Chile
4School of Medicine, Pontifical Catholic University of Chile, Chile
*Corresponding Author: Ricardo A Yañez, Section of Plastic and Reconstructive Surgery, School of Medicine, Chile, Tel: 56992209053 Email:

Abstract

A timely diagnosis of vascular compromise improves free flap survival. The aim of this study was to determine the feasibility of monitoring flap vascular patency through noninvasive microcirculation monitoring using SDF. An experimental study was performed in five volunteers. A radial forearm flap was simulated in both upper extremities and cutaneous microcirculation assessment devices were used (SDF and NIRS), and compared with clinical and doppler evaluation. Conditions of venous occlusion (VO) and total vascular occlusion (TVO) were mimicked by using a cuff. The results of the Microscan SDF monitoring during VO and TVO showed a reduced microcirculatory flow at 16.5 (6-30) and 6 (2-11) seconds respectively. Both NIRS and clinical evaluation were slower than SDF at identifying vascular compromise. During VO the Doppler signal does not disappear; while in TVO the signal disappeared at 1.8 (1-5) seconds. This study shows that evaluation of microcirculation with Microscan SDF is a viable alternative that may allow detection of flap venous and total vascular occlusion earlier than Doppler, NIRS and clinical evaluation

Keywords: Microsurgery; Evaluation; Microcirculation; Monitoring

Introduction

The postoperative monitoring of free flaps following microsurgical reconstruction is as critical as the procedure itself. Flap survival rates reported in the literature are approximately 95% and above in large case series in which revision surgery was performed on patients with signs of vascular compromiso [1,2]. Evidence has shown that early detection of vascular insufficiency coupled with timely reoperation allows to rescue the flap and avoid flap failure. The reported salvage rates of flaps with anastomotic thrombosis are approximately 50% and are directly related to the time between the occlusion and surgical correction [3].

Microsurgical flaps are usually monitored by clinical evaluation, however, more objective and noninvasive methods that allow early detection of thrombotic events have been developed, including external Doppler, thermography and near infrared spectroscopy (NIRS) [4,5].

Sidestream dark field (SDF) Microscan is a method for microcirculation assessment which relays on direct visualization of blood flow in capillaries. It has been used in critical care patients to evaluate resuscitation goals.

Various types of monitoring strategies have been evaluated in clinical studies. However, to date there is still no agreement on the ideal method of postoperative control for microsurgical flaps.

The purpose of this study is to determine whether monitoring microcirculation with SDF Microscan® is a feasible and adequate method for detection of free flap vascular complications.

Methods

The postoperative monitoring of free flaps following microsurgical reconstruction is as critical as the procedure itself. Flap survival rates reported in the literature are approximately 95% and above in large case series in which revision surgery was performed on patients with signs of vascular compromiso [1,2]. Evidence has shown that early detection of vascular insufficiency coupled with timely reoperation allows to rescue the flap and avoid flap failure. The reported salvage rates of flaps with anastomotic thrombosis are approximately 50% and are directly related to the time between the occlusion and surgical correction [3].

Microsurgical flaps are usually monitored by clinical evaluation, however, more objective and noninvasive methods that allow early detection of thrombotic events have been developed, including external Doppler, thermography and near infrared spectroscopy (NIRS) [4,5].

Sidestream dark field (SDF) Microscan is a method for microcirculation assessment which relays on direct visualization of blood flow in capillaries. It has been used in critical care patients to evaluate resuscitation goals.

Various types of monitoring strategies have been evaluated in clinical studies. However, to date there is still no agreement on the ideal method of postoperative control for microsurgical flaps.

The purpose of this study is to determine whether monitoring microcirculation with SDF Microscan® is a feasible and adequate method for detection of free flap vascular complications.

Methods

This study was conducted at the Experimental Surgery Laboratory of Pontificia Universidad Católica de Chile and was approved by the Scientific Ethics Committee - CEC MED UC (protocol no. 15-128).

Five healthy volunteers were recruited as subjects, with ages ranging from 21 to 33 years, the limits of a radial forearm flap where drawn in the distal third of both anterior forearms. A perforator vessel inside the design was identified and marked with a handheld Doppler. The baseline cutaneous microcirculation of the simulated area of the flap was assessed using the Sidestream dark field (Microscan SDF) and near infrared spectroscopy (NIRS) (Figure 1). Venous and total vascular occlusions were achieved using a cuff (Welch Allyn DS65, Skaneateles Falls, NY, USA) for 180 seconds, and changes were monitored with each method. The venous occlusion was obtained at 50 mmHg and total vascular occlusion was obtained at 250 mmHg as per values shown in human studies [6]. A clinical evaluation was also performed using the method standardized by Chen KT et al. (temperature, color, capillary refill). The presence or absence of flow in the perforator vessel was also monitored using a handheld sound Doppler during both venous and total vascular occlusions [5].

anaplastology-radial-forearm-distal

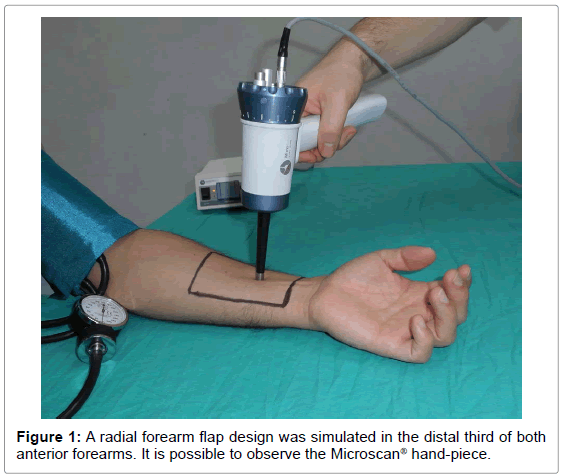

Figure 1: A radial forearm flap design was simulated in the distal third of both anterior forearms. It is possible to observe the Microscan? hand-piece.

Measurements

a) NIRS: Oxygen saturation (StO2) is obtained by spectroscopy. We employed the Spectra StO2 Spot Check (model 300) ® to collect the data. A skin sensor device was installed in the area over the perforator vessel of the simulated designed flap. The baseline register began one minute before vessel occlusion. The measurement was maintained throughout the occlusion of the vessel and StO2 was continuously recorded. A StO2 decrease in 50% of the baseline was considered diagnostic of impaired microcirculation [7,8].

b) Microscan SDF: Polarized light videomicroscopy is a technique that allows noninvasive evaluation of microcirculation. It is a portable video-microscope (Microscan®, Microvision Medical, Amsterdam, Holland) that emits polarized light at 550 nm. The light is absorbed by hemoglobin and reflected by other structures. The displayed image is obtained by contrast, and the passage of red blood cells in the microcirculation is visualized. These video images are obtained through the portable video-microscope handpiece and visualized in a monitor screen beside the subject. Then all images were recorded and analyzed. The Microvascular Flow Index (MFI) was used, which is a semiquantitative indicator that classifies the predominant flow pattern into one of 4 categories (0 flow absence, 1 intermittent flow, 2 slow flow and 3 normal flow). These values were previously validated for quantitative analysis of microcirculatory flow [9-11].

c) Handheld Sound Doppler was used before, during, and after occlusion of the identified perforator vessels with an pocket 8 MHz Doppler SonoTrax Lite®.

d) Temperature of the skin inside the flap design was recorded every 10 seconds during the procedure for clinical evaluation. The temperature was obtained with an infrared clinical Beurer JFT-90® Thermometer (Beurer GmbH, Ulm, Germany).

Statistical analysis

We compared the median time from vascular occlusion to a perfusion impairment diagnosis using the methods previously described from venous and total vascular occlusion.

The categorical variables were expressed as absolute numbers and percentages. The quantitative variables were reported as medians and ranges. The inferential analysis was performed using the Mann- Whitney/Wilcoxon test for quantitative variables and χ2 was used for categorical variables. An alpha level of 5% was used for testing. SPSS®21 data analysis software was used.

Results

Using Microscan SDF, we obtained a diminished MFI at 16.5 (6-30) seconds after vein occlusion and flow absence at 91 (29-191) seconds (Figure 2). After releasing the venous occlusion, the return of microcirculatory flow was observed at 7 (1-54) seconds (Figure 3). When a total vascular occlusion was performed, a decrease of MFI at 6 (2-11) seconds and flow absence at 13 (2-54) seconds was observed. After releasing the occlusion, microcirculatory flow returned at 3.5 (1-34) seconds (Figure 4). The difference between the decrease in the microcirculatory flow for venous occlusion and total vascular occlusion was statistically significant. The venous occlusion was detected at 16.5 (6-30) seconds and total vascular occlusion was detected at 6 (2-11) seconds (p<0.0001). The time between occlusion and flow absence was 91 (54-191) seconds in venous occlusion and 13 (2-54) seconds in total vascular occlusion (p<0.009). The time from release of the occlusion until flow normalization was similar between venous and total vascular occlusion. The time was 7 (1-54) seconds for venous and 3.5 (1-34) seconds for total vascular occlusion (p<0.051). A comparison of results with SDF between each forearm was performed in the same subject and no differences were observed. After venous occlusion in the right and left forearms absence of flow occurred at 85 (29-149) seconds and 92 (54-191) seconds respectively (p<0.26). The results obtained for total vascular occlusion were not significantly different at 18 (2-53) seconds for the right and 11 (4-54) seconds for the left forearm (p<0.34).

anaplastology-microvascular-venous-occlusions

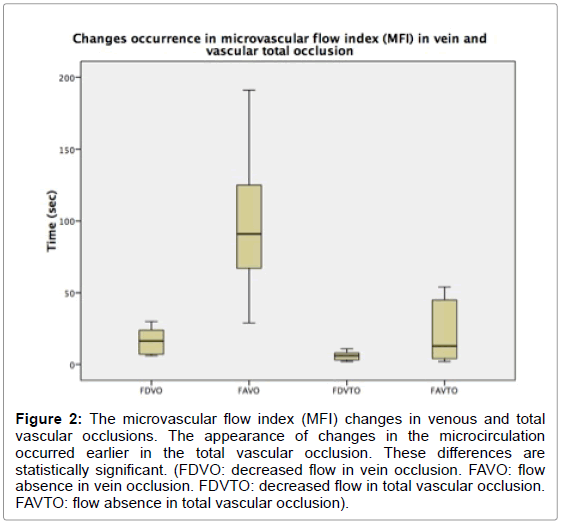

Figure 2: The microvascular flow index (MFI) changes in venous and total vascular occlusions. The appearance of changes in the microcirculation occurred earlier in the total vascular occlusion. These differences are statistically significant. (FDVO: decreased flow in vein occlusion. FAVO: flow absence in vein occlusion. FDVTO: decreased flow in total vascular occlusion. FAVTO: flow absence in total vascular occlusion).

anaplastology-vein-occlusion-flow

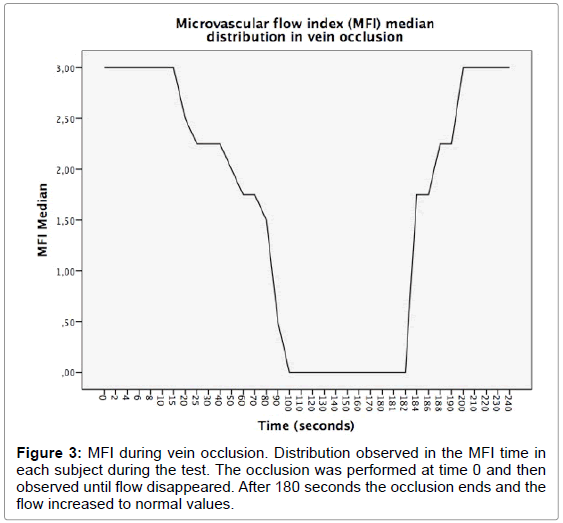

Figure 3: MFI during vein occlusion. Distribution observed in the MFI time in each subject during the test. The occlusion was performed at time 0 and then observed until flow disappeared. After 180 seconds the occlusion ends and the flow increased to normal values.

anaplastology-vascular-occlusion-flow

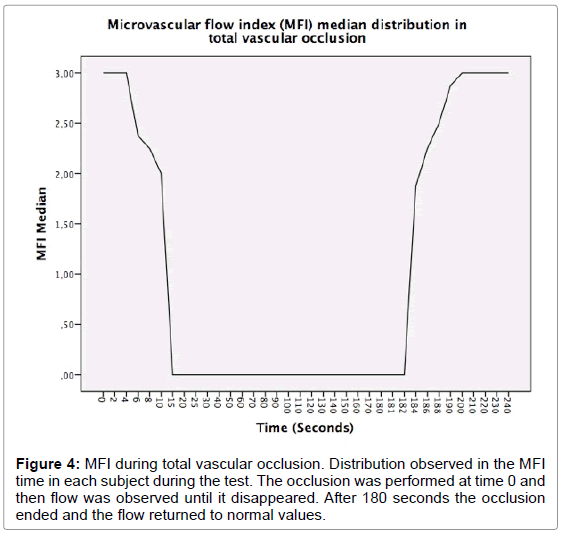

Figure 4: MFI during total vascular occlusion. Distribution observed in the MFI time in each subject during the test. The occlusion was performed at time 0 and then flow was observed until it disappeared. After 180 seconds the occlusion ended and the flow returned to normal values.

The following video shows the images obtained with Microscan SDF in the study: https://vimeo.com/user30321905/ microcirculationevaluationsdf.

Measurements with NIRS showed that after venous occlusion the decrease in StO2 percentage was 13.3 ± 3% at 120 seconds and 19.4 ± 5.2% at 180 seconds. These results did not reach the criteria for perfusion abnormality (50% decrease). In the total vascular occlusion model the StO2 percentage decrease was 25.6 ± 12% at 120 seconds and 38.1 ± 18.6% 180 seconds. There was a reduction of at least 50% in StO2 in three out of 10 measurements performed at 158.3 (130-180) seconds (Figure 5). The difference in StO2 decrease between the venous and total vascular occlusions at 180 seconds was statistically significant (p<0.0001) (Figure 6).

anaplastology-initiation-vascular-occlusions

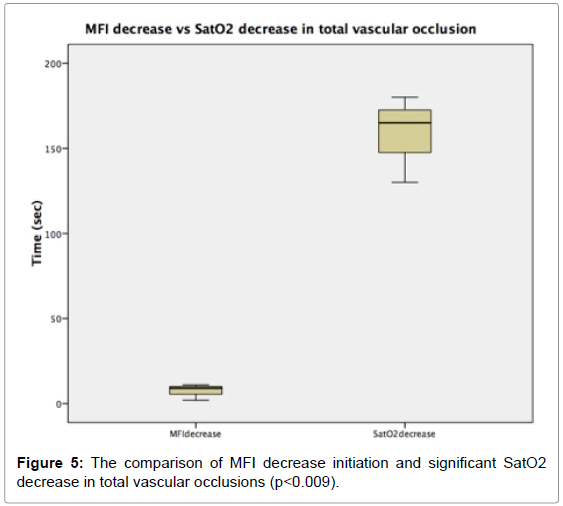

Figure 5: The comparison of MFI decrease initiation and significant SatO2 decrease in total vascular occlusions (p<0.009).

anaplastology-venous-vascular-occlusion

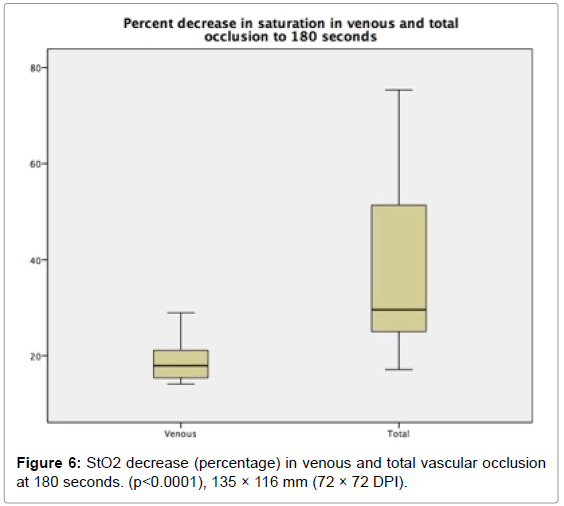

Figure 6: StO2 decrease (percentage) in venous and total vascular occlusion at 180 seconds. (p<0.0001), 135 × 116 mm (72 × 72 DPI).

Evaluation of perforator vessel patency was performed using the handheld Doppler. Doppler signal did not disappear during venous occlusion and remained present throughout the procedure. When total vascular occlusion was performed, the median time until Doppler sound was lost was 1 second (1-5).

Monitoring of clinical changes during the venous occlusion phase observed congestion at 60 (50-80) seconds, accelerated capillary refill (<2”) at 60 (20-80) seconds, and changes in the temperature in five out of ten measurements (increase 1.2 ± 0.3ºC) at 3 minutes. During total vascular occlusion congestion became apparent at 62.5 (50-150) seconds, slowed down capillary refill (>2 seconds) was detected at 52.5 (40-90) seconds, pallor was reported in three out of ten measurements at 100 (55-105) seconds, and changes in temperature were seen in four out of ten measurements (decrease 0.8 ± 0.4ºC).

Discussion

The reported free flap loss in microsurgery is currently less than 5%, going as low as 2% in some series [12]. Revision surgery has shown salvage rates of potential failures of up to 80% of the reoperations [10,11]. The evidence indicates that early detection and exploration of the flap vascular compromise increases survival rates significantly [13-16].

Several methods of postoperative flap monitoring are available today. However, there is no established standard monitoring method [17]. Early detection and treatment of vascular failure and circulatory compromise of the flap is imperative because ischemia leads to irreversible metabolic changes as time elapsed since its appearance increases [18,19].

This study evaluated the feasibility of flap monitoring through noninvasive capillary microcirculation assessment with SDF which allows direct visualization of blood flow, [20] a method already widely used in shock patients in intensive care units and which requires minimal training for adequate implementation by health personnel. Microcirculation assessment has been used mainly for microsurgical monitoring in animal studies. There is only one case report of microcirculation evaluation in a DIEP flap in a human patient, that only described the method [21,22].

The ability of SDF to detect impaired perfusion was tested and compared with other existing methods used for evaluation of free flap vascular status, including clinical monitoring, Doppler, and NIRS.

SDF monitoring allowed earlier diagnosis of impaired microcirculation in both venous and total vascular occlusions when compared with NIRS. There were several cases in which NIRS failed to show significant changes. The blood flow impairment detection by SDF occurred earlier than Doppler in venous occlusion. The onset of congestion and accelerated capillary refill in the flap as clinical changes were also detected later than impaired microcirculation identified by SDF (Figure 7). During total vascular occlusion loss of Doppler signal was observed earlier than absence of microcirculation flow obtained with SDF. However, the changes in microcirculation were observed before any clinical change (capillary refill, pallor) (Figure 8). Reduced venous flow is the earliest event in the vast majority of flap failures in microsurgery. Thus, SDF is potentially a useful method for early detection of flaps at risk of failure.

anaplastology-venous-occlusions-microcirculation

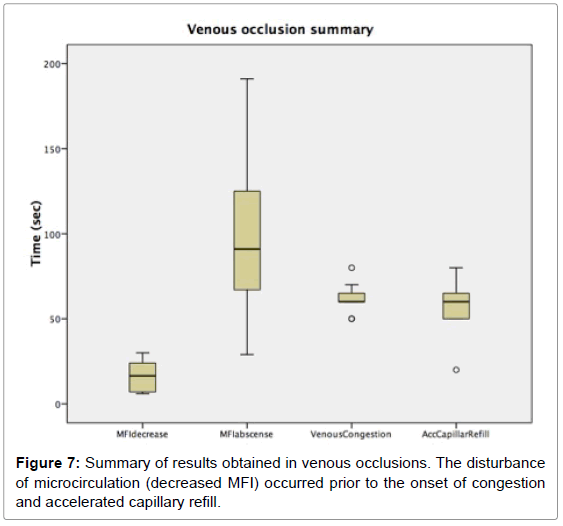

Figure 7: Summary of results obtained in venous occlusions. The disturbance of microcirculation (decreased MFI) occurred prior to the onset of congestion and accelerated capillary refill.

anaplastology-vascular-occlusion-congestion

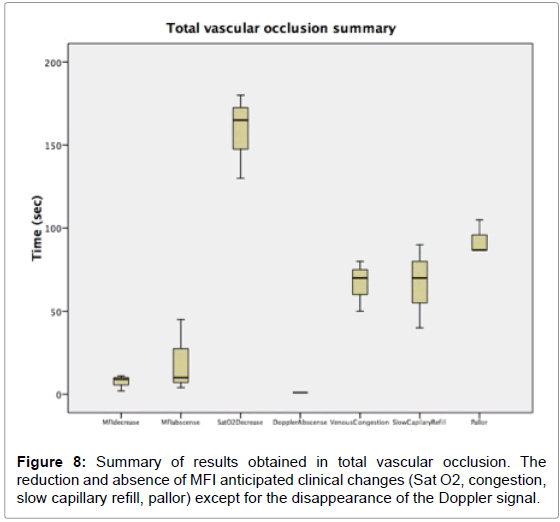

Figure 8: Summary of results obtained in total vascular occlusion. The reduction and absence of MFI anticipated clinical changes (Sat O2, congestion, slow capillary refill, pallor) except for the disappearance of the Doppler signal.

In a recent systematic review, it was noted that only five monitoring techniques showed evidence of increased rates of microsurgical flap rescue compared to other clinical methods (implantable Doppler, NIRS, Laser Doppler Flowmetry, quantitative fluorescence and evaluation through photographs sent by smartphones); however, none of these methods has become widely used in clinical practice [23].

Future studies are needed to adapt the method to clinical practice and evaluate results after monitoring real microsurgical flaps with SDF. These studies will determine the actual impact on clinical decisionmaking and flap survival.

If the Microscan SDF is validated for microsurgical monitoring it would be an attractive option for specific cases in daily practice, when the experience of the surgeon and the clinical assessment are unable to reliably determine the status of a microsurgical flap. Such cases might include intraoperative evaluations in very long operations, in which flap local conditions do not permit the routine clinical evaluation in a reliable manner; or when a flap which has already suffered vascular compromise prior to a second intervention proves challenging for an adequate clinical evaluation.

Conclusion

Venous and total vascular occlusion were successfully identified using Microscan SDF in an experimental simulated flap model in humans.

In the venous occlusion model, the impaired circulation was detected earlier by Microscan SDF than other methods, namely clinical assessment, Doppler and NIRS.

Microscan SDF is a feasible method to assess the perfusion status in cutaneous flaps and it should be considered as a valid alternative to other monitoring tools.
