Natural Products Chemistry & Research

ISSN - 2329-6836

Research Article - (2014) Volume 2, Issue 4

A Formal and Simple Synthesis of an Antifungal Quinazolinone of Marine Source

Sharma GVR*, Alice R Robert and Devi B
Department of Chemistry, GIT, GITAM University, Rushikonda, Visakhapatnam 530045, AP, India
*Corresponding Author: Sharma GVR, Department of Chemistry, GIT, GITAM University, Rushikonda, Visakhapatnam 530045, AP, India, Tel: 99642575394 Email:

Abstract

A simple synthetic route to a quinazolinone isolated from marine species bacillus cereous is reported. The synthesis involves a few steps starting from readily available anthranilic acid and 2-ethyl hexanoic acid. The product is characterized by 1HNMR, 13CNMR, and Mass.

Keywords: Marine natural product; Bacillus cereous, Anthranilic acid; 2-ethylhexanoic acid; Quinazolinone

Introduction

Natural Products such as terpenoids, alkaloids etc., properties play a significant role in the discovery and development of new drugs. Quinazolines and quinazolinones are proven to be considerably bioactive and shown to possess antitumor, anti-inflammatory, antidiabetic, etc. Quinazolinone moiety is present in many commercialized drugs such as Albaconazole 1, Gifitinib 2 (Figure 1) etc. [1,2]. Besides several quinazoline derived clinical candidates are in various stages of development [2,3].

natural-products-chemistry-research-Albaconazole

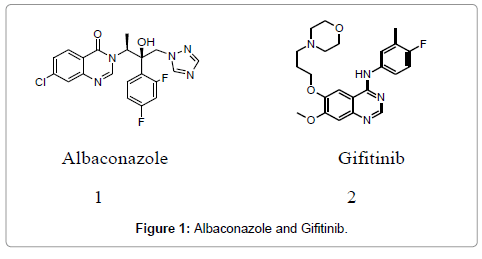

Figure 1: Albaconazole and Gifitinib

The quinazolinone based natural product 4 (Figure 2) was isolated by Zihong Zhu, et al. in 2011 from marine species Bacillus cereous [1]. They also have confirmed the structure by the synthesis of the same from 2-aminobenzamide. The present communication is to report a simple formal synthesis of the quinazolinone from readily available anthranilic acid and 2-ethylhexanoic acid.

natural-products-chemistry-research-Quinazolinone

Figure 2: Quinazolinone and 2-aminobenzamide.

The quinazolinone 3 upon reduction furnishes the marine natural product 4, the dihydro quinazolinone. These compounds show significant anti-fungal and anti-viral activity. Hence viable alternative synthetic routes are needed.

The marine natural product dihydroquinazolinone 4 was isolated from marine species Bacillus cereous and synthesized from 2-aminobenzamide [1]. Herein we report a short formal synthesis of quinazolinone 3 from readily available anthranilic acid and 2-ethylhexanoic acid as shown in the following scheme (Figure 3).

natural-products-chemistry-research-anthranilic-acid

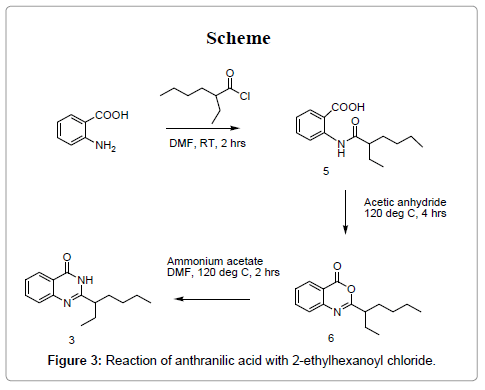

Figure 3: Reaction of anthranilic acid with 2-ethylhexanoyl chloride.

Since the synthesis of 4 from 3 is already reported, we report here the convenient synthesis of 3 only. The synthesis starts with reaction of anthranilic acid with 2-ethylhexanoyl chloride (obtained by reaction of 2-ethylhexanoic acid with thionyl chloride under reflux) in dimethylformamide (DMF) solvent at room temperature under stirring for 2 hrs followed by usual workup to provide the compound 5 as shown in the following scheme. The compound 5 is then heated in acetic anhydride at 120°C for four hours followed evaporation to provide the compound 6, which without purification treated with ammonium acetate in dimethyl formamide (DMF) at 120°C for two hours followed by usual workup furnished the quinazolinone 3 which is purified by silica gel chromatography using dichloromethane and methanol as eluent. The pure quinazolinone 3 is obtained as a white solid which was characterized by 1HNMR (Table 1), 13CNMR (Table 2), DEPT135 and Mass. The 1HNMR was recorded in CDCl3 as solvent by 400 MHz. The aromatic protons with expected multiplicity appeared between 7 and 9 ppm, NH at 11 ppm, two methyl groups as triplets at 1 ppm, and remaining protons between 1.3 and 2.2 ppm. The 13CNMR showed 15 peaks while DEPT showed 11 peaks corresponding to CH, CH2 and CH3. The mass spectrum showed M+1 at 245. Also a strong peak at 246. By using this information, it is confirmed beyond any doubt that the product 3 indeed is the desired quinazolinone which can be converted into 4 using the reported procedure [4-10].

Proton No Chemical Shift (ppm) Multiplicity, Intensity, J,
15 0.875 Triplet, 3H, 8 Hz
17 0.95 Triplet, 3H, 8 Hz
13 and 14 1.3 Multiplet, 4H
12 1.6 Multiplet, 2H
16 1.7 Multiplet, 2H
11 2.2 Multiplet, 1H
9 7.1 Doublet, 1H
7 7.5 Triplet, 1H, 8Hz
8 7.6 Triplet, 1H, 8 Hz
6 8.6 Doublet, 1H, 8 Hz
  11.2 Bs, NH

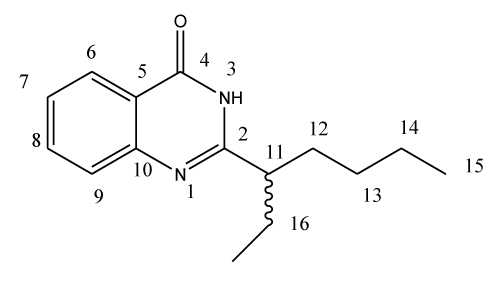

Table 1: Proton Chemical Shifts of compound 3.

Experimental

All the reagents were purchased from Sigma-Aldrich or Merck and used as such without purification. All solvents were obtained from standard sources and used as such without drying. 1HNMR and 13CNMR were recorded on Bruker 400 MHz and Mass on Agilent1100LC/MSD. Chromatographic purification is carried out using silica gel (Figure 4).

natural-products-chemistry-research-Silica-gel

Figure 4: Silica gel.

In a clean and dry round bottom flask, anthranilic acid (1 g, 0.0073 moles) was taken in DMF (10 ml). To the contents of the flask 1.2 eq of 2-ethylhexanoyl chloride (obtained from 2-ethylhexanoic acid and thionyl s chloride) was added and stirred vigorously for 2 h at room temperature. The reaction mixture was poured into water and extracted with DCM (2×15 ml), separated the DCM layer, dried over anhydrous Sodium sulfate and concentrated. The crude product was used as such in the next reaction (Figure 5).

natural-products-chemistry-research-anthranilic-acid

Figure 5: Anthranilic acid.

To the crude product obtained from the above reaction acetic anhydride (4 ml) was added and stirred under reflux for 4 hrs, followed by distilling off the acetic anhydride. To the product obtained after distillation dimethyl formamide (10 ml) was added and 2 eq of ammonium acetate and heated under stirring at 120°C for 2 hrs. The reaction mixture was poured into water, extracted with dichloromethane (3×15 ml). The DCM layers were collected, washed with water, dried over anhydrous Sodium sulfate, concentrated and subjected to purification by column chromatography on silica gel using a mixture of dichloromethane and methanol as eluent to obtain pure quinazolinone 3 (400 mg) in about 30% overall yield. The compound was characterized by 1HNMR, 13CNMR, DEPT135 and M/S [11,12].

equaion

We summarize that in the present communication, a simple and formal synthetically viable route to the quinazolinone 3 is reported which in turn can easily be converted to 4 using the reported procedure.

References

  1. Xu Z, Zhang Y, Fu H, Zhong H, Hong K, et al. (2011) Antifungal quinazolinones from marine-derived Bacillus cereus and their preparation. Bioorg Med Chem Lett 21: 4005-4007.
  2. Moghimi A, Khanmiri RH, Omrani I, Shaabani A (2013) A new library of 4(3H)- and 4,4'(3H,3H')-quinazolinones and 2-(5-alkyl-1,2,4-oxadiazol-3-yl)quinazolin-4(3H)-one obtained from diaminoglyoxime. Tetrahedron Letters 54: 3956-3959.
  3. Mashraqui SH, Ghorpade SS, Tripathi S, Britto S (2012) A new indole incorporated chemosensor exhibiting selective colorimetric and fluorescence ratiometric signaling of fluoride. Tetrahedron Letters53: 765-768.
  4. Duan Y, Zhu XY, Ma JA, Zhou YG (2013) Palladium-catalyzed asymmetric hydrogenation of fluorinated quinazolinones. Tetrahedron Letters 54: 6161-6163.
  5. Motegi M, Nugroho AE, Hirasawa Y, Arai T, Hamid A, et al. (2012) Leucomidines A–C, novel alkaloids from Leuconotisgriffithii. Tetrahedron Letters 53: 1227-1230.
  6. Lu L, Zhang MM, Jiang H, Wang XS (2013) Structurally diversified products from the reactions of 2-aminobenzamides with 1,3-cyclohexanediones catalyzed by iodine. Tetrahedron Letters 54: 757-760.
  7. El-Azab AS, Eltahir KE (2012) Design and synthesis of novel 7-aminoquinazoline derivatives: antitumor and anticonvulsant activities. Bioorg Med Chem Lett 22: 1879-1885.
  8. Wang Z, Wang M, Yao X, Li Y, Tan J, et al. (2012) Design, synthesis and antiviral activity of novel quinazolinones. European Journal of Medicinal Chemistry 53:275-282.
  9. Ramesh G, Narender P, Venkateshwarlu G, Avinash BC, VenkataRao C, et al. (2012) Pd-catalyzed amination of 6-halo-2-cyclopropyl-3-(pyridyl-3-ylmethyl) quinazolin-4(3H)-one. Tetrahedron Letters 53:5162-5166.
  10. Yadav AK, Dhakad P, Sharma GR (2013) An efficient ionic liquid mediated synthesis of substituted 5H[1,3]-thiazolo[2,3-b]quinazoline-3,5-(2H)-dione and 5H-thiazolo[2,3-b]quinazolin-5-one. Tetrahedron Letters 54: 6061-6063.
  11. Yadav MR, Grande F, Chouhan BS, Naik PP, Giridhar R, et al. (2012) Cytotoxic potential of novel 6,7-dimethoxyquinazolines. Eur J Med Chem 48: 231-243.
  12. Malik S, Bahare RS, Khan SA (2013) Design, synthesis and anticonvulsant evaluation of N-(benzo[d]thiazol-2-ylcarbamoyl)-2-methyl-4-oxoquinazoline-3(4H)-carbothioamide derivatives: a hybrid pharmacophore approach. Eur J Med Chem 67: 1-13.
