Central Composite Design Approach for Optimization of Extraction and Dyeing Conditions of Marigold Colorant

Shaukat Ali1*, Sadia Noor1, Umme Habibah Siddiqua1, Sobia Jabeen1 and Tanveer Hussain2
1Department of Chemistry, University of Agriculture, 38000, Faisalabad, Pakistan, E-mail: [email protected]
2National Textile University, Sheikhupura Road, Manawala 37610, Faisalabad, Pakistan, E-mail: [email protected]
*Corresponding Author: Shaukat Ali, Department of Chemistry, University of Agriculture, 38000, Faisalabad, Pakistan, Tel: +923336506013 Email:

Abstract

Marigold flowers are used in many Asian countries for various occasions, rituals and offerings. A considerable amount of unused marigold flowers is wasted while the used ones also pose problems in disposing off. Central composite design of experiment was used to optimize the extraction and dyeing conditions of natural dye from marigold flowers. The effect of pH of the extraction medium, extraction time and material to liquor ratio was investigated. It was found that pH and liquor ratio had statistically significant effect on dye extraction, whereas the effect of time, within the range used in this study, was not found to be significant. Optimum dye extraction was obtained in acidic pH of the extraction medium at lower liquor ratio. Temperature and time dyeing are the most influential factors among many other parameters including amount of salt and material-to-liquor ratio. Cotton fabric dyed with the optimized dye extract, showed very good washing and light fastness properties but poor wet crocking fastness.

Keywords: Eco-friendly natural dyes; Marigold dye extraction; RSM; Central composite design (CCD); Cotton dyeing

Introduction

Natural dyes have been in use since ancient times for coloring different substrates such as wool, cotton, silk and leather. There has also been a wide range of use of these dyes as coloring content in cosmetic products, in printing inks, watercolors and in paints [1]. A recent revival in use of natural dyes in textile industries, has gained limelight all around the world. With increasing awareness of the issues of sustainability and environment protection, the use of synthetic dyes is being considered with caution. It is believed that the use of natural dyes is a wiser and friendlier approach towards the environment as compared to the synthetic dyes. Natural dyes are known to exhibit good level of biodegradability and a high environmental compatibility [2-4].

Marigold flowers are famous for their bright yellow color range. The marigold petals contain lutein and fatty acid esters of lutein which comprise more than 90% of pigment content of plant [5,6]. The major coloring component (Lutein C40H56O2) (Figure 1) in marigold flowers belongs to the carotenoid family [7]. Lutein has many isomers but xanthophyll is present in marigold flowers in high concentrations as compared to other plants sources. These xanthophyll isomers are used as coloring agents in food products because of their yellow shade variations which range from yellow to red tones [8].

natural-products-chemistry-Structure-Lutein-Marigold

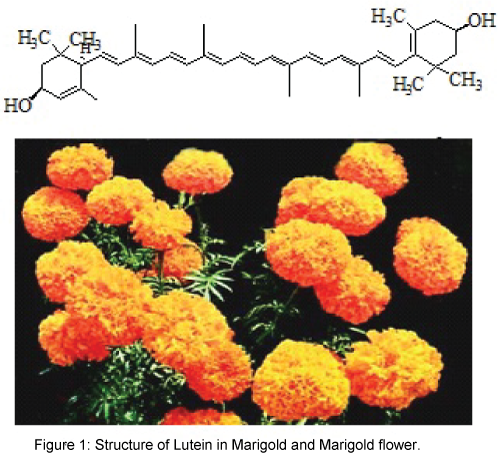

Figure 1: Structure of Lutein in Marigold and Marigold flower.

In the fields of chemistry and biology where a large number of experiments are to be conducted in order to check possible interaction among the factors, statistics play a very vital role. Response Surface Methodology (RSM) has emerged as central technique of statistical design and analyzing experiments almost all fields of research [9,10]. Central composite designs suit well in fitting a quadratic surface model, in addition to analyzing possible interactions among the experimental variables [11-13].

Materials And Methods

Materials and equipment

Dry marigold flowers were used as the main source of dye extraction. Lab-grade sodium hydroxide and dilute hydrochloric acid solutions were used for pH adjustment during dye extraction. Labgrade Glauber's salt was used to promote dye exhaustion during dyeing. All the dyeing experiments were completed on industrially prepared ready-to-dye mercerized cotton fabric using lab-scale high temperature exhaust dyeing machine. Data color SF-600 spectrophotometer with color measurement software was used for measuring color strength of the dyed fabrics. Washing, crocking and light fastness properties fabric dyed with extracts were determined by using launder-o-meter, crock meter and fado meter respectively.

Selection of the experimental variables

Three experimental variables were used for the dye extraction experiments, i.e., pH of the extraction medium, time of dye extraction and material to liquor ratio (M:L). The experimental variables and their levels are given in Table 1. pH of the extraction medium was varied from 2 to 12, the extraction time was varied from 30 to 90 minutes using conventional reflux methodology. Material-to-liquor ration (M:L) was varied from 20 to 50, where M:L of 20 refers to 20 parts of liquor used for 1 part of the marigold flowers.

Variables Levels in coded and actual units
Symbol Name -1 0 +1
A pH 2 4 7 10 12
B Time (min.) 30 42 60 78 90
C M:L 20 26 35 44 50

Table 1: Experimental variables and their levels for extraction.

Design of experiment

Response Surface Methodology (RSM) comprises a set of advanced design of experiment techniques that help better understanding and optimizing a response. Central Composite Design (CCD) is a popular design of experiments in RSM that is commonly used for finding the levels of input variables that optimize a response. Response surface equations in CCD can also model how changes in input variables influence a response of interest [14]. Total 20 experiments were designed and analysis of experiments was conducted using “Design- Expert 7.0” software package.

Extraction of colorant from marigold

The first step in this particular research venture was to extract the major colorant from dry marigold flowers. For this purpose, water was used as the extraction medium to ensure cost effectiveness of the reflux extraction process. The pH of the extraction medium was adjusted between 2 to 12, according to the design of experiments by making use of dilute hydrochloric acid and sodium hydroxide.

Application of dye on cotton fabric

The extracted dye from each extraction experiment was applied on Mercerized cotton fabric samples in order to evaluate color transfer on the substrate. For this purpose a high temperature lab scale exhaust dyeing machine was used and samples were dyed at pre-optimized dyeing conditions i.e., 90°C for one hour. After one hour of dyeing time the dyed samples were taken out of the dye baths and cooled at room temperature. The dyed fabric was thoroughly washed and dried.

Color value assessment of dyed fabric

The color strength (K/S) values of dyed fabric samples were measured with Spectraflash - SF650 spectrophotometer by Data color International. The spectrophotometer gave the K/S values according to the given relation K/S=(1-R)2/2R, where R represents sample reflectance, K is coefficient of absorption and S is the coefficient of scattering. A higher value of K/S indicates higher color strength, as a darker sample gives lower light reflectance and higher light absorbance [15].

Determination of fastness properties

The most convenient method for evaluation of quality of dyed samples is the colorfastness properties. The variation in color values and transference of color from dyed fabric to some adjacent substrate may be due to washing, rubbing or exposure to heat or light. Textile fabric or fibers are supposed to bear washing frequently during application or usage. Hence, it becomes very important to assure the durability of colors on textile substrates [16]. The dyed cotton samples were passed through all fastness tests in accordance with ISO standard methods. Colorfastness to rubbing was determined with crockmeter according to ISO 105-X12 protocol. Colorfastness values for washing were determined using launder-o-meter according to ISO method 105- CO2 while colorfastness to light was determined using Fade-o-meter according to ISO-B-02 standard method.

Results

Analysis of Variance (ANOVA): Statistical analysis of results was performed using ANOVA. The ANOVA showing the results in terms of K/S values are given in Table 2. The Model gave F-value of 165.21 and p-value <0.0001 implies the model is significant. There is 0.01% chance that a "Model F-Value" this large could occur due to noise. p-values less than 0.0500 indicate model terms are significant. In this case A, C, A2 are significant model terms. All the values greater than 0.1000 indicate the model terms are not significant. According to ANOVA results, experimental variable A (i.e., pH of the extraction medium) and C (i.e., M:L) have statistically significant effect on the color strength. The statistical significance of the term A2 implies that the effect of pH is not linear, as the square indicates non-linearity or curvature.

Source Sum of Squares DF Mean Square F Value p-value, Prob>F Remarks
Model 219.90 9 24.43 158.44 <0.0001 Significant
A-pH 173.53 1 173.53 1125.25 <0.0001 Significant
B-Time 0.19 1 0.19 1.22 0.2944
C-M:L 2.34 1 2.34 15.18 0.0030 Significant
AB 0.21 1 0.21 1.37 0.2690
AC 0.45 1 0.45 2.93 0.1179
BC 0.031 1 0.031 0.20 0.6622
A2 42.94 1 42.94 278.43 <0.0001 Significant
B2 0.022 1 0.03 0.14 0.7142
C2 0.24 1 0.24 1.53 0.2450
Residual 1.54 10 0.15
Lack of Fit 1.54 5 0.31
Pure Error 0.00 5 0.00
Cor Total 221.44 19

Table 2: ANOVA for dye extraction.

Regression coefficients for the second order equation: The purpose of Regression analysis is to investigate the model and draw a relationship between response variables and one or more experimental or predicted variables. Equation 1 gives the quantitative relationship between the experimental variables (A, B and C) with color strength (K/S). A is pH of the extraction medium, B is the extraction time in minutes and C is the material to liquor ratio (M:L). Equation 1 can be used to predict the value of K/S at different levels of A, B and C variables. A higher magnitude (3.56) of the coefficient of variable A indicates that its effect on K/S is higher as compared to variables C (coeff. 0.41) and B (coeff. 0.16). A -ve sign with A and C indicates their inverse relationship with the color strength K/S whereas a +ve sign with B implies its direct relationship with the K/S [15].

Equation 1:


The effect of pH and M:L on extraction and color strength is shown in Figure 2b. Under acidic conditions, the color strength decreases with increase in M:L. At higher M:L, the extraction liquor is more dilute as compared to that at lower M:L, resulting in lower color yield at higher M:L.

natural-products-chemistry-extraction-parameters-color

Figure 2: Effect of extraction parameters a) pH and time on color strength (K/S) at M:L 35 mL; b) pH and M:L on color strength (K/S) at 60 min; c) Time and M:L at pH 4.

The optimum conditions for extraction: Using optimization constraints given in Table 3, the optimum conditions for dye extraction with maximum color strength were found to be: pH of the extraction medium 4; extraction time 45 minutes; and M:L 26. The color strength obtained with the optimized extract was greater than K/S14. Color fastness to washing was good with 4-5 rating of the change in color on the grey scale. Color fastness to light was also good with 5-6 rating on the blue wool scale. Dry crocking fastness was also good with a rating of 4 but wet crocking fastness was poor with 2-3 rating on the grey scale.

Variables Levels in coded and actual units
Symbol Name - α -1 0 +1 + α
A Temperature 70 80 90 100 110
B Time 30 45 60 75 90
C
D
M:L
Salt
30
10
40
15
50
20
60
25
70
30

Table 3: Optimization constraints for dyeing.

Optimization of dyeing conditions for marigold colorant: Marigold extract was then applied on the scoured and bleached cotton fabric and the parameters were optimized for dyeing. The dyeing parameters were; Temperature (°C), Material-to-liquor ratio (M:L), Salt concentration (g/L) and dyeing time (minutes). The extracted colorant was applied on the fabric using High Temperature dyeing machine (Table 4).

Source Sum of Squares DF Mean Square F Value p-value, Prob>F Remarks
Model 46.38 14 3.31 2.69 0.0338 significant
A-Temperature 14.41 1 14.41 11.68 0.0038
B-Time 9.37 1 9.37 7.6 0.0147
C-M:L 0.73 1 0.73 0.6 0.4522
D-Salt 0.48 1 0.48 0.39 0.5415
AB 0.063 1 0.063 0.051 0.825
AC 0.20 1 0.2 0.16 0.6911
AD 0.040 1 0.04 0.032 0.8595
BC 0.42 1 0.42 0.34 0.5671
BD 0.16 1 0.16 0.13 0.7238
CD 0.010 1 0.010 8.105E-003 0.9295
A2           12.65 1 12.65 10.25 0.0059
B2 0.58 1 0.58 0.47 0.5022
C2 2.82 1 2.82 2.29 0.1511
D2 1.49 1 1.49 1.21 0.2886
Residual 18.51 15 1.23
Lack of Fit 18.13 10 1.81 24.18
Pure Error 0.37 5 0.075
Cor Total 64.89 29

Table 4: ANOVA for dye application.

Results

The results from ANOVA table shown significance of dyeing temperature and the time and these are the leading factors in cotton dyeing with natural colorants. The CV of the model is well controlled and the model is significant overall. The K/S values indicated that there is temperature dependence and variations in temperature indicated that when it was 90°C it resulted in higher values of K/S and hence the temperature was optimized for marigold to dye cotton fabric. Similarly it is clearly indicated from CCD interactions among parameters that when temperature is increases gradually more and more dye molecules got fixed onto fabric surface but beyond 100°C decomposition of molecules of dye started [17]. Time of dyeing was very well behaved at 60 minutes and salt concentration 40 g/L was the optimum.

Effect of extraction conditions on color strength

Response surface 3D plots are depicting effects of experimental variables on the color strength value of the dyed fabric are shown in Figures 2 and 3. The three dimensional graphical representation of surface response, is a function of two independent variables while the third variable is kept at a constant level. Figure 2 represents the effect of pH of the extraction medium and extraction time on color strength. The effect of extraction time is not significant. It is evident that the dye extraction (as indicated by K/S) is best in acidic pH whereas it decreases under alkaline pH conditions. It is also clear that the effect of pH is not linear. The color strength decreases steadily by increasing pH from 2 to 7, and then decreases sharply towards the alkaline pH (>7). It implies that the dye extraction from marigold flowers is best under acidic pH condition, and that the color yield is not optimum at neutral conditions and it is worse under alkaline conditions. The hydroxyl groups present in the marigold colorant make it water-soluble. At acidic pH, there is an interaction of protonated terminal hydroxyl groups with cellulosic fabric through ion exchange reaction that helps the dye to be fixed on the fabric.

natural-products-chemistry-Effects-parameters-color

Figure 3: Effects of parameters on color strength (K/S) a) Temperature and dyeing time; b) Temperature and M:L; c) Temperature and Salt (g/L); d) M:L and dyeing time; e) Salt and Dyeing time; f) Salt and M:L.

On immersing cellulosic fabric in water a negative is produced on it most probably due to Zeta Potential. The negatively charged surface of fabric then respells negatively charged species of dye. But addition of Glauber’s salt compensates this situation with its positively charged ions in order to reduce/neutralize negative charge on the fabric. This mechanism facilitates the approach of dye molecules for bond formation [18].

There is a relation between the dye structure and cotton fabric which is fairly affected by changing the pH of dye bath. Since the lutein colorant present in marigold flowers has slight negative charge on acidic pH (4) which could help in forming H-bond with hydroxyl groups of cellulosic fabric. But when pH is raised further, there caused repulsion between dye and cotton fabric due to more anionic character. Higher pH decrease dyeability of fabric might be due to resonance contributing structures of lutein in marigold [19].

Conclusion

Natural dyes depend on a number of factors and pH of the extraction medium was found to be the most influential factor in the extraction of natural dye from marigold flowers. The next most important factor was the material to liquor ratio whereas the effect of extraction time was not found to be significant, within the range of time investigated in this study. The optimum dye extraction took place at 4 pH, 1:26 material-to-liquor ratio in 45 minutes time of extraction. The effect of pH was found to be non-linear on the color yield, which decreased steadily by increasing pH from 4 to 7 but then sharply from pH 7 to 10. Cotton fabric dyed with the optimized dye extract showed good washing fastness (4-5 rating on 1-5 scale), good light fastness (5-6 rating on 1-8 scale), fairly good dry crocking fastness (4 rating on 1-5 scale) but poor wet crocking fastness (2-3 rating on 1-5 scale). Dyeing conditions were also optimized in terms of dyeing temperature (90°C), dyeing time (60 minutes), salt concentration (40 g/L) and materialto- liquor ratio (40 mL). Further work is required to improve the wet crocking fastness of marigold dye on cotton fabric.
