Natural Products Chemistry & Research

ISSN - 2329-6836

Research Article - (2017) Volume 5, Issue 5

Characterization of Benzoyl Saxitoxin Analogs from the Toxigenic Marine Dinoflagellate Gymnodinium catenatum by Hydrophilic Interaction Liquid Ion-Chromatography-Tandem Mass Spectrometry

Durán-Riveroll ML1*, Bernd Krock2, Allan Cembella2, Javier Peralta Cruz3, Bustillos Guzmán JJ4 and Band Schmidt CJ5
1Academic Unit of Ecology and Aquatic Biodiversity, Institute of Marine Sciences and Limnology, National Autonomous University of Mexico, Mexico
2Helmholtz Center for Polar and Marine Research, Alfred Wegener Institute, Bremerhaven 27570, Germany
3National School of Biological Sciences-National Polytechnic Institute, Mexico City 11340, Mexico
4Center for Biological Research of the Northwest, La Paz, B.C.S. 23096, Mexico
5Interdisciplinary Center of Marine Sciences-National Polytechnic Institute, La Paz, B.C.S. 23000, Mexico
*Corresponding Author: Durán-Riveroll ML, Academic Unit of Ecology and Aquatic Biodiversity, Institute of Marine Sciences and Limnology, National Autonomous University of Mexico, Mexico City 04510, Mexico, Tel: +52(55)5623-0222/44639 Email:


The chain-forming marine dinoflagellate Gymnodinium catenatum Graham has a remarkable capacity to produce a wide array of neurotoxic alkaloids associated with paralytic shellfish poisoning (PSP). More than a decade ago, a completely new group of benzoyl saxitoxin analogs produced exclusively by this species was discovered, but the exact structural assignments and diversity among global population has remained elusive and unconfirmed in most cases. In the current study, fifteen among eighteen hypothetical benzoyl analogs were partially purified and identified from cultured isolates of Gymnodinium catenatum from the Pacific coast of Mexico. Combined serial application of flash chromatography, preparative liquid chromatography and tandem mass spectrometry (LC-MS/MS) in multiple steps yielded a richness of benzoyl analogs that has not been reported nor confirmed before. Two sub-fractions were analyzed by 1H-NMR; results from one fraction showed a probable AMX pattern for three protons, consistent with the presence of a 3,4-dihydroxylated benzoyl ring. These findings could be interpreted to correct the 2,4- dihydroxylated structure previously proposed for the GCa benzoyl analog series. The revised and enhanced structural information on proposed benzoyl derivatives is necessary to provide further insights into biogeographical diversity of these potentially potent toxins produced by marine dinoflagellates and their role in seafood safety.

Keywords: Saxitoxin; Benzoyl analogs; Hydrophilic interaction chromatography; Preparative chromatography; Nuclear magnetic resonance


Gymnodinium catenatum Graham is a chain-forming naked gymnodinoid dinoflagellate, notorious for formation of harmful algal blooms (HABs), and known for the production of paralytic shellfish toxins (PSTs), comprising a wide array of neurotoxic analogs of saxitoxin (STX). Blooms of this dinoflagellate have caused intoxications and death of marine fauna and human consumers of bivalve mollusks that have accumulated toxins via suspension-feeding upon the plankton [1]. This species is the only gymnodinioid dinoflagellate known to produce these toxins [2]. First described from the Gulf of California in 1943 [3], Gymnodinium catenatum has been reported with increasing frequency from the 1970s, and to date it has been found along the coastlines of all continents except Antarctica [2,4]. The species is widely distributed in both global hemispheres, but occurs primarily in temperate and sub-tropical waters, producing major blooms on the coast of Atlantic Iberia, Tasmania, southern Australia, and in Mexico along the Pacific coast [5].

Neurotoxins such as STX and its analogs are water soluble heterocyclic alkaloids that bear two guanidinium groups, and hence have shown high affinity and ion flux blockage capacity for voltagegated sodium ion channels (Nav). The guanidinium group confers a positive charge to the molecule at physiological pH, and this charge is directly implicated in their toxicity [6]. Toxin potency in mammalian systems greatly varies among different analogs depending on the substituent groups on the lateral chain, ranging in relative toxicity from the most potent, STX, to the least potent, N-sulfocarbamoyl derivatives [7].

A recent review on Gymnodinium catenatum toxin analogs reports on studies conducted over the last several decades on the biogeographical relationships of Gymnodinium catenatum populations based on their respective toxin profiles as biochemical markers [2]. The known carbamoyl, decarbamoyl, and sulfocarbamoyl analogs found among Gymnodinium catenatum natural populations and cultured isolates, currently comprise 18 naturally occurring derivatives. Substantial variations in toxin content among various populations are reported to depend on physical oceanographic conditions, growth stages and nutritional factors [5,8-13]. The presence/absence of toxins, relative proportion and cell toxin content vary widely among cultured isolates and natural populations, but the toxin profile within individual strains is genetically determined and tends to remain rather fixed [13]. No known isolate produces the complete toxin spectrum, although all isolates typically produce more than one and usually several analogs [14].

In addition to the well-known carbamoyl, decarbamoyl, and sulfocarbamoyl derivatives, enhanced search efforts along with improved detection techniques and structural elucidation have led to the discovery of new groups of STX analogs in Gymnodinium catenatum . In 2001, [15] detected for the first time some novel chromatographic “toxin-like” peaks. Further investigations revealed that these compounds, named GC1-3 toxins, were indeed new analogs. Extracts containing these analogs were purified for the first time by hydrophilic interaction liquid ion-chromatography (HILIC), and their structures were characterized by mass spectrometry (MS) and nuclear magnetic resonance (NMR) [16]. According to these authors, the GC3 analog is the para-hydroxybenzoyl derivative of dcSTX; GC1 and GC2 are C-11 sulfated variants of GC3 that form an enantiomeric pair depending on the stereochemical position of the sulfate group.

Discovery of the benzoyl analogs added to the array of known toxins produced by Gymnodinium catenatum and to the list of naturally occurring STX derivatives produced among toxigenic dinoflagellates. Thus far, the production of benzoyl analogs has been identified only in Gymnodinium catenatum , but these toxins have been reported in different strains from diverse locations around the world (as mentioned in the review by [2]) and in bivalve mollusks that have fed upon natural blooms of this species. Extensive toxicity studies have not been conducted with all the analogs, mainly due to a lack of purified toxins, but their structures provide information to hypothesize about their potency. Some in vitro experiments with GC1/2 and GC3 have been performed on rat brain sodium channels, finding that these analogs bind strongly to the Nav but are somewhat less potent than STX. Nevertheless, the fact that these analogs possess a less polar benzoyl moiety raises the possibility that they have a greater ability than STX and other PSTs to cross epithelia. If this is the case, a higher selective absorption and also a greater potential for bioaccumulation and retention in some tissues, such as those of bivalve mollusks, and thus enhanced risk to human consumers, might be expected [17]. Only one theoretical study has been carried out via molecular docking. The study showed a theoretically high affinity of the GC toxins (GC1-6, GC1a-6a and GC1b-6b series of toxins) to the modelled Nav channel, although the results are not decisive due to the lack of correlation of the binding energies with the toxicity of the known analogs [18]. Despite the fact that these approaches are far from conclusive, they present the possibility that these toxins are relatively toxic in situ.

The suite of saxitoxin analogs produced by Gymnodinium catenatum has been operationally grouped as “hydrophilic” toxins, which includes STX, gonyautoxins [GTXs], neosaxitoxin [NEO], decarbamoyl saxitoxin [dcSTX], decarbamoyl neosaxitoxin [dcNEO], decarbamoyl gonyautoxins [dcGTXs], and N-sulfocarbamoyl B and C toxins, versus so-called “hydrophobic” (e.g., benzoyl or GC) analogs [16,19-22] (Figure 1). Identification of benzoyl analogs has been hampered mainly by the lack of analytical standards [20,21,23], but probable structures for some analogs have been proposed based upon mass spectrometric analysis [20].

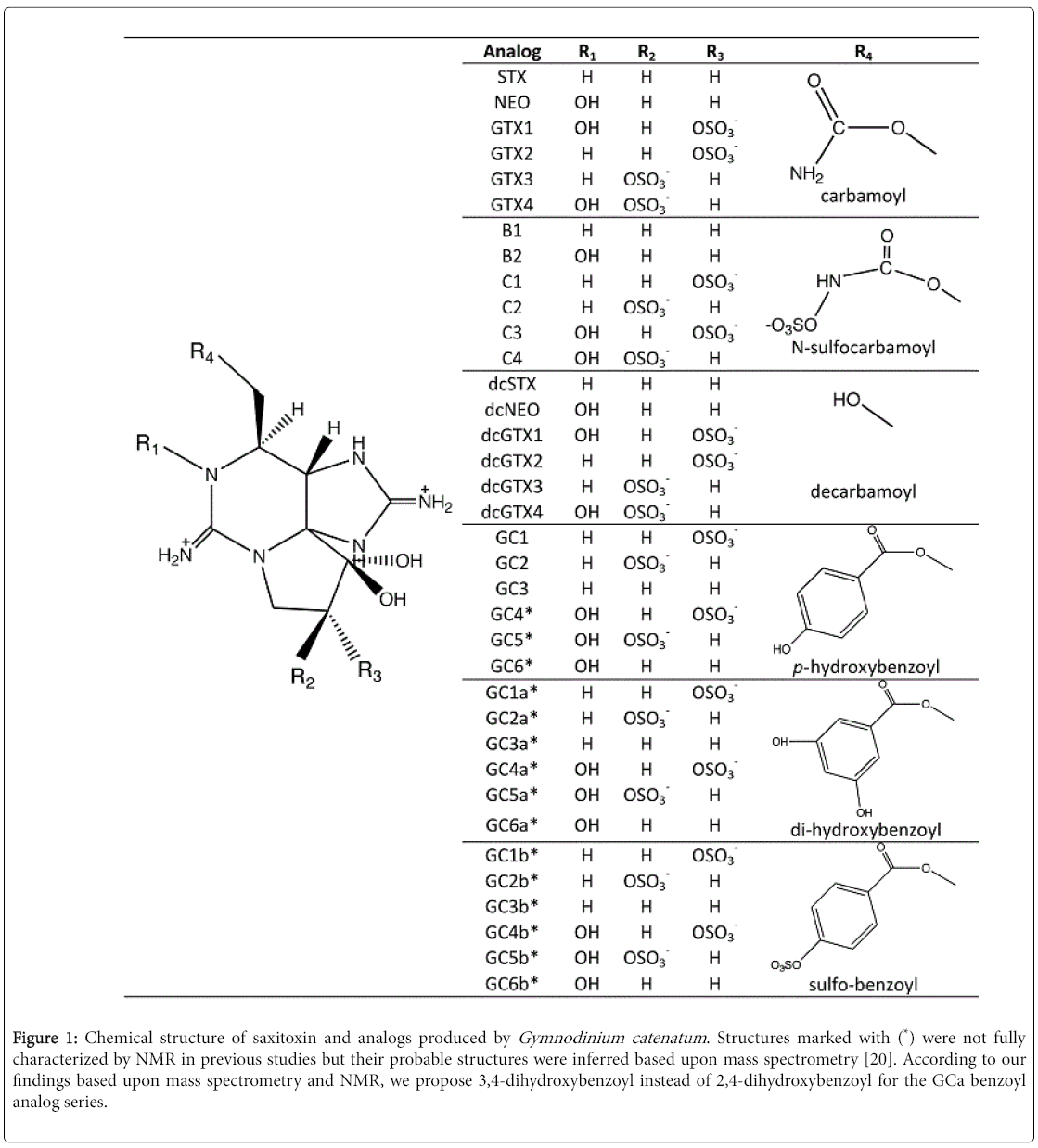

Figure 1: Chemical structure of saxitoxin and analogs produced by Gymnodinium catenatum . Structures marked with (*) were not fully characterized by NMR in previous studies but their probable structures were inferred based upon mass spectrometry [20]. According to our findings based upon mass spectrometry and NMR, we propose 3,4-dihydroxybenzoyl instead of 2,4-dihydroxybenzoyl for the GCa benzoyl analog series.

Benzoyl analogs have been detected in strains from Australia, China, Japan, Portugal, Uruguay, Spain, Korea [19], and Mexico [22], most of the times in even greater relative abundance (in mol%) even than the N-sulfocarbamoyl (C) analogs, previously considered to be the most abundant analogs produced by this species. In some commercial bivalve species, GC toxins accounted for only a minor contribution to the toxin profile when contaminated by natural blooms, leading the hypothesis that these analogs are transformed into more potent ones, such as dcSTX. Biotransformation to decarbamoyl toxins would occur via the loss of the benzoyl side chain by carbamoylase enzyme activity, but this enzymatic conversion is uncommon among bivalves, and it is typically restricted to a few clam species [23]. In the case of many other bivalves that lack the carbamoylase they may contain high amounts of untransformed GC toxins.

The aim of this current work was to obtain semi-purified fractions from an extract of Gymnodinium catenatum strains from Mexican waters by preparative Hydrophilic Interaction Liquid Chromatography (HILIC) for confirmation of the presence and structures of benzoyl analogs. This approach successfully yielded 15 of 18 proposed naturally occurring benzoyl toxin derivatives.

Materials And Methods

Isolates, culture conditions and harvest

Three isolates of Gymnodinium catenatum , two from the Gulf of California and one from the Pacific coast of Mexico (Table 1), were cultured from water samples collected from natural populations. Isolates were grown in GSe medium [24] supplemented with earthworm soil extract in 19 L carboys, 4 L Erlenmeyer flasks and 3.8 L PET containers with seawater (salinity 33 ± 1) from Ensenada de La Paz, Baja California Sur, Mexico. Culture medium was prepared with chemically sterilized seawater (17 mg L-1 Ca(ClO)2, 90%, standard commercial preparation). Nutrients were autoclaved at 121ºC for 15 minutes, and vitamins were filter-sterilized and added afterwards. Cultures were maintained at 24 ± 1ºC on a 12:12 h light:dark regime under 150 μmol m-2s-1 illumination from cool-white fluorescent lights in a temperature-controlled growth room.

Isolate (code) Place and year of isolation Isolated by
GCCV-7 Bahía Concepción, B.C.S. 2000 (26º 40' LN and 111º 50' LW) C. Band-Schmidt
BAPAZ-5 Bahía de La Paz, B.C.S., 2007
(24º 27' LN and 110º 30' LW)
C. Band-SchmidtCenter
Interdisciplinary ScienceMarinas - IPN
62L Lázaro Cárdenas, Michoacán, 2005 (17º 58' LN and 102º 05' LW) M. C. Rodríguez-Palacio
Professional working proficiency

Table 1: Gymnodinium catenatum isolates from different locations on the Mexican Pacific coast.

The cell biomass of a total of 300 L culture of the three isolates of Gymnodinium catenatum was harvested and pooled. Individual cultures were harvested approximately every 15 days upon a 20 μm nylon mesh. Cell suspension was centrifuged (Solbat, Model J-12, Aparatos Científicos, Mexico City) at room temperature for 15 minutes and at 1500 x g. The pellet biomass was stored at -20ºC until toxin extraction.

Toxin extraction

The combined biomass was thawed and divided into 7 centrifuge tubes. Four mL of 0.17 M acetic acid (ACS Vetec SIGMA, HPLC grade) were added to each tube. Tubes were ultrasonicated in an ultrasound bath (Cole Parmer 8891, Vernon Hills, USA) for 10 minutes and the cell biomass was re-frozen. After 24 h, biomass was again thawed and ultrasonicated for another 10 minutes. Complete cell disruption was verified microscopically. Tubes were centrifuged for 15 minutes at 1500 g at room temperature. The supernatants were combined and then lyophilized.

Fractionation by reverse-phase column chromatography

Lyophilized crude extract was suspended in 13 mL of deionized distilled water and filtered through a syringe-mounted glass fiber filter (Whatman GFF, 0.47 μm, 25 mm). A chromatographic glass column (70 cm height x 4.5 cm i.d.) packed with 100 g C-18 silica gel (Bulk C-18 Flash, FCO140100-0, Agela Technologies, USA) was used for the first fractionation. Three eluents yielded three 1 L fractions: Fraction 1 (F1): deionized distilled water; F2: 20% v/v MeOH (ACS Vetec SIGMA, HPLC grade); and F3: 100% MeOH. The MeOH was removed by rotary evaporation at 40ºC (F2 and F3) and the aqueous residue was lyophilized (F1 and F2).

HILIC-MS/MS analysis

Reagents for fractionation and HILIC-MS/MS analysis were purchased from Merck (Darmstadt, Germany). Mass spectral experiments to detect GC analogs were performed on a triple quadrupole mass spectrometer (API 4000 QTrap, AB Sciex, Darmstadt, Germany) equipped with a Turbo Ion Spray interface, coupled to a liquid chromatograph (model 1100, Agilent, Waldbronn, Germany). The liquid chromatograph included a solvent reservoir, inline degasser (G1379A), binary pump (G1311A), refrigerated autosampler (G1329A/G1330B) and temperature-controlled column oven (G1316A). Mass spectrometric analyses for GC analogs were carried out by addition of GC-toxin transitions (Table 2) to the method of Diener [25]. The column (150 × 4.6 mm) packed with 5 μm ZICHILIC stationary phase (Merck, Darmstadt, Germany) was maintained at 35ºC. In summary, the following operating parameters were applied at a flow rate of 0.7 mL min-1: gradient elution was performed with eluent A (2 mM formic acid and 5 mM ammonium formate in acetonitrile in water (80:20 v/v)) and eluent B (10 mM formic acid and 10 mM ammonium formate in water). Five μL of sample were injected and gradient elution for HILIC with MS detection was carried out as presented in Table 3.

Analog Lateral Chain N1 C-11 SO4 MW Ion precursor >fragments
H - 299 300 > 282
300 > 204
NEO OH - 315 316 > 298
316 > 196
GTX1 OH α 411 412 > 332
412 > 314
GTX4 OH β 411 412 > 332
412 > 314
GTX2 H α 395 396 > 316
396 > 298
GTX3 H β 395 396 > 316
396 > 298
H α 475 396 > 316
396 > 298
C2 H β 475 396 > 316
396 > 298
C3 OH α 491 412 > 332
412 > 314
C4 OH β 491 412 >332
412 > 314
B1 H - 379 380 > 300
380 > 282
B2 OH - 395 396 > 316
396 > 298
dcSTX Hdecarbamoyl H - 256 257 > 196
257 > 156
dcNEO OH - 272 273 > 255
dcGTX1 OH α 368 369 > 289
dcGTX4 OH β 368 369 > 289
dcGTX2 H α 352 353 > 273
dcGTX3 H β 352 353 > 273
GC1 p-hydroxy-benzoyl H α 472 473 > 455, 393, 375
GC2 H β 472 473 > 455, 393, 375
GC3 H - 376 377 > 359, 257
GC4 OH α 488 489 > 471, 409, 391
GC5 OH β 488 489 > 471, 409, 391
GC6 OH - 392 393 > 375, 273
GC1a di-hydroxy-benzoyl H α 488 489 > 471, 409
GC2a H β 488 489 > 471, 409
GC3a H - 392 393 > 375, 257
GC4a OH α 504 505 > 487, 425
GC5a OH β 504 505 > 487, 425
GC6a OH - 408 409 > 391, 273
GC1b sulfo-benzoyl H α 552 553 > 393
GC2b H β 552 553 > 393
GC3b H - 456 457 > 377
GC4b OH α 568 569 > 409
GC5b OH β 568 569 > 409
GC6b OH - 472 473 > 393

Table 2: Lateral chain, functional group at nitrogen 1 (N1), position of sulfate group at carbon 11 (C-11), molecular weight (MW) and mass transitions (m/z) of the PSTs analyzed.

Time (min) % eluent A % eluent B
0 80 20
5 65 35
20 60 40
24 55 45
25 55 45

Table 3: Gradient program for HILIC-MS/MS.

Selected-reaction monitoring (SRM) experiments were conducted in positive-ion mode based on transitions listed in Table 2. Dwell times of 100-200 ms were used for each transition. The source parameters were: curtain gas (30 psi), temperature (650ºC), ion spray voltage (5000 V), gas 1 and 2 (70 psi), interface heater (on), collision gas (high), declustering potential (66 V), entrance potential (10 V), collision energy (30 V), and collision cell exit potential (12 V).

MS/MS guided fractionation

Fraction 2 (20% MeOH) and 3 (100% MeOH) were further refractionated by HILIC chromatography guided by posterior MS/MS. Preparative work was performed on a Knauer chromatograph (Berlin, Germany), equipped with a 10 mL pump (Knauer 10 mL Nr. 43680), exchange valve (Smartline Valve Drive Nr. 99158), degasser (Smartline Manager 5000) and mixing chamber (Dynamic Mixing Chamber Nr. 102055). The same ZIC-HILIC stationary phase analytical column as previously described was loaded with consecutive 50 μL injections. The column was operated at ambient temperature (~ 20ºC), with otherwise identical parameters as in the previous analyses. The flow rate was 0.7 mL min-1 for a total run time of 45 minutes.

Fractions were collected with a Gilson fraction collector (model 202150G5001, Villeurs-le-Bel, France). Each collected fraction was lyophilized and further analyzed by HILIC-MS/MS to determine toxin composition in order to continue stepwise preparative fractionation.

1H-NMR spectroscopy

1H-NMR experiments were performed at 25ºC in a Varian 500 spectrometer (Varian, Palo Alto, California) with 50 transients for each experiment, according to standard Varian 1H sequence pulses. Exchanged MeOH intense signal was suppressed by presaturation at 4.54 ppm. The Free Induction Decays (FIDs) obtained were processed with MestReNOVA software (MestreLab, Spain).


We identified 15 different GC analogs in the methanolic fractions isolated from Gymnodinium catenatum cells, although structural confirmation of all of them was not possible by mass spectrometry alone. To be consistent with previous research [25,26], we considered that analogs with the sulfate group located at C-11 in α-position were the first to elute, and those with the sulfate group in β-position eluted later, as shown in the tables, but we did not confirm this elution pattern.

Initial fractionation and preparative chromatography

The cell biomass from the three Gymnodinium catenatum isolates was pooled for maximum toxin yield (particularly important for rare CG analogs). This also provided the broadest integrated toxin spectrum, and simplified the fractionation procedure and number of analyses. Total biomass of harvested dinoflagellate cell culture (29.01 g wet weight) yielded a lyophilized crude extract of 2.23 g (dry weight). The first fractionation by RP flash chromatography provided 1.19 g Fraction 1 (F1, H2O), 0.10 g Fraction 2 (F2, 20% MeOH 20%) and 0.02 g Fraction 3 (F3, 100% MeOH). The total yield of fractions was 57.9%, with weight and yield of individual fractions detailed in Table 4.

GC Toxin m/z RT (min)
GC1 473 7.05
GC2 10.63
GC4 489 5.96
GC5 8.82
GC1a 10.50
GC2a 14.04
GC4a 505 6.40
GC5a 8.28
GC1b 553 7.02
GC2b 10.13
GC4b 569 8.85
GC5b 13.96

Table 4: GC toxins identified in F2 (20% MeOH) by HILIC-MS/MS analysis.

In this work, F1 (aqueous) was not further analyzed because it is known to contain all the so-called “hydrophilic” STX analogs, but is not expected to include the target benzoyl derivatives. This justified the focus on analysis of toxins in fractions F2 and F3, which presumably contained the benzoyl STX analogs (Figure 2).

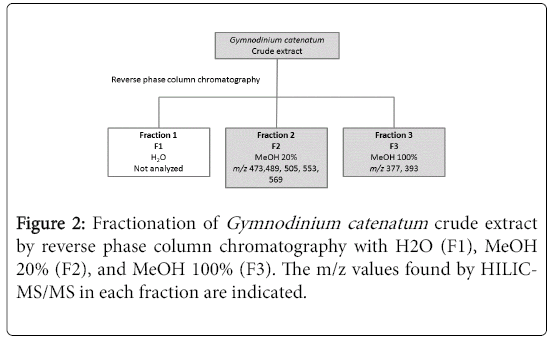

Figure 2: Fractionation of Gymnodinium catenatum crude extract by reverse phase column chromatography with H2O (F1), MeOH 20% (F2), and MeOH 100% (F3). The m/z values found by HILICMS/ MS in each fraction are indicated.

HILIC-MS/MS of chromatographic fractions and preparative HILIC chromatography

Analysis of fractions F2 (20% MeOH) and F3 (100% MeOH) and various sub-fractions by HILIC-MS/MS confirmed the presence of 15 GC analogs. Fraction 2 yielded 12 GC analogs, namely GC1/2 (m/z 473), GC4/5, GC1a/2a (m/z 489), GC4a/5a (m/z 505), GC1b/2b (m/z 553), and GC4b/5b (m/z 569), whereas F3 yielded three GC analogs: GC3 (m/z 377), GC6 and GC3a (m/z 393).

Fraction 2 (20% MeOH)

Twelve GC toxins were identified from F2 (20% MeOH), including the N1-OH analogs GC4/5, GC4a/5a and GC4b/5b. The preliminary HILIC-MS/MS analysis of F2 yielded compounds with m/z 473, 489, 505, 553 and 569 (Table 5 and Figure 3).

GC Toxin m/z RT (min)
GC3 377 2.84
GC6 or 393 2.33
GC3a - 2.27

Table 5: GC toxins identified in F3 (100% MeOH) by HILIC-MS/MS analysis.

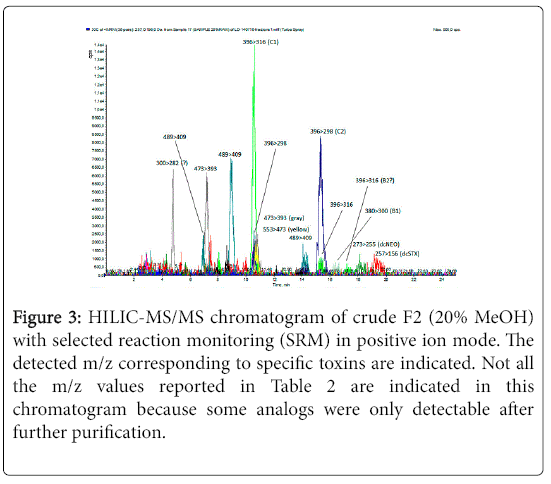

Figure 3: HILIC-MS/MS chromatogram of crude F2 (20% MeOH) with selected reaction monitoring (SRM) in positive ion mode. The detected m/z corresponding to specific toxins are indicated. Not all the m/z values reported in Table 2 are indicated in this chromatogram because some analogs were only detectable after further purification.

Sub-fractionation (12 increments) of F2 in the first step provided relatively higher purity of component(s) with m/z 393, corresponding to GC3a, but only in sub-fraction F2.2. Sub-fractions 2.5 to 2.8 of F2 contained compounds with m/z 473 and 489, corresponding to toxins GC1/2 and/or GC6b, and GC4/5 and/or GC1a/2a, respectively. Accordingly, these sub-fractions were pooled and refractionated (Figure 4).

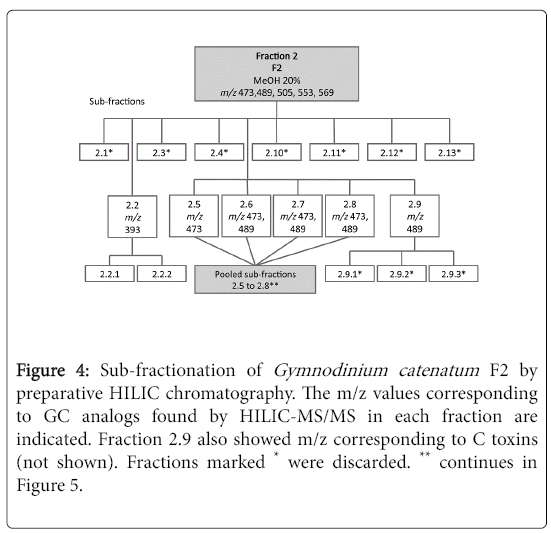

Figure 4: Sub-fractionation of Gymnodinium catenatum F2 by preparative HILIC chromatography. The m/z values corresponding to GC analogs found by HILIC-MS/MS in each fraction are indicated. Fraction 2.9 also showed m/z corresponding to C toxins (not shown). Fractions marked * were discarded. ** continues in Figure 5.

The main compound found in sub-fraction F2.9 exhibited m/z 489, corresponding to GC4/5 and GC1a/2a, but this component was mixed in the sub-fraction with the characteristic m/z of C1/2 toxins. A subsequent fractionation showed only m/z of C toxins, probably because the compound with m/z 489 was separated into several subfractions and was not detectable anymore. Sub-fractions 2.10, 2.11, 2.12 and 2.13 also yielded only m/z corresponding to C toxins, and were therefore discarded. The pooled sub-fractions (Ps-f) F2.5 to 2.8 (Figure 5) contained C1/2 toxins co-eluting with compounds of m/z 473, 489 and 533 that were not detectable in previous fractions probably due to their very low concentration.

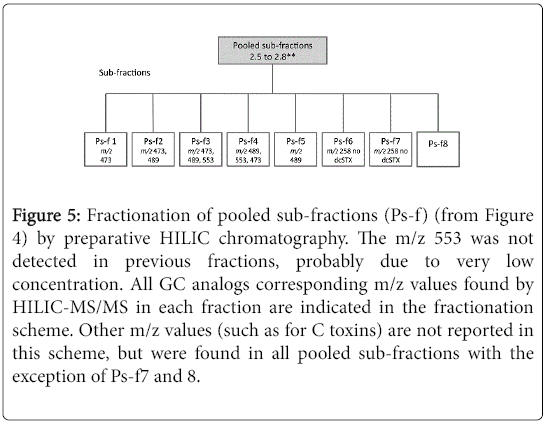

Figure 5: Fractionation of pooled sub-fractions (Ps-f) (from Figure 4) by preparative HILIC chromatography. The m/z 553 was not detected in previous fractions, probably due to very low concentration. All GC analogs corresponding m/z values found by HILIC-MS/MS in each fraction are indicated in the fractionation scheme. Other m/z values (such as for C toxins) are not reported in this scheme, but were found in all pooled sub-fractions with the exception of Ps-f7 and 8.

Fraction 3 (100% MeOH)

In F3 (100% MeOH), three other GC analogs, including GC3, were detected, but these were not present in F2. In F3 one peak with the transition m/z 377>257 and two peaks at transition 393>273 were detected (Table 6 and Figures 6 and 7); these m/z transitions also correspond to benzoyl analogs. Sub-fractionation in the initial preparative chromatography yielded putative GC3 toxin (m/z 377>257) in sub-fraction F3.3. Refractionation was successful in obtaining this “GC3 toxin” with higher purity, but given that the GC3 structure has been previously confirmed by 1H-NMR [16] this component was not subjected to further confirmation in our study. The two low abundant peaks at transition m/z 393>273 are consistent with the molecular masses of GC6 and GC3a. Significantly, at the retention time of the first peak (2.3 minutes) there is a peak at the transition 273>255. This transition is typical for dcNEO, but this analog elutes far later and thus cannot be responsible for this signal. On the other hand, the fragment of the transition of m/z is formed by the loss of the hydroxybenzoyl moiety from GC6 and the formed m/z 273 fragment can suffer a further water loss to yield m/z 255.

Fraction Weight (g) Yield (%)
Fraction 1 (F1, H2O) 1.185 53.2
Fraction 2 (F2, 20% MeOH) 0.088 4.0
Fraction 3 (F3, 100% MeOH) 0.017 0.8
Total yield
(three fractions)
1.29 58.0

Table 6: Fraction weight and yield.

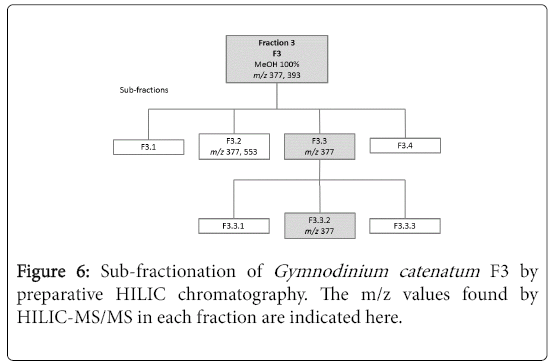

Figure 6: Sub-fractionation of Gymnodinium catenatum F3 by preparative HILIC chromatography. The m/z values found by HILIC-MS/MS in each fraction are indicated here.

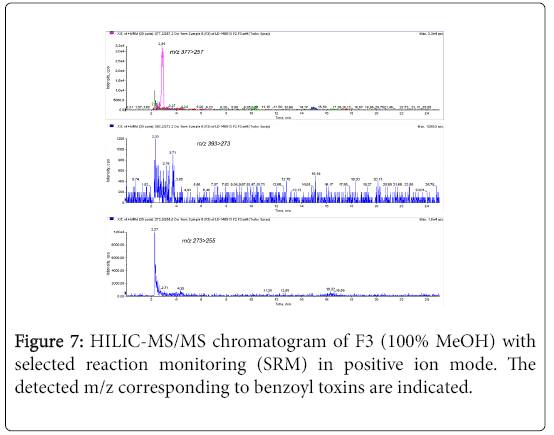

Figure 7: HILIC-MS/MS chromatogram of F3 (100% MeOH) with selected reaction monitoring (SRM) in positive ion mode. The detected m/z corresponding to benzoyl toxins are indicated.

This fragmentation pattern can only be observed for GC6 and not for GC3a, because GC3a is a dihydroxybenzoyl compound and thus generates a different primary fragment. Taken together, this evidence allows us to postulate that the first compound (at 2.3 minutes) at transition m/z 393>273 is GC6 and the later eluting analog (at 3.7 minutes) is GC3a. This is also consistent with the expected retention behavior of both compounds with the more polar dihydroxy compound GC3a having stronger interactions with the polar HILIC phase and accordingly eluting later than the less polar monohydroxy GC6.

1H-NMR spectroscopy

In order to discriminate among GC4/5 (N1-OH hydroxybenzoyl analogs) and GC1a/2a (di-hydroxybenzoyl) analogs, we performed 1H NMR spectroscopy on fractions 3 and 4 of the Ps-f (Ps-f3 and Ps-f4, Figure 5). Results from these analyses showed the nitrogen base coupled protons from 3.01 to 4.23 ppm in the aliphatic regions. This arrangement belongs to the six membered guanidine and pyrrolidine ring of the proposed tricyclic base structure (Figure 1). Protons of the aliphatic cyclopentyl ring were observed from 1.91 to 2.80 ppm. The protons of the aromatic region of the spectrum in Ps-f3 displayed the typical symmetrical pattern AA’BB’, centered at 7.9 ppm (J=6.82 Hz), corresponding to the para-substituted hydroxy-benzoyl ring (1- benzoyl-4-hydroxy derivative) [27] (Figure 8). According to the m/z in these sub-fractions, this pattern could only correspond to analogs GC4/5 (m/z 489), i.e., N1-OH hydroxybenzoyl analogs.

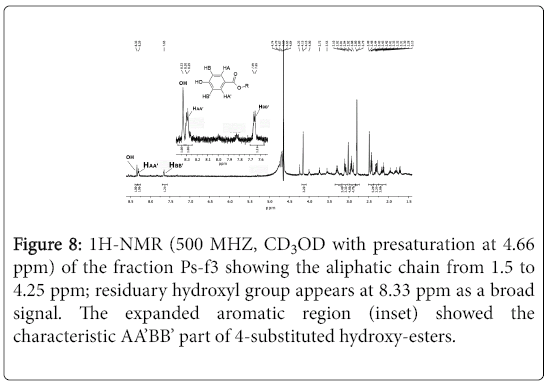

Figure 8: 1H-NMR (500 MHZ, CD3OD with presaturation at 4.66 ppm) of the fraction Ps-f3 showing the aliphatic chain from 1.5 to 4.25 ppm; residuary hydroxyl group appears at 8.33 ppm as a broad signal. The expanded aromatic region (inset) showed the characteristic AA’BB’ part of 4-substituted hydroxy-esters.

Di-hydroxylated benzoyl analogs, such as GC1a/2a, containing two hydroxyl moieties on the benzoyl ring, and/or GC4/5, containing one hydroxyl group on the benzoyl ring and a second hydroxyl on N-1, both with m/z 489, were found in sub-fraction Ps-f4. The 1H-NMR spectrum of this sub-fraction showed the same signals for the six membered guanidine and pyrrolidine ring detailed above. However, this sub-fraction displayed an AMX pattern for protons H-2, H-5 and H-6, corresponding to a 3,4-dihydroxy-benzoyl derivative GC1a/2a (δHA=8.48 ppm, d, J=2 Hz, δHB=8.29 ppm, d, J=2 Hz δHX=7.82 ppm, dd, J=2 Hz) mixed with the para-hydroxy-benzoyl derivative GC4/5 (Figure 9).

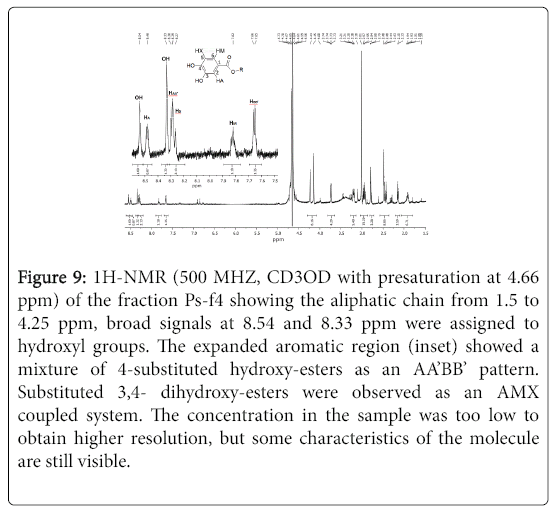

Figure 9: 1H-NMR (500 MHZ, CD3OD with presaturation at 4.66 ppm) of the fraction Ps-f4 showing the aliphatic chain from 1.5 to 4.25 ppm, broad signals at 8.54 and 8.33 ppm were assigned to hydroxyl groups. The expanded aromatic region (inset) showed a mixture of 4-substituted hydroxy-esters as an AA’BB’ pattern. Substituted 3,4- dihydroxy-esters were observed as an AMX coupled system. The concentration in the sample was too low to obtain higher resolution, but some characteristics of the molecule are still visible.


Polarity of GC toxins and chromatographic aspects of retention and identification of GC toxins

The GC toxins have been commonly considered as “hydrophobic analogs” due to the presence of the benzoyl side chain, but this terminology is clearly inaccurate because the chromatographic behavior of the benzoyl analogs reveals that they are as hydrophilic as many so-called “hydrophilic analogs”. A better grouping would be simply based upon structural consideration of their respective side chains, i.e., as carbamoyl, decarbamoyl, sulfocarbamoyl, or benzoyl analogs. The latter group can be further sub-divided into parahydroxybenzoyl, di-hydroxybenzoyl and sulfo-benzoyl analogs [20] (Figure 1).

Unequivocal identification of all mass-specific analogs in the fractions was not possible exclusively by mass spectrometry. One of the difficulties in determining the structures of the poorly characterized GC toxins by LC-MS/MS is that some analogs have the same mass-tocharge ratio (m/z) (e.g., GC4, GC5, GC1a, GC2a, all with m/z 489) (Table 2). These analogs contain the same substituent (hydroxyl or sulfate group, or both), but at different sites, e.g., hydroxyl group on N-1 or on the benzoyl ring and sulfate groups on C-11 or on the benzoyl ring. Nevertheless, we considered that the molecules with the sulfate group in α-position were the first to elute, as mentioned by Diener [25] and Dell’Aversano [26]. In such cases, structural identification must be supported by NMR, or at least by analysis of the molecular fragments obtained by tandem mass spectrometry, such as those reported by Vale [20].


Complete purification of the fraction components was not achieved because an analytical (rather than a semi-preparative) HILIC column was employed for the fractionation, requiring multiple 50 μL injections at each step. Chromatographic system inconsistencies and thermal variation among multiple runs may have caused slight changes in the retention times, thereby hampering the generation of more purified fractions.

Furthermore, in our earlier work and in previous studies of GCtoxins in unfractionated matrices (e.g., Vale [20]), 2 g C-18 silica cartridges were used for clean-up, typically yielding a 2:1 ratio of solid phase: sample volume. Although it is difficult to compare the amount of target analytes for purification in various fractions, the fractionation scheme whereby a relatively high amount (1.3 g) of crude extract was applied to 100 g C-18 silica column may have caused less specific separation and even breakthrough of toxin components due to excessive loading.

Evidence of column retention inconsistencies is apparent from the chromatogram of F3 (Figure 7) that showed two ion masses, one corresponding to GC3 (m/z 377) and one corresponding to GC6 and/or GC3a (m/z 393), but after the first preparative fractionation, the latter peak was no longer detected. The GC3 analog has been previously reported by LC-FLD analysis of fractions obtained with MeOH concentrations <100% [16,19-22,28], but most of this toxin is probably lost during the clean-up stage in the 100% MeOH rinse after elution through the C-18 solid-phase extraction cartridges.

Although it was not possible to obtain pure GC toxin analogs, the purity was high enough to allow confirmation of the di-hydroxylated benzoyl derivatives [29]. The chemical shifts and coupling constants from 1H-NMR, suggesting a 1-carboxy-3,4-dihydroxy substitution, leads to a putative corrected structure for the GCa series of analogs (GC1a-GC6a), and provides grounds for rejection of the previous 3-5 dihydroxy-benzoyl moiety, as proposed by Vale [20].


These results confirm the presence of 15 GC analogs from among the 18 theoretical analogs previously reported from the dinoflagellate Gymnodinium catenatum [20]. Combining HILIC LC-MS/MS with 1H-NMR analysis represents a significant advance over previous nonconfirmatory analysis by LC-FLD and LC-MS for the structural elucidation and confirmation of unknown and poorly characterized GC-toxins in various matrices. The lack of sufficient pure GC toxins for analytical calibration standards for liquid chromatography with either fluorescence or mass spectrometric detection and to perform specific toxicity tests (in vivo or in vitro ) on purified toxins could be addressed by advanced preparative chromatography approaches. For example, the application of crude fractions to a preparative HILIC column would improve yield and reduce inconsistencies in fractionation due to consecutive multiple injections upon an analytical column.

Our study focused only on a few selected cultured strains from the Gulf of California and Pacific coast of Mexico, thereby highlighting the need for toxin diversity studies from other geographical locations. Application of HILIC-MS/MS provides the opportunity to explore genetic variation among populations of Gymnodinium catenatum that include a GC-toxin component within their toxin profiles. Our current chromatographic approach coupled with tandem mass spectrometry and proton NMR spectral analysis of the GC-toxins contributes to the scarce structural information about these benzoyl analogs from Gymnodinium catenatum . To our knowledge, this work represents the first confirmation and at least partial structural elucidation of 15 GC analogs from this marine dinoflagellate.


We thank the German Academic Exchange Service (DAAD) for the research scholarship awarded to LMDR in Germany. LMDR was a recipient of a doctoral fellowship (CONACYT 65354; BEIFI-IPN); CJBS is an EDI and COFAA recipient. This work was partially financed by the Helmholtz-Gemeinschaft Deutscher Forschungszentren through the research program PACES of the Alfred Wegener Institut- Helmholtz Zentrum für Polar-und Meeresforschung, Germany, and Mexican sources (Project SIP 2016-1180, CYTED grant 214RT0482, and CIBNOR grant PC0.10 and PC0.11). The technical assistance of Annegret Müller at AWI is greatly appreciated. We thank Dr. Matthias Köck and Dr. Jan Tebben (AWI) for help in interpretation of the NMR spectra as presented. We thank CODIMAR for providing Gymnodinium catenatum strain GCCV-7 and M.C. Rodríguez Palacio, Universidad Autónoma Metropolitana, Mexico for providing the strain 62L. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results. We dedicate this work to the memory of our co-author Dr. Javier Peralta Cruz, beloved friend, kind chemistry professor and unforgettable colleague, who died unexpectedly just after the completion of this work. We miss you and your many contributions.

Author Contribution

LMDR performed the experiments, analyzed the data and wrote the paper; BK and JPC conceived and designed the experiments, and analyzed the data; AC provided laboratory support and contributed to integration of the results and writing the paper; JBG reviewed the results; CBS contributed materials and reviewed the paper.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.
