Natural Products Chemistry & Research

ISSN - 2329-6836

Research Article - (2017) Volume 5, Issue 6

Isolation of Urosilic Acid from Knoxia corymbosa

Mrutyunjaya Rao R1*, Ramakrishna K1, Suresh Babu K2 and Surya Kumar MV1
1Department of Chemistry, VSM College, Ramachandrapuram, East Godavari District, Andhra Pradesh, India
2Indian Institute of Chemical Technology, Hyderabad, Telangana, India
*Corresponding Author: Mrutyunjaya Rao R, Department of Chemistry, VSM College, Ramachandrapuram, East Godavari District, Andhra Pradesh, India, Tel: 08985769830 Email:


Air-dried, milled leaves of Knoxia corymbosa (220 gm) were extracted repeatedly with dichloromethane. After removal of solvent in vacuo, the CH2Cl2-solvent residue was fractionated by using hexane and ethyl acetate solvents. After fractionation, all fractions are submitted for NMR spectroscopy. Out of all fractions interesting fractions are subjected to column chromatography, so that we isolated one pure compound as Ursolic acid which is a known compound as it is characterized by using reference data. This is the first time to be isolated the above compound from this species. Ursolic acid is a five-membered cyclic triterpenoid compound. A structure of the isolated compound has been assigned on the basis of their analytical data. By surveying the literature, we came to understand that the compound ursolic acid is a cyclic five-member triterpenoid first to be isolated from Knoxia corymbosa. And also, it is first time to isolate the above compound from this species Knoxia corymbosa.

Keywords: Knoxia corymbosa ; CH2Cl2; Ursolic acid; Column chromatography; Spectroscopy


Pharmacological activities of plants and plant derived drugs necessitate for the search of new and useful drugs globally. India is the largest producer of medicinal herbs. These values are shown vast and tremendous biodiversity potential in India, which can be utilized in drug industry. Knoxia corymbosa is assumed to containing some medicinal values [1-6] because girijans of the forest area are using for fevers and skin diseases. Some authors reported that they isolated some chromone glycosides [7-9] from Knoxia corymbosa . Knoxia species reported to contain herbal medicine, β-sitosterol which is one of its main components was isolated. β-sitosterol is known to control cholesterol levels, reduce the activity of cancer cell, promote prostate gland health enhance immunity in the human body. The plants of family Rubiacea is an important source of medicinal natural products, particularly alkaloids and triterpenes, quinovic acid glycosides, flavonoids and coumarins have been isolated from this family. Pharmacological studies are described according to cytotoxicity, antiinflammatory, antiviral, immune stimulation, antioxidant, CNS-related response, vascular, hypertensive, mutagenicity and antibacterial properties. The compounds obtained from this family are used as immunomodulatory, anti-inflammatory and vascular-related conditions. The information summarized here is intended to serve as a reference tool to practitioners in the fields of ethno pharmacology and natural products chemistry.

Various natural products occur in Rubiaceae plants. Extensive phytochemical investigation has been realized regarding the natural occurrence of triterpenoids [10-16], anthraquinones and indole alkaloids [17-20] in the family. Rubiaceae family plants exhibited antimalarial, antimicrobial, antihypertension, antidiabetic, antioxidant, and anti-inflammatory activities. Bioactive compounds including indole alkaloids, terpenoids, anthraquinones and anti-tumors have been isolated from these plants.

Materials and Methods

220 gms of shade dried powder leaves of Knoxia corymbosa were filled in the thimble and extracted successively with n-hexane, dichloromethane, ethyl acetate and methanol solvents in soxhlet extractor for 48 hours intervals. The solvent extracts were concentrated under pressure and preserved at 40ºC in an airtight bottle for further use. After fractionation, all fractions are submitted to NMR Spectroscopy. Out of all fractions dichloromethane fraction is subjected to column chromatography. By thin layer chromatography (TLC) method Dichloromethane extract seems to be containing more compounds. So, the extract from dichloromethane is subjected to column chromatography with n-hexane and ethyl acetate solvents. The purity of fractions was tested with the help of TLC.

Out of all fractions, the fractions having similar Rf values were combined together and isolated three samples. The obtained samples were submitted to UV, IR, NMR and Mass Spectroscopy. The obtained data is compared with reference data and confirmed that, out of three samples one sample i.e., sample-3 (sample-1 and sample-2 are not pure so rejected). seems to be pure one and confirmed the structure. The obtained data is compared with reference data and confirmed the structures and the compound is identified and confirmed as ursolic acid (Figure 1).

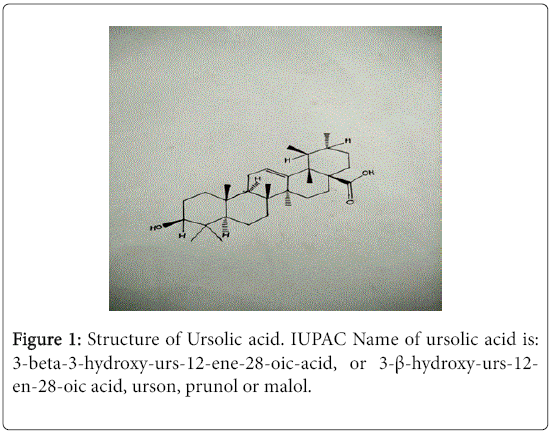

Figure 1: Structure of Ursolic acid. IUPAC Name of ursolic acid is: 3-beta-3-hydroxy-urs-12-ene-28-oic-acid, or 3-β-hydroxy-urs-12- en-28-oic acid, urson, prunol or malol.

Spectral data of Knoxia corymbosa

UV spectral data is at 474, 442 and 422.

FT-IR KB Absorption bands assigned to the compound are C-O stretching is (1036.04 cm-1) olefinic system (C=C) (1458.48 cm-1 and 2860.52 cm-1), carboxylic acid stretching is (2928.24 cm-1), carbonyl system (1690.38 cm-1), and hydroxyl group (3444.99 cm-1).

1H NMR: (400 MHz, CD3OD): δH=0.728 (3H, s, CH3, H-27), 0.768 (3H, s, CH3, 25), 0.884 (3H, CH3 H-30), 1.05 (3H, S, CH3, H-26), 0.965(3H, d, CH3, H-29), 1.28 (3H, S, CH3, H-23), 1.106 (3H, s, CH3, H-24), 1.352-2.025 (13H, m, [1, 2, 5-7, 9, 11, 15, 16,19-22]), 2.178 (1H, d, H-18), 3.303 (1H, d, H-3) and 5.217(1H, m, olelifinic proton, H-12).

13C NMR: (400 MHz, CD3OD): δC=38.14 (C-1), 27.88 (C-2), 79.69 (C-3), 38.14 (C-4), 54.40 (C-5), 17.83 (C-6), 31.8 (C-7), 39.83 (C-8), 48.14 (C-9), 34.33 (C-10), 21.60 (C-11), 126.80 (C-12), 139.71 (C-13), 40.76 (C-14), 28.7 (C-15), 24.08 (C-16), 43.24 (C-17), 54.40 (C-18), 39.83 (C-19), 39.99 (C-20), 30.76 (C-21), 34.33 (C-22), 27.88 (C-23), 16.06 (C-24), 16.38 (C-25), 17.66 (C-26), 24.08 (C-27), 181.98 (C-28), 17.83 (C-29), 21.60 (C-30).

Mass spectrum: C30H48O3; Molecular weight-456.5 (m/z 457 (M+), 389, 300, 248, 207, 203, 189, 147, 133, 119, 105, 44).

Results and Discussion

Dichloromethane extract to column chromatography with n-hexane and ethyl acetate as eluting solvent mixture and obtained 198 fractions. One pure compound obtained from fractions of 159 to 176. The fractions are subject to thin layer chromatography TLC. The fractions having same Rf values are combined together [21-23]. The sample sent to IICT Hyderabad for spectral data. The data obtained is compared with the existing data and concluded the results and con irmed the structure and name of the is confirmed.

Modern man is confronted with increasing incidences of cancer and cancer deaths annually. Statistics indicate that men are largely plagued by lung, colon, rectal and prostate cancer, while women increasingly suffer from breast, colon, rectal, and stomach cancer [24]. The literature indicates that many natural products are available as chemo protective agents against commonly occurring cancer types [25]. Species of Rubiaceae as well as their isolated compounds possess diverse biological activities, including anti-inflammatory, antitumor, antimicrobial, larvicidal, antioxidant, gastrointestinal, anti-ulcer, and hepato protective, with alkaloids and iridoids as the major active principles. Crude leaf extracts of Knoxia corymbosa is proved to having antibacterial and antifungal activity [26].


Ursolic acid is the important constituent of leaves of Knoxia corymbosa which are proved to be having very effective medicinal value. Researches proved that ursolic acid having potency of curing tumors and killing cancer cells, induces eryptosis, reduces muscle atrophy, shows potential cardio protection, induces neural regeneration after sciatic nerve injury, liver disorders etc., So, it is necessary to do much more work on the above plant as the above mentioned diseases are challenging to the health sciences. Utilization of natural products as drugs is not only good for human health but also no side effects. In fact, plants produce a diverse range of bioactive molecules, making them a rich source of different types of medicines. Plants with possible antibacterial activities should be tested against an appropriate microbial model to confirm the activity and to ascertain the parameters associated with it.


The authors (Dr. R. Mrutyunjaya Rao and K. Ramakrishna) are grateful to University Grants Commission, New Delhi for the award of Major Research Project. And also to Dr. K. Suresh Babu who assisted me in structural elucidation and identification of the compound.


  1. Kirtikar KR, Basu BD (1987) Indian medicinal plants, International book distributors, Dehradun, India, 3: 2128-2129.
  2. CSIR (1989) The Wealth of India: A Dictionary of Indian Raw Materials and Industrial products. Council of Scientific and Industrial Research, New Delhi, 8: 96-99.
  3. Abbas Ali M, Mahabbub Alam N, Yeasmin S, Mohal Khan A, Abu Sayeed M (2007) Antimicrobial Screening of Different Extracts of Piper longum Linn. Res J of Agricul and Biol Sci 3: 852-857.
  4. Kirtikar KR, Basu BD (1993) Indian Medicinal Plants, (2nd ed), Dehradun: International Book Publisher, p: 641.
  5. Herborn JB (1973) Phytochemical methods-A Guide to Modern Techniques of Plant Analysis,(2nd ed), Hall, New York, pp: 5-11.
  6. Das S, Bhattacharya AK (1969) Chemical investigations on Knoxia corymbosa. J Indian Chem Soc 1: 301-302.
  7. Wang YB, Pu JX, Ren HY (2003) New acetylated flavonolglycosides from Knoxia corymbosa. Chinese Chem Lett 14: 1268-1270.
  8. Wang YB, Zhao JF, Li GP, Yang JH, Li L (2004) Studies on the chemical constituents of Knoxia corymbosa. Acta pharmaceuticaSinica 39: 439-441.
  9. Ye JC, Chang WC, Hsieh DJ, Hsiao MW (2010) Extraction and analysis of-sitosterol in herbal medicines. J of Med Plants Res 4: 522-527.
  10. Zhao F, Zhao S, Han JT, Wang YF, Wang YN, et al. (2015) Antiviral anthraquinones from the roots of Knoxia valerianoides. Phytochem Lett 11: 57-60.
  11. Huang PL, Wang LW, Lin CN (1990) New triterpenoids of Mallotusrepandus. J Nat Prod 62:  891-892.
  12. Sun HX, Zhang JX, Ye YP, Shen YA (2003) Cytotoxic pentacyclic triterpenoids from therhizome of Astilbechinensis. Helv Chim Acta 86: 2414-2423.
  13. Song QY, Qi WY, Li ZM, Zhao J, Chen JJ, et al. (2011) Antifungal activities of triterpenoids from the roots of Astilbemyriantha Diels. Food chem 128: 495-499.
  14. Calabria LM, Piacente S, Kapusta I, Dharmawardhane SF, Segarra FM, et al. (2008) Triterpene saponins from Silphium radula. Phytochem 69: 961-972.
  15. Song YL, Wang YH, Lu Q, Qiao HJ, Cheng YX (2008) Triterpenoids from the edible leaves of Photiniaserrulata. Helv Chim Acta91: 665-672.
  16. Chan WR, Sheppard V, Medford KA, Tinto WF, Reynolds WF, et al. (1992) Triterpenes from Miconiastenostachya. J of Natur Prod 55:963-966.
  17. Singh DN, Verma N, Raghuwanshi S, Shukla PK, Kulshreshtha DK (2006) Antifungal anthraquinones from Saprosmafragrans. Bioorg and Medic Chem Lett 16: 4512-4514.
  18. Ling SK, Komorita A, Tanaka T, Fujioka T, Mihashi K, et al. (2002) Iridoids and anthraquinones from the Malaysian medicinal plant, Saprosmascortechinii (Rubiaceae). Chem and Pharma Bulle 50: 1035-1040.
  19. Singh DN, Verma N (2012) Iridoidglucosides and anthraquinone from the aerial parts of Saprosmafragrans. J Ind Chem Soc 89: 429-431.
  20. Wang L, Chen GY, Han CR, Yuan Y, Yang B, et al. (2011) Two novel alkaloids from the stem of Saprosmahainanense and their cytotoxic activities in vitro. Chem and Pharma Bulle59:338-340.
  21. Dai CY, Yang B, Zhang DS, Chen GY, Han CR (2012) Antitumor activities of extracts from Trigonostemonxy phophylloides and Saprosmamerrillii. J Hainan Normal Univ (Nat Sci) 25: 184-187.
  22. Wang Q, Lin HW, Shen Y, Jin CY (2000) Ankesu capsule of antitumor effect. J Hainan Normal Univ (Nat Sci) 23: 634-636.
  23. Abdulla M, Gruber P (2000) Role of diet modification in cancer prevention. Biofactors 12: 45-51.
  24. Reddy L, Odhav B, Bhoola KD (2003) Natural products for cancer prevention: a global perspective. Pharmacol and Therapeu 99: 1-3.
  25. Conserva LM, Jesu Costa Ferreira J (2012) Borreria and Spermacoce species (Rubiaceae): A review of their ethnomedicinal properties, chemical constituents, and biological activities. Pharmacog Rev 6: 46.
  26. Mrutyunjaya Rao R, Ramakrishna K, Pavanee Mounika K, Ravikumar M, Murthy MVS, et al. (2017) Antibacterial and Antifungal Activity of Organic Solvent Extracts Of Knoxia Corymbosa.  IOSR J of Pharm and Biol Sci 12: 01-04.
